3 Inch Agricultural Irrigation Gasoline Water Pump

Date:2015-05-19 Label：

Gasoline Irrigation Pump

1) Engine: Honda GX160 2) Engine type: 4-stroke, OHV, single cylinder 3) Starting system: Recoil start 4) Displacement: 163CC

Details of 3 Inch Agricultural Irrigation Gasoline Water Pump

Water pump (WP30)
1) Engine: Honda GX160
2) Engine type: 4-stroke, OHV, single cylinder
3) Starting system: Recoil start
4) Displacement: 163CC
5) Rated output: 4.0KW/3600rmp
6) Suction/Discharge Dia.: 80mm/80mm
7) Max. Lift: 28m
8) Max. Suction: 8m
9) Max. Flow/Efficiency: 66000L/h
10) Suction time: 120s/5mm
11) Fuel tank capacity: 2L.

Parameters of 3 Inch Agricultural Irrigation Gasoline Water Pump

Model		WP20	WP30	WP40
gasoline Water pump	Suction/Discharge Dia. (mm)	50mm/50mm	80mm/80mm	100mm/100mm
	Max. Lift (m)	28m	28m	29m
	Max. Suction (m)	8
	Max. Flow/Efficiency (m³/h)	36	66	108
	Rev (rpm)	3600
	Suction time	90s/5mm	120s/5mm	50s/5mm
Engine	Model	GX160		GX270
	Rated output (kw/rmp)	4.0/3600	4.0/3600	5.9/3600
	Ignition system	Transistor Ignition
	Output shaft direction	Counter-clockwise (from output pin)
	Idle speed	1440
	fuel tank capacity (L)	2L		6L
Dim&N.W.	N.W. (kg)	22	28	47
Dim&N.W.	Length x width x height (mm)	471x380x375	490x385x460	610x425x565

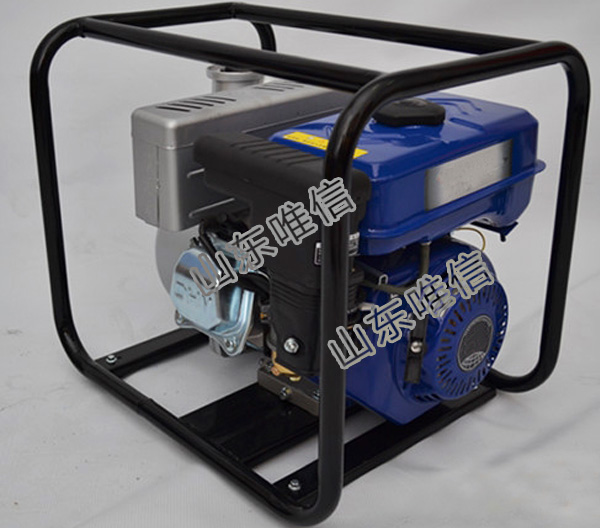

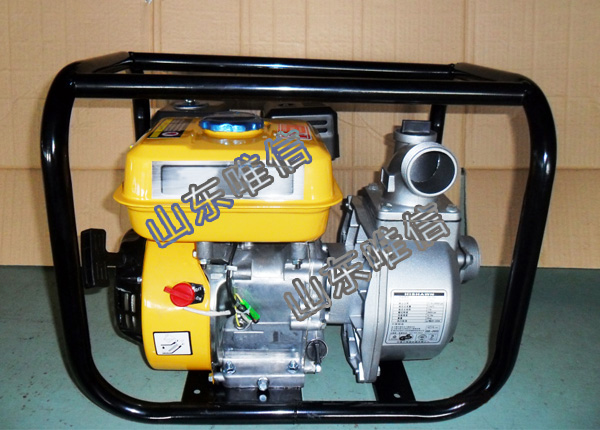

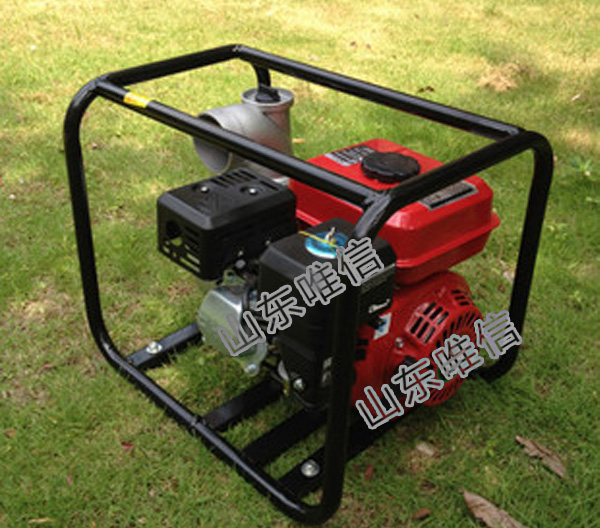

Photos of 3 Inch Agricultural Irrigation Gasoline Water Pump

3 Inch Agricultural Irrigation Gasoline Water Pump
