FH-8Z-5 Agricultural UAV Drone

FH-8Z-5 Agricultural UAV Drone

Date:2015-04-16     Label:

Agricultural UAV Drone

Agricultural Drone

FH-8Z-5 Agricultural UAV Drone is composed of 2 parts, aircraft platform and control aircraft flight computer system(also known as flight control).

Contact Us Product Center

Introduction of FH-8Z-5 Agricultural UAV Drone

FH-8Z-5 Agricultural UAV Drone is composed of 2 parts, aircraft platform and control aircraft flight computer system(also known as flight control). Electromechanical integration platform and flight control system are a community.If the plane platform is a body, flight control is the soul of the aircraft platform. Like computer, all equipped have OS operating system.

Parameter of FH-8Z-5 Agricultural UAV Drone

Specification

Model:FH-8Z-5

Size(L*W*H)

1150*1150*500mm

Aircraft folding size

435*435*500mm

Aircraft weight

7kg

Maximum takeoff weight

14kg

Aircraft pesticide load

5kg

Propeller

15 inch carbon fiber plant protection special propeller

Spraying task system

1 sets of kit, dispersion spray system, booster pump

Remote control

2.4G Nine channel

Power battery

High performance lithium polymer lithium battery (22.2V/16000mA)

charger

High power lithium battery balance charging equipment

(can charge 2 pcs at the same time, half an hour full)

UAV self stabilization system

yes

Spraying system

Diffuse atomization nozzle (a group of *6)

Motor speed

1200rpm/min

Aircraft endurance time

10~15min

Spraying height

Field operation 0-200 M

Spraying area

4 meters

Control efficiency

1~3 acre/min

Spray flow

0.25-0.75L/min(multi nozzle) adjustable

Flying speed

0 -8meter/second(can be adjusted according to needed speed)

Flying height

0~200meter

Hover

Arbitrary position direction air hover

Flight attitude

Flying in any direction, can be reversed to fly, emergency brake

Takeoff / landing time

≤1minute

Body material

Carbon fiber

Temperature range

-15℃~40℃

Battery power performance

charge-discharge 300-500 times

Rack life

≥5 years

Maximum efficiency

200-300acre/day

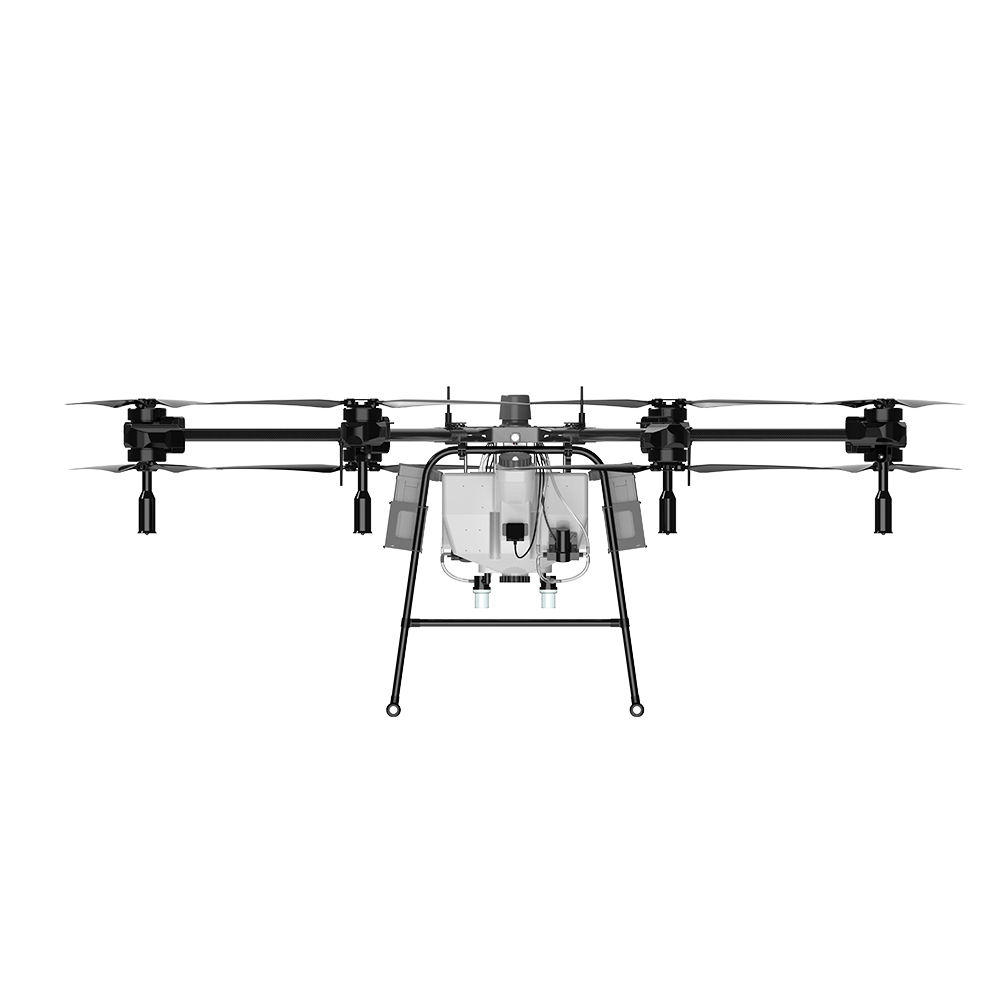

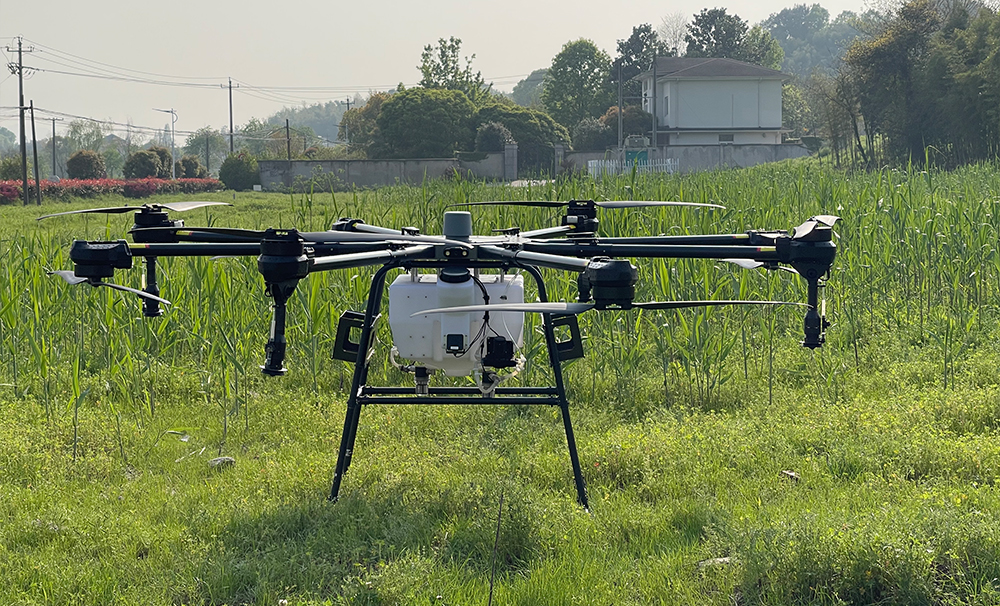

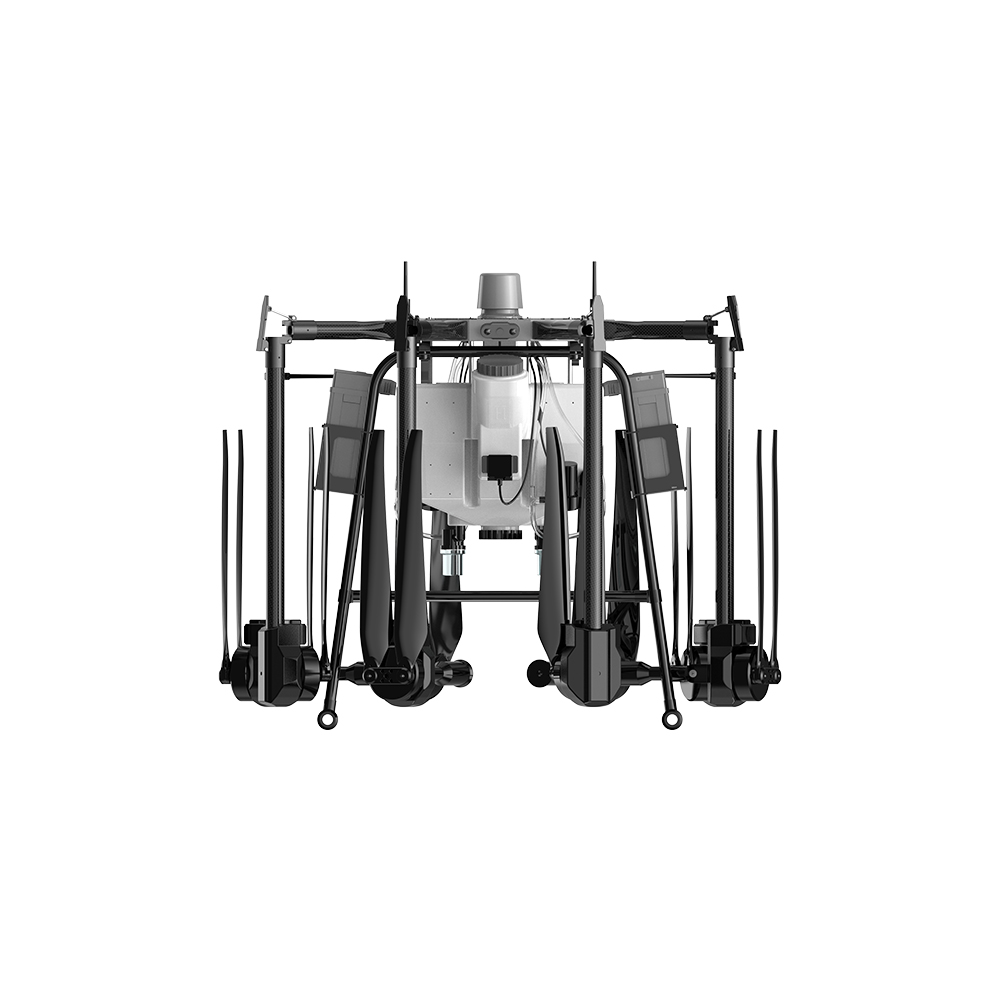

Pictures of FH-8Z-5 Agricultural UAV Drone

FH-8Z-5 Agricultural UAV Drone


FH-8Z-5 Agricultural UAV Drone


FH-8Z-5 Agricultural UAV Drone

PHOTOS OF

FH-8Z-5 Agricultural UAV Drone
