WQ(D) submersible sewage pump is composed of motor,water pump and sealling part.The water pump has channel impeller-volute structure,and it is under the single or three phase asychronous motor. Mechan
Contact Us Product Center

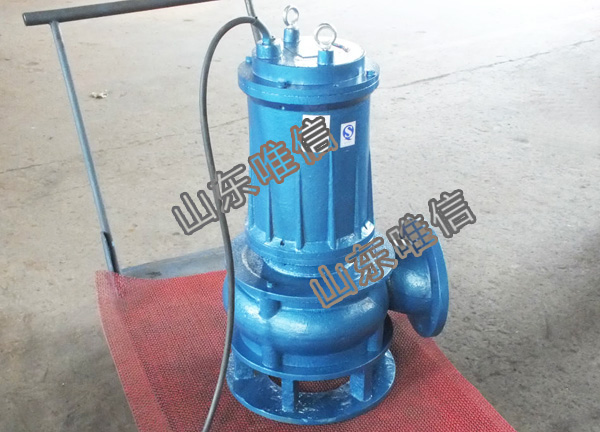

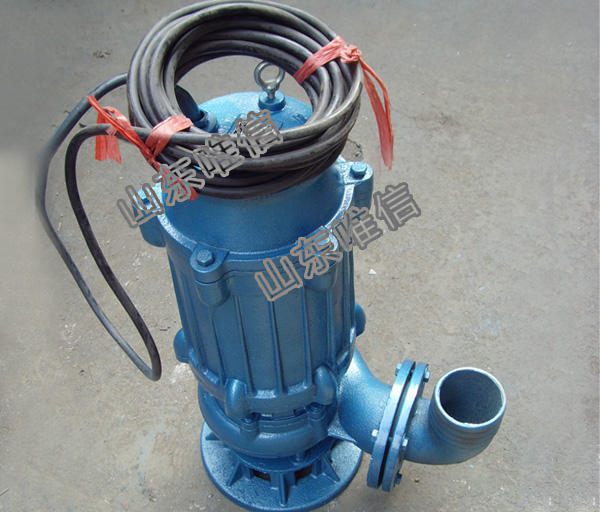

WQ(D) submersible sewage pump is composed of motor,water pump and sealling part.The water pump has channel impeller-volute structure,and it is under the single or three phase asychronous motor.
Mechanical seal is used as the motive seal between motor and water pump, as oil resisting rubber O ring works as the static seal for the rabbet. Thus,the reliability of our machine is ensured. Meanwhile, the rotor shaft is made of stainless steel, so reliable mechanical strength of the shaft is obtained,and the abrasion resistance and corrosion resistance of the shaft are both improved. Also, it facilitates he disassembly and maintenance of impeller.
1. Be able to work normally and continually if the following requirements are met.
2. Medium temperature:Not over +40°C
3. PH range of medium:4-10
4. Max. density of medium:1.2x103kg/m3
5.Viktage fkyctyatuib rabge:10% of rated voltage
6.Submersion depth:≤ 5 meters
| Model | Power |
Inlet (inch) |
Max.Flow (m³/h) |
H.Max (m) |
Packing Size (mm) |
G.W(kg) | |
| (kw) | (hp) | ||||||
|
WQD6-12 |
0.55 |
0.75 | 51 | 16 | 14 | 470-250*250 | 20.5/19 |
| WQD6-16 |
0.75 |
1.0 | 51 | 22 | 17.5 | 470*250*250 | 22.5/21 |
| WQD10-10 | 0.75 | 1.0 | 64 | 16 | 16 | 520*210*275 | 29/25 |
| WQD15-9 | 1.1 |
1.5 |
51 | 24 | 14.5 | 540*240*280 | 32/29 |
| WQD7-15 | 1.1 | 1.5 | 51 | 22 | 18 | 540*240*280 | 31/28 |
