ZM410 10L Multi-Axis Plant Protection Drone

ZM410 10L Multi-Axis Plant Protection Drone

[ZM410 10L Multi-Axis Plant Protection Drone Tags]

Agriculture UAV Drone uav drone drone uav

[ZM410 10L Multi-Axis Plant Protection Drone Quick Detail]

It is equipped with plant protection flight control and agricultural intelligent data processing platform, as well as dual pump accurate metering spray system, combined with FPV, obstacle avoidance an
ZM410 10L Multi-Axis Plant Protection Drone

[ZM410 10L Multi-Axis Plant Protection Drone Introduction]

ZM410 10L Multi-Axis Plant Protection Drone Introduction:

It is equipped with plant protection flight control and agricultural intelligent data processing platform, as well as dual pump accurate metering spray system, combined with FPV, obstacle avoidance and other auxiliary operating systems, can achieve accurate plant protection operations, making plant protection operations simple and safe. Based on the second-generation flight control technology architecture, the new TiA series flight control system is safe and reliable, optimized for the plant protection industry, improves work efficiency, and realizes intelligent operation of drone plant protection.

ZM410 10L Multi-Axis Plant Protection Drone Advantage:

1. Accurate spraying to avoid heavy leakage

The new spraying system: double pump independent control system, according to the flight speed, work together to further expand the flow interval to ensure uniformity of spraying; with high-precision flowmeter, it can achieve accurate mu dosage, statistical error 5%.

2, the perception of obstacles

During flight, the plant protection machine can sense the obstacle's azimuth and distance through the real-time scanning of obstacle avoidance in the front and rear direction; when the obstacle enters the warning area, the aircraft will automatically stop and record the interruption coordinate point. By controlling the plant protection machine to bypass the obstacles in the front, rear, left and right directions by the lever, it can automatically return to the planned projection point of the route and continue the operation.

3, intelligent scanning, accurate imitation

The distance between the plant protection machine and the vegetation to be applied is sensed in real time, and the control system is continuously adjusted to ensure that the distance between the plant protection machine and the vegetation remains unchanged, and the uniformity of spraying is ensured. Depending on the actual application environment, the sensitivity can be adjusted to suit most crops and topography.

4, multiple modes free switching

Users can set flight and operation parameters according to actual operation requirements. The plant protection machine can automatically complete route planning and provide users with four operation modes: AB point operation, area planning operation, semi-automatic operation or manual operation to meet different environmental operation requirements.

5, safe and reliable, reliable operation

Electronic control system upgrade, dual backup configuration, industrial grade calibration, built-in shock absorption structure to improve the safety of plant protection operations. The plant protection platform made of high-strength carbon fiber has a lightweight and sturdy body structure. Enclosed folding design saves space and facilitates transition.

6, intelligent management, convenient and efficient

Automatically plan flight routes, take off at the touch of a button, return to land with one button, voice broadcast, and intelligent assistants to enhance the control experience.

Intelligent spray setting, accurate calculation of work area, automatic generation of job reports, accurate spraying of high-efficiency medication. Aircraft management, operations team management, task management, and teamwork improve operational efficiency.

7, centimeter-level positioning, accurate orientation

The plant protection drone is equipped with an RTK system for high-precision flight and centimeter-accurate positioning. At the same time, it is equipped with dual antenna configuration for accurate flight control, without fear of magnetic compass interference.

ZM410 10L Multi-Axis Plant Protection Drone Technical Parameters:

ZM410 Plant Protection Drone Basic Parameters


Wheelbase

1495mm (four axes)

Dimensions  Expand:

1152*1152*630mm

Folding:

666.4*666.4*630mm

Spray width

4 ~ 6m (depending on different crops)

Medicine box capacity

10.5L

Operating efficiency

80 acres / hour

Machine weight

11.6kg (without battery)

Maximum effective takeoff weight

26kg

Power battery

12S 14000mAh

Nozzle type

High pressure fan nozzle

Atomized particles

130~250 μm (XR11001VS)

ZM410 Plant Protection Drone Flight Parameters


Hover time

18min (no load)/10min (full load)

Working height

1.5m ~ 3.5m

Large flight angle

25° (attitude mode)

Large flight speed

10m/s (GPS mode)

Horizontal positioning accuracy

Horizontal± 1.0m Vertical ± 0.5m

Level ± 10cm Vertical ±10cm (using RTK)

Vertical ±0.1m (with radar enabled)

Imitation ground radar ranging accuracy

0.02m

Setting range

1 ~ 10m

Obstacle avoidance range

2 ~ 20m

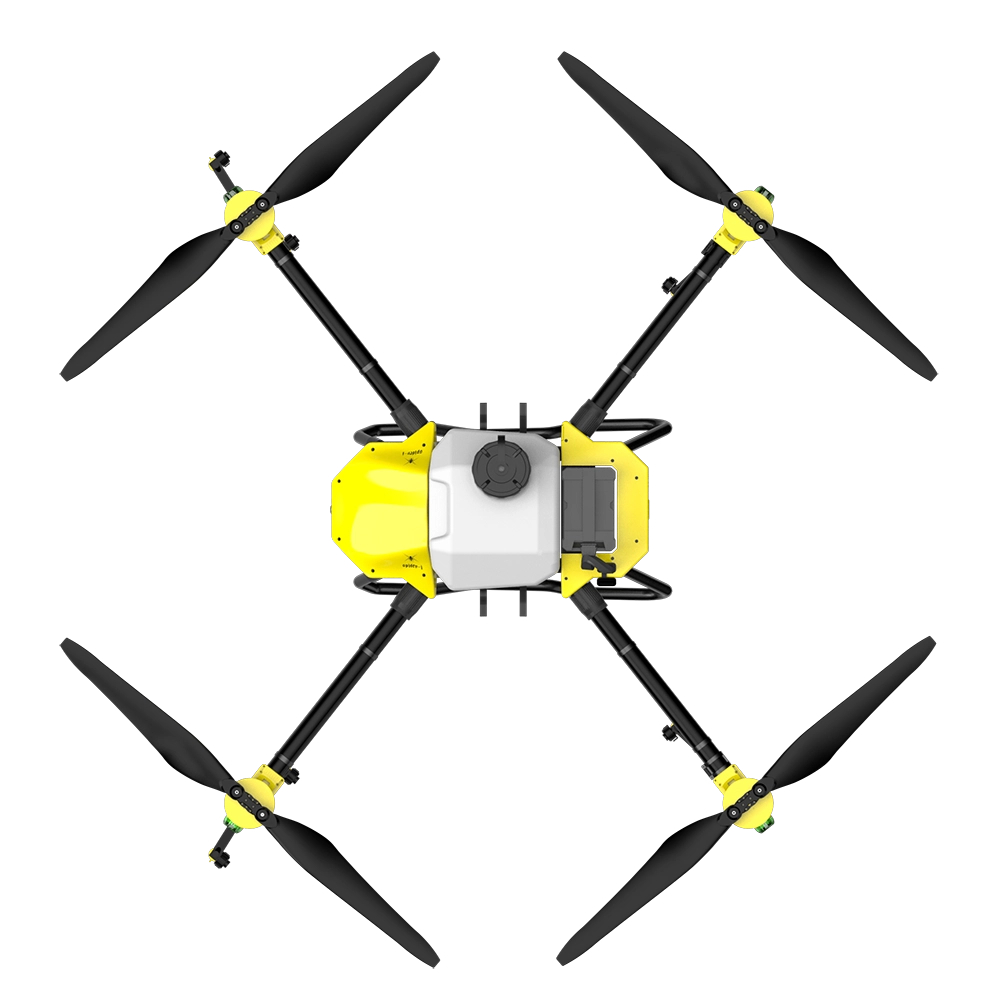

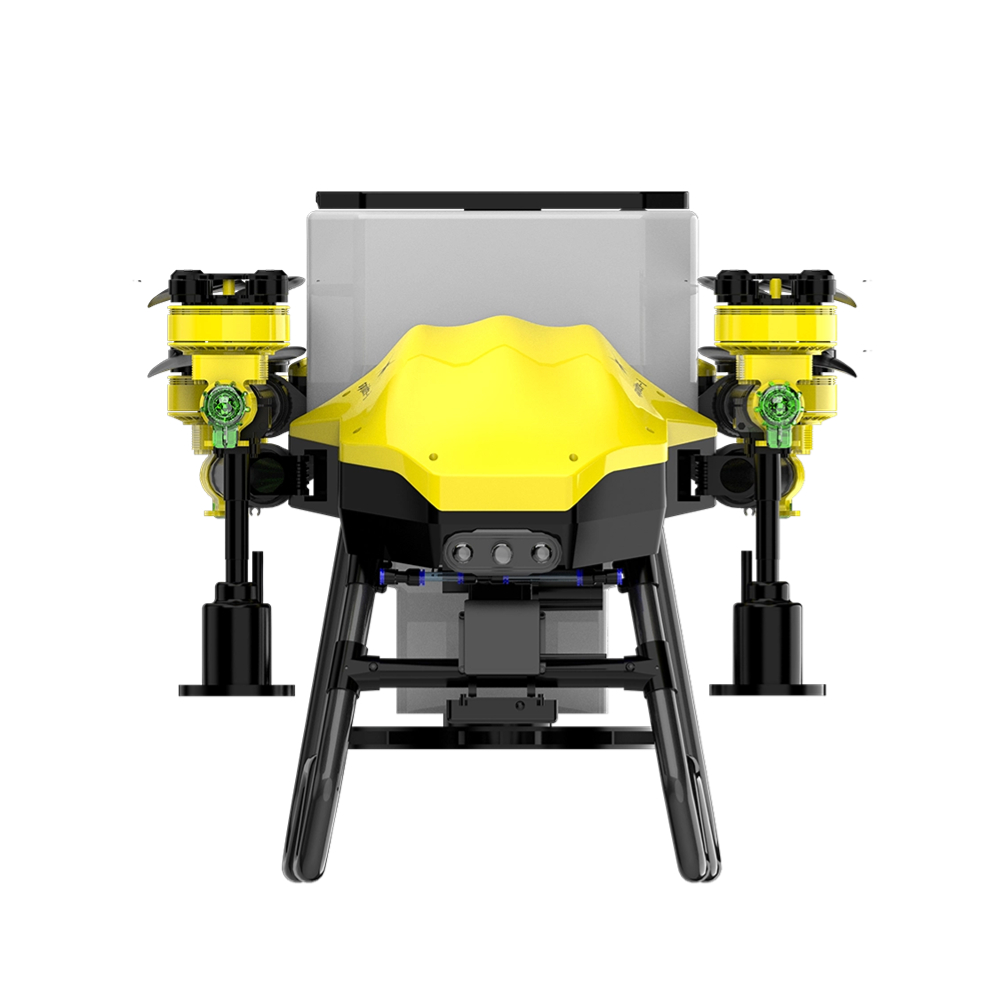

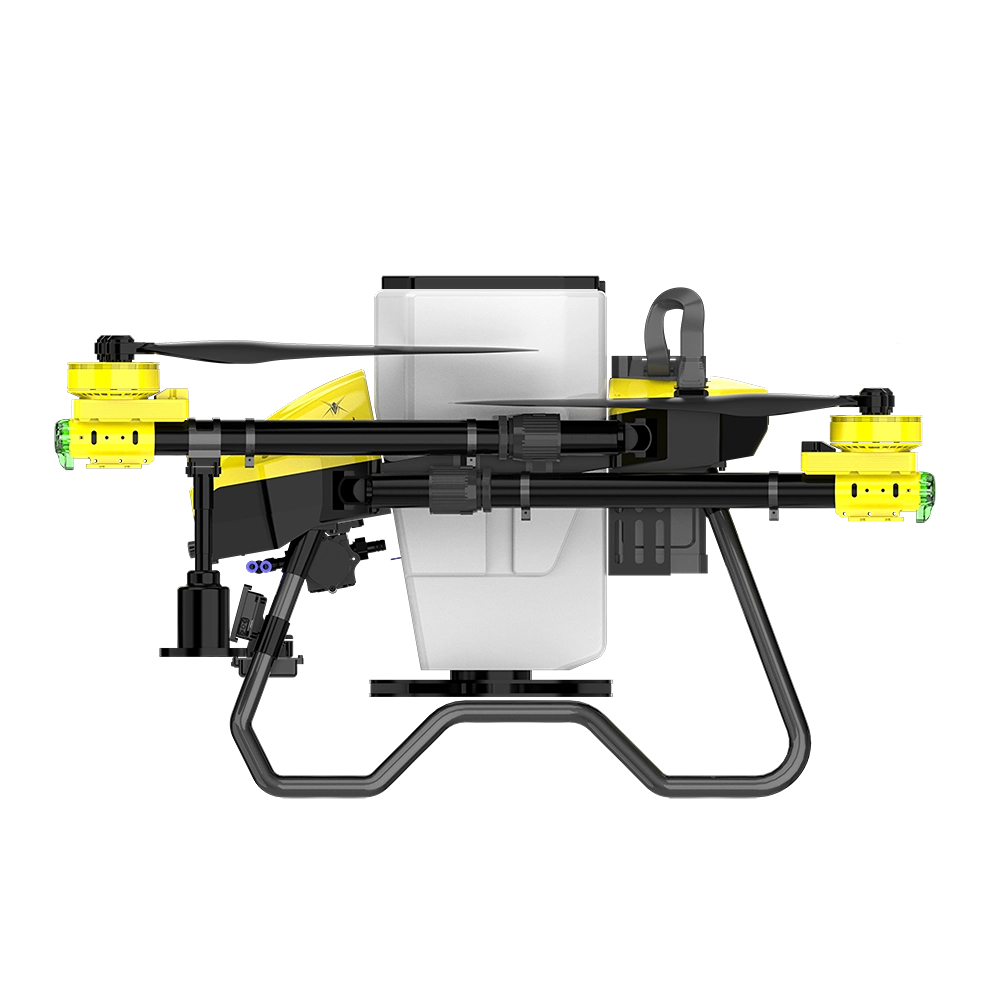

ZM410 10L Multi-Axis Plant Protection Drone Photos:
