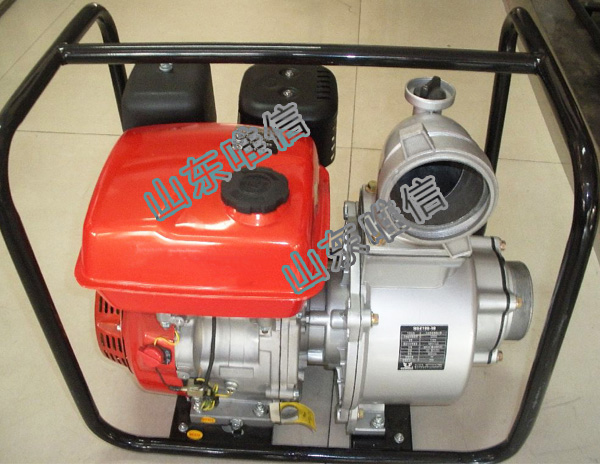

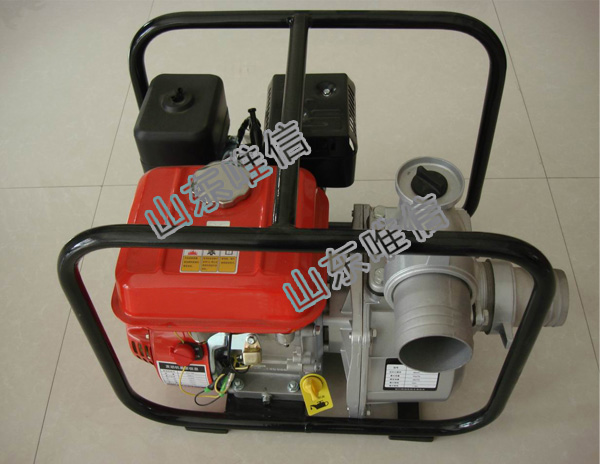

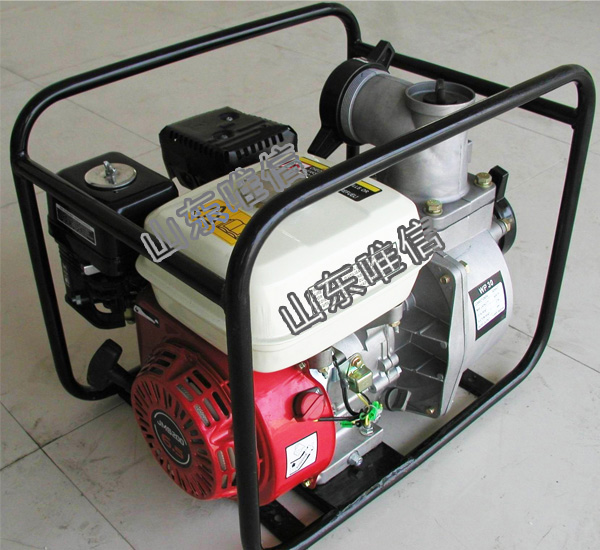

high pressure pump, perfect for irrigation, watering, farming, fire fighting, deep well water, agriculture etc.
Contact Us Product Center
high pressure pump, perfect for irrigation, watering, farming, fire fighting, deep well water, agriculture etc.
1`CE;ISO9001: 2008 certification approved approved;
2`Mproved Fuel Efficiency, Longer Life & Less Maintenance;
3The Engine By Automatically Turning Off When Oil Is Low,
4`Portable compact open structure, easy portability;
5`Water Comes With strong frame
6`Patent design, unique appearance and function; Advance technologe, with THD<5% avaliable
| Generator | Inlet and outlet size: | 80 (3") | |
| Rated speed (HP/rpm): | 3,600rpm | ||
| Displacement(m3/h ): | 60 | ||
| Pump lift (m): | 30m | ||
| Suction height (m): | 8m | ||
| Engine model: | ZH200 | ||
| Displacement: | 196ml | ||
| Engine max output: Hp/rpm: | 6.5/3600 | ||
| Fuel volume (L): | 3.6L | ||
| Bore x stroke: | 70 x 52 | ||
| Compression ratio: | 8.5:1 | ||
| Engine | Oil volume (L): | 0.6L | |
| Min fuel consumption g/HP-hour: | 313g/HP-hour | ||
| Ignition model: | transistor magneto | ||
| Start mode: | recoil | ||
| NW/GW (kg): | 28/30 | ||
| Dimension | Package dimensions (mm): | 520 x 405 x 465 | |
