It is equipped with plant protection flight control and agricultural intelligent data processing platform, as well as dual pump accurate metering spray system, combined with FPV, obstacle avoidance an
Contact Us Product Center

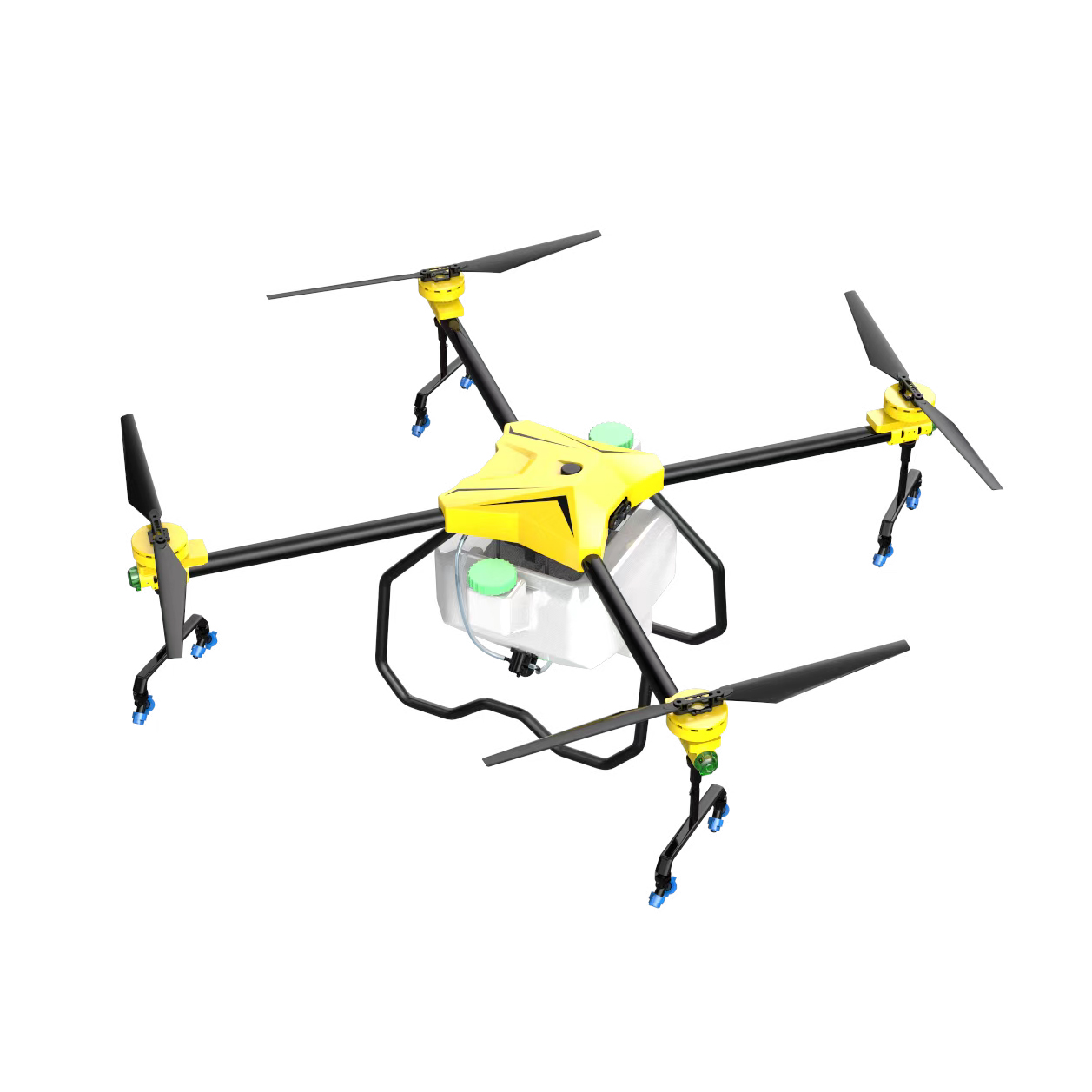

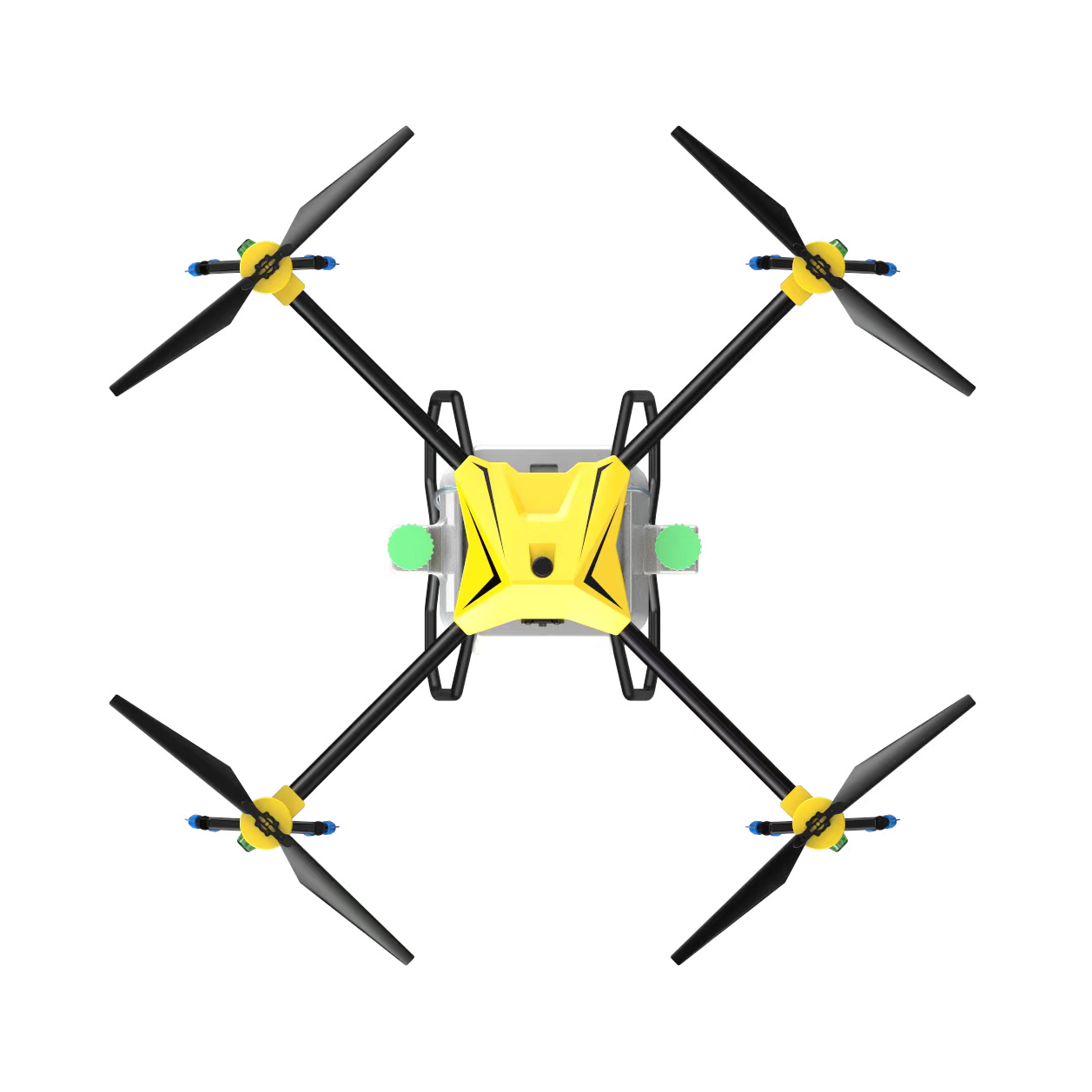

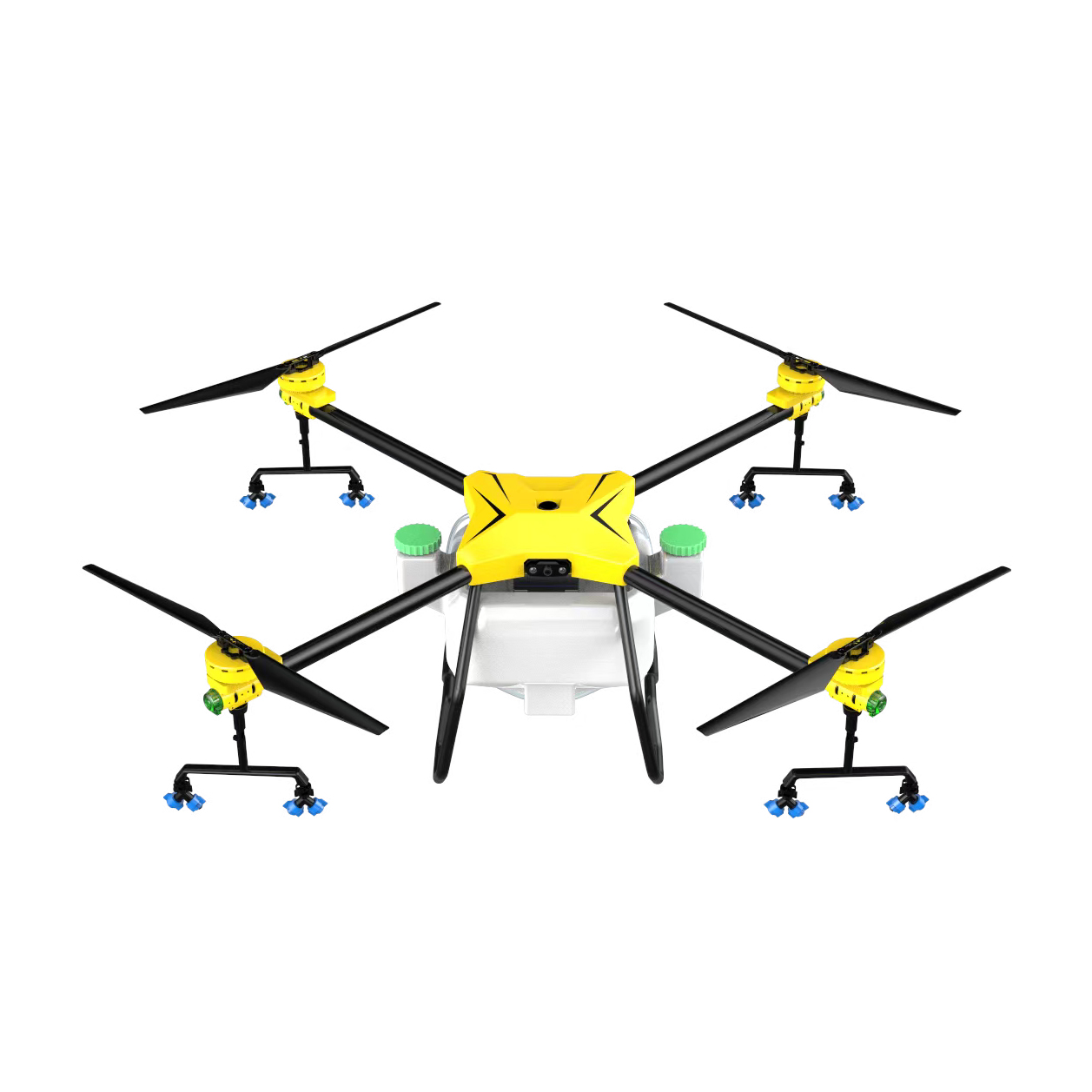

It is equipped with plant protection flight control and agricultural intelligent data processing platform, as well as dual pump accurate metering spray system, combined with FPV, obstacle avoidance and other auxiliary operating systems, can achieve accurate plant protection operations, making plant protection operations simple and safe. Based on the second-generation flight control technology architecture, the new TiA series flight control system is safe and reliable, optimized for the plant protection industry, improves work sefficiency, and realizes intelligent operation of drone plant protection.
1. Accurate spraying to avoid heavy leakage
The new spraying system: double pump independent control system, according to the flight speed, work together to further expand the flow interval to ensure uniformity of spraying; with high-precision flowmeter, it can achieve accurate mu dosage, statistical error ≤ 5%.
2, the perception of obstacles
During flight, the plant protection machine can sense the obstacle's azimuth and distance through the real-time scanning of obstacle avoidance in the front and rear direction; when the obstacle enters the warning area, the aircraft will automatically stop and record the interruption coordinate point. By controlling the plant protection machine to bypass the obstacles in the front, rear, left and right directions by the lever, it can automatically return to the planned projection point of the route and continue the operation.
3, intelligent scanning, accurate imitation
The distance between the plant protection machine and the vegetation to be applied is sensed in real time, and the control system is continuously adjusted to ensure that the distance between the plant protection machine and the vegetation remains unchanged, and the uniformity of spraying is ensured. Depending on the actual application environment, the sensitivity can be adjusted to suit most crops and topography.
4, multiple modes free switching
Users can set flight and operation parameters according to actual operation requirements. The plant protection machine can automatically complete route planning and provide users with four operation modes: AB point operation, area planning operation, semi-automatic operation or manual operation to meet different environmental operation requirements.
5, safe and reliable, reliable operation
Electronic control system upgrade, dual backup configuration, industrial grade calibration, built-in shock absorption structure to improve the safety of plant protection operations. The plant protection platform made of high-strength carbon fiber has a lightweight and sturdy body structure. Enclosed folding design saves space and facilitates transition.
6, intelligent management, convenient and efficient
Automatically plan flight routes, take off at the touch of a button, return to land with one button, voice broadcast, and intelligent assistants to enhance the control experience.
Intelligent spray setting, accurate calculation of work area, automatic generation of job reports, accurate spraying of high-efficiency medication. Aircraft management, operations team management, task management, and teamwork improve operational efficiency.
7, centimeter-level positioning, accurate orientation
The plant protection drone is equipped with an RTK system for high-precision flight and centimeter-accurate positioning. At the same time, it is equipped with dual antenna configuration for accurate flight control, without fear of magnetic compass interference.
|
ZM416 Plant Protection Drone Basic Parameters |
|
|
Wheelbase |
1660 mm (four axes) |
|
Dimensions Expansion: |
1355*1355*610mm |
|
Folding: |
760 * 760 * 610mm |
|
Spray width |
4 ~ 6.5m (depending on different crops) |
|
Medicine box capacity |
16L |
|
Operating efficiency |
100 mu / hour |
|
Machine weight |
15.2kg (without battery) |
|
Maximum effective takeoff weight |
38kg |
|
Power battery |
22000mAh |
|
Nozzle type |
High pressure fan nozzle |
|
Atomized particles |
136~177 μm (XR11015VS) |
|
ZM416 Plant Protection Drone Flight Parameters |
|
|
Hover time |
20min (no load) / 8min (full load) |
|
Working height |
1.5m ~ 3.5m |
|
Large flight angle |
25° (attitude mode) |
|
Large flight speed |
10m/s (GPS mode) |
|
Horizontal positioning accuracy |
Horizontal ± 1.0m Vertical ± 0.5m Level ± 10cm Vertical ±10cm (using RTK) Vertical ±0.1m (with radar enabled) |
|
Imitation ground radar ranging accuracy |
0.02m |
|
Setting range |
1 ~ 10m |
|
Obstacle avoidance range |
2 ~ 20m |
