CB100-40 Direct Driven Irrigation Centrifugal Water Pump

Date:2015-05-18 Label：

Irrigation Centrifugal Pump

CB Series centrifugal pumps do have various advantages, small and light weight, simple operation, easy movement, It was widely used for farmland irrigation, nursery and tea garden. The size is from 2

Introduction of CB100-40 Direct Driven Irrigation Centrifugal Water Pump

CB Series centrifugal pumps do have various advantages, small and light weight, simple operation, easy movement, It was widely used for farmland irrigation, nursery and tea garden. The size is from 2 inch to 6 inch, which is best choice for farmland irrigation. There are hand lift type and normal type, driven by diesel engine through belt or direct connection. With fixed or movable frame.

Application of CB100-40 Direct Driven Irrigation Centrifugal Water Pump

Widely used for farmland irrigation, spray irrigation, nursery, tea garden and micro for economic crop. It's also used to other places requiring high head, such as supplying water to the building, increasing oxygen in pool, pressuring vessel stores and so on.

Technical Parameter of CB100-40 Direct Driven Irrigation Centrifugal Water Pump

Unit Model	Diameter (mm)		Flow		Head (m)	Speed (r/min)	Power (kw/HP)
Unit Model	Inlet	Outlet	L/s	m3/h	Head (m)	Speed (r/min)	Power (kw/HP)
CB50-15	50	50	4.2	15	15	2600	1.5/2
CB50-15	50	50	5.3	19	19	2900	2.2/3
CB50-19	50	50	5.2	18	15	2600	1.5/2
CB50-19	50	50	5.6	20	19	2900	2.2/3
CB50-50-130	50	50	4.2	15	20	2600	1.5/2
CB50-50-130	50	50	4.7	17	25	2900	2.2/3
CB50-50-150	50	50	6.1	22	20	2600	2.2/3
CB50-50-150	50	50	7	25	25	2900	3/4
CB65-65-125	65	65	7.5	27	12	2600	2.2/3
CB65-65-125	65	65	8.3	30	15	2900	3/4
CB65-55	65	65	7.5	27	44	2600	6.1/9
CB65-55	65	65	8.3	30	55	2900	8.8/12
CB65-18 Hand Pressure	65	65	7.5	27	18	2600	4.4/6
CB65-18 Hand Pressure	65	65	8.3	30	22	2900	6.2/9
CB80-28	80	65	8.9	32	23	2600	4.4/6
CB80-28	80	65	10	36	28	2900	5.5/8
CB80-31	80	65	8.9	32	25	2600	4.4/6
CB80-31	80	65	10	36	31	2900	5.5/8
CB80-28 Thailand	80	80	15	54	23	2000	4.4/6
CB80-28 Thailand	80	80	16.7	60	28	2200	5.5/8
CB80-80-130	80	80	13.9	50	14	2600	3.0/4
CB80-80-130	80	80	15	54	23	2900	5.5/8
CB80-40	80	80	12.5	45	25	2600	3.0/4
CB80-40	80	80	13.9	50	31	2900	5.5/8
CB80-65-135	80	80	12.5	45	16	2600	4.4/6
CB80-65-135	80	80	13.9	50	20	2900	5.5/8
CB80-65-135 Hand Pressure	80	80	12.5	45	16	2600	4.4/6
CB80-65-135 Hand Pressure	80	80	13.9	50	30	2900	5.5/8
CB80-55	80	80	15	54	44	2600	8.8/12
CB80-55	80	80	16.7	60	55	2900	13.2/18
CB80-65-205 Hand Pressure	80	65	13.9	50	45	2600	8.8/12
CB80-65-205 Hand Pressure	80	65	15.3	55	55	2900	11/15
B80-80-125Z	80	80	12.5	45	16	2600	4.4/6
B80-80-125Z	80	80	13.9	50	20	2900	5.5/8
B100-100-125Z	100	100	25	90	10	2600	4.4/6
B100-100-125Z	100	100	27.8	100	12.5	2900	5.5/8
CB100-40	100	100	19.5	70	28	2600	8.8/12
CB100-40	100	100	22.2	80	40	2900	11.8/16
TP100-12	100	100	38.9	140	10	2600	7.5/9
TP100-12	100	100	44.7	161	13	2900	11/15
CZK100-100-265 Afghanistan	100	100	18.6	67	11	980	3/4
CZK100-100-265 Afghanistan	100	100	27.2	98	23	1450	5.5/8
CB100-100-135	100	100	25	90	10	2600	4.4/6
CB100-100-135	100	100	27.8	100	12	2900	5.5/8
CZK125-100-265 Afghanistan	125	100	18.6	67	11	980	3/4
CZK125-100-265 Afghanistan	125	100	27.2	98	23	1450	5.5/8
CB150-150-200	150	150	50	180	8	1450	5.5/8

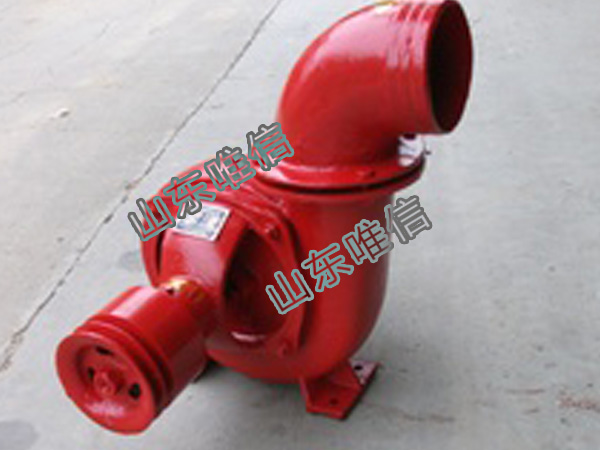

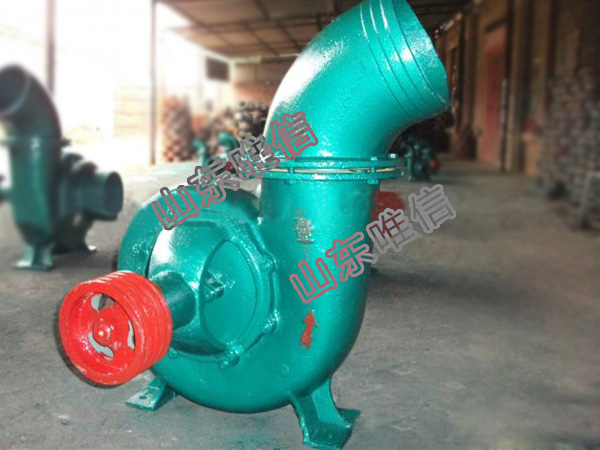

Photos of CB100-40 Direct Driven Irrigation Centrifugal Water Pump

CB100-40 Direct Driven Irrigation Centrifugal Water Pump
