It is fixed with thermal (overload)protector. These series pumps are of large capacity, high efficiency, stable working in use. It can draw clean water, liquids with solids, max.diameter of 15mm. Stai
Contact Us Product Center

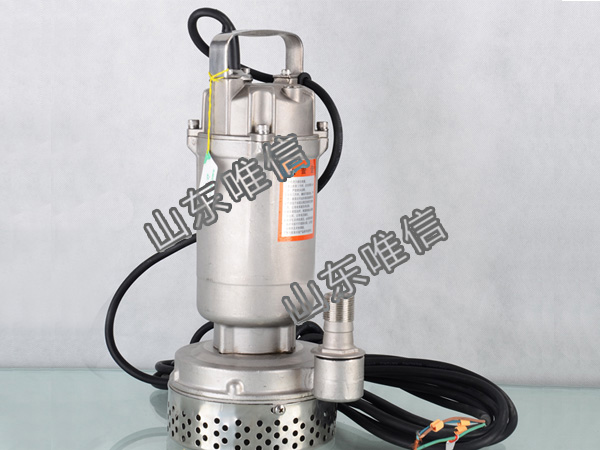

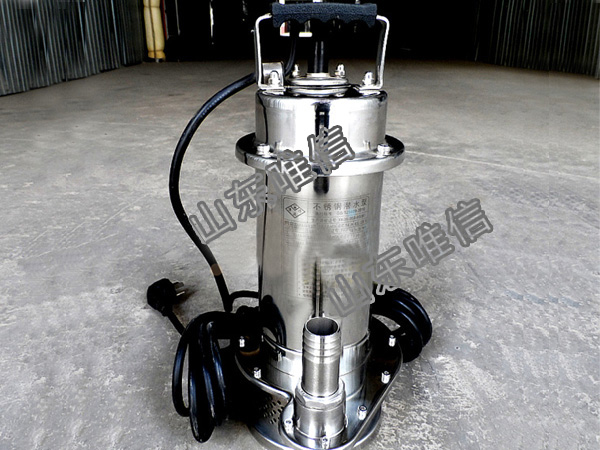

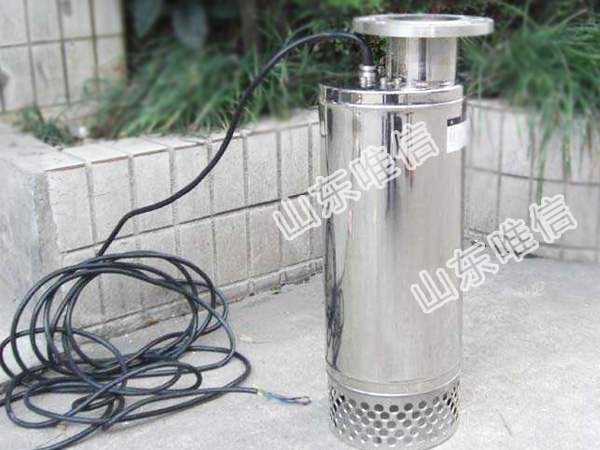

It is fixed with thermal (overload)protector. These series pumps are of large capacity, high efficiency, stable working in use. It can draw clean water, liquids with solids, max.diameter of 15mm. Stainless steel motor housing, cable plate, and bolts& screws are antirust, and longer the service life.
Applying for building site, hotel, restaurant, ship, mine, urban sewage, dejecta discharge, garden and farm irrigation.It also can be used for transporting liquid feed for fishing aquaculture and transporting dilute paper pulp.
The pump can be fixed with an automatic float switch. When the water level lower than the pump, the float switch will hang down, power off, then the pump will stop working. When the water increase, the float switch will be on the water surface, power connected, the pump will begin to work. This will well protect the pump agaist dry working, save engery, and very convinient for use.
| Model | Rated power | Rated-flow | Rated-head | Pipe size | |
| [Kw] [HP] | [m3/h] | [m] | [mm] | ||
| WQD4-10-0.55F | 0.55 | 0.7 | 4 | 10 | 50 |
| WQD7-7-0.55F | 0.55 | 0.7 | 7 | 7 | 50 |
| WQD7-10-0.75F | 0.75 | 1 | 7 | 10 | 50 |
| WQD10-7-0.75F | 0.75 | 1 | 10 | 7 | 50 |
| WQD5-15-0.75F | 0.75 | 1 | 5 | 15 | 40 |
| WQD10-10-1.1F | 1.1 | 1.5 | 10 | 10 | 50 |
| WQD8-20-1.5F | 1.1 | 1.5 | 8 | 20 | 50 |
