Two-stroke petrol engine. Compat structure, easy to operate and carry. Ideal combustion makes discharging wastegas improve. The products are widely used to irrigate the gardens carry out construction,
Contact Us Product Center

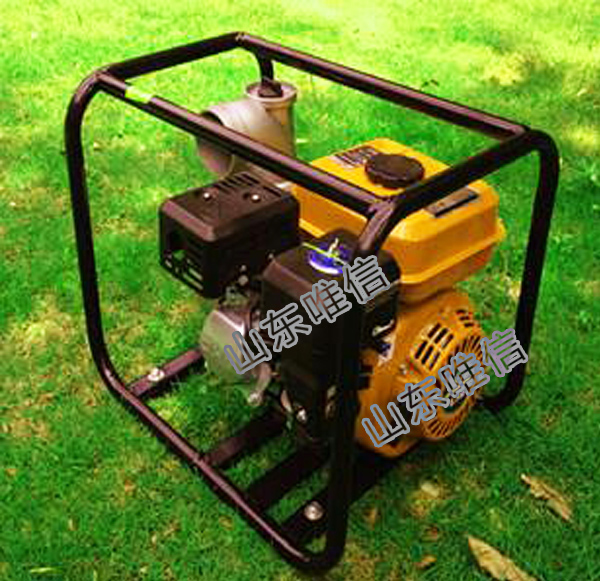

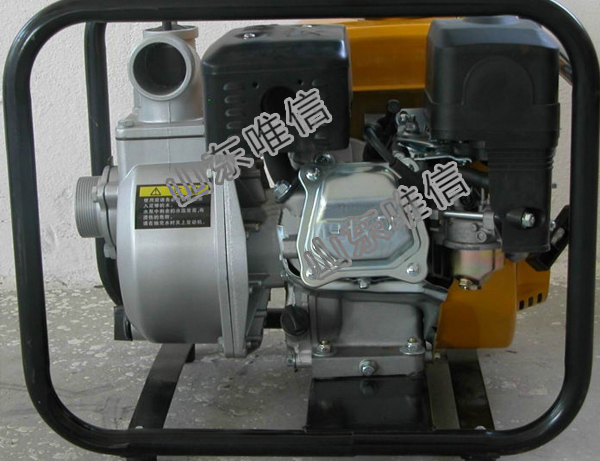

Two-stroke petrol engine.
Compat structure, easy to operate and carry.
Ideal combustion makes discharging wastegas improve.
The products are widely used to irrigate the gardens carry out construction, transfer water to high places and support the generating set.
| Item | WP-15(1' ' ) |
| outlet size | 25mm |
| inlet size | 25mm |
| lift H. max(m) | 22 |
| Suction(m) | 7 |
| Engine type | 1E40F-5A |
| Max output(HP) | 1.5 |
| Engine model | 168F |
| bore× stroke | 40× 34 |
| Displacement | 42.73 |
| Compression Ratio | 7.66: 1 |
| Ignition System | C. D. I |
| Start Model | Manual |
| Air cleaner | semi-dry or oil bath type |
| fuel tank Capacity | 1.2L |
| fuel consumption | 610g/kw. h |
| Oil capacity | 0.6L |
| packing (mm) | 310× 295× 315 |
| N. W(kg) | 8 |
| G. W(kg) |
9 |
