FWQB series pneumatic desilting sewage submersible pump is a kind of high efficiency, high lift new drainage tools, pneumatic turbine submersible pump is mainly suitable for mining, digging Wells and
Contact Us Product Center

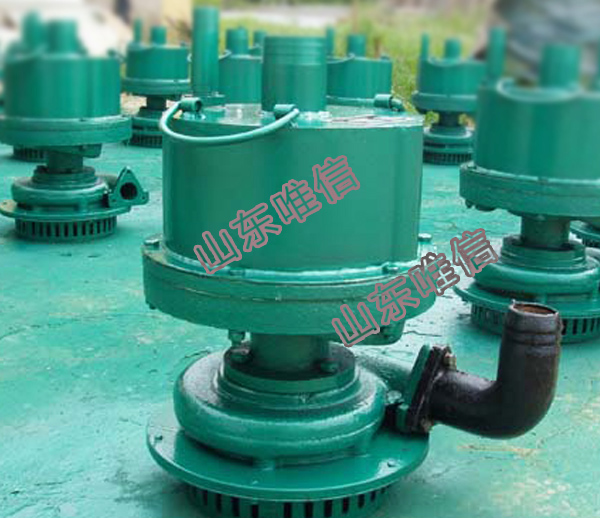

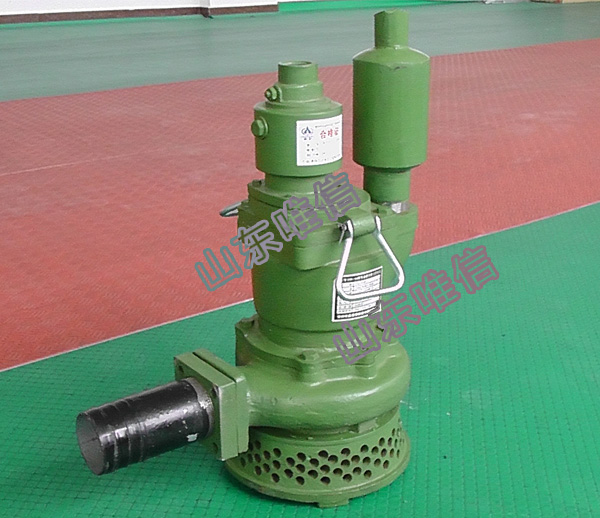

FWQB series pneumatic desilting sewage submersible pump is a kind of high efficiency, high lift new drainage tools, pneumatic turbine submersible pump is mainly suitable for mining, digging Wells and shaft shaft construction of roadway drainage operation. Wind turbine in the power part adopts the vane pump pneumatic motor, automatic centrifugal speed etc, to ensure that within the scope of rated at high speed, wind turbine submersible pump is mine digging Wells, well built an ideal drainage tool. FWQB series pneumatic desilting sewage submersible pump submersible electric pump maintenance .
|
model |
Highest head(m) |
Max flow(M3/h) |
Max gas Consumption (M3/min) |
pressure kg/M2 |
Envelop dimensions high X diameter(mm) |
Weight (kg) |
|
FWQB70-30 |
70 |
30 |
3.8 |
4-5 |
350×260 |
30 |
|
FWQB50-25 |
50 |
25 |
3.0 |
4-5 |
350×260 |
18 |
|
FWQB30-18 |
30 |
18 |
2.2 |
4-5 |
350×260 |
15 |
|
FWQB16-15 |
16 |
10 |
1.5 |
4-5 |
350×260 |
15 |
