FZB Series Fluorine Lined Self-Priming Centrifugal Pump

Date:2015-04-11 Label：

Self-Priming Centrifugal Pump

Structure and principle of FZB Series Fluorine Lined Self-Priming Centrifugal Pump

FZB fluorine plastic self-priming pump is produced by international standard combined with non-metallic pump technology. The pump body adopts metal case inner lined with fluorine plastic, the flow parts are all made of fluorine plastic alloy, the pump cover and impeller is sintered and pressed by metal insert and outer coated fluorine plastic, shaft seal mounted outside using advanced bellows mechanical seal,static rings select the 99.9% of alumina ceramics(or silicon nitride), the dynamic rings adopt the PTFE packing material with excellent wear resistance and sealing performance. The pump inlet and outlet is reinforced by cast steel body to strengthen the pump pressure resistance. This pump has the advantages of corrosion, wear and high temperature resistance, high mechanical strength, stable operation, reasonable structure, strict sealing performance, easy disassembly and maintenance, long service life,etc.
The outstanding feature of FZB self-priming pump is self-priming function. The pump with stable performance and simple operation pumping the liquid below the pump installation position.There is no need of second filling after the first use.The self suction height can be determined within 2 to 4m according to the medium density. It is the best choice for the replacement of bulky submerged pump.

Application of FZB Series Fluorine Lined Self-Priming Centrifugal Pump

The product can safely convey strong acid and alkali, toxic, organic solvent, and pure, precious chemical medium. It can meet the requirements of safety, reliability and eco-friendly, and is suitable for various chemical process.
The pump has wide applications.For example, pumping the corrosive liquid in the underground tank to the target location, and pumping acid and alkali in acid-base tank of the bottom without outlet to the target location. It can also used as the circulation of several acid tanks or acid unloading. It is one of the essential equipment for more and more use units because of humanized design principle and excellent working performance of FBZ self-priming pump.
Applicable temperature:-20ºC~80ºC.

Performance parameters of FZB Series Fluorine Lined Self-Priming Centrifugal Pump

Order No.	Model	Flow(m³/h)	Head(m)	Efficiency(%)	NPSH (m)	Inlet&Outlet (mm)	Suction height (m)	Self-priming time (s)	Motor power(kw)	Weight (kg)
1	25FZB-20L	1.5	19	10	3	25*25	1	180	2.2	65
		*3.6	18	20
		6	16	30
2	40FZB-20	5	22	35	3	40*50	1	180	3	47
		*8	20	42
		12	17	40
3	40FZB-30L	5	32	24	3.5	40*50	3	150	4	160
		*8	30	48
		12	28	45
4	50FZB-20	8	22	35	3	50*50	1	180	3	47
		*12	20	42
		15	17	40
5	50FZB-30L	8	32	24	3.5	50*50	3	150	4	160
		*12	30	48
		15	28	45
6	50FZB-45L	8	47	24	3.5	50*32	3	150	7.5	210
		*12	45	35
		15	40	32
7	50FZB-70L	8	72	20	4	50*32	3	150	15	320
		*12	70	26
		25	65	39
8	65FZB-30L	15	32	40	4	65*50	3	200	7.5	210
		*25	30	55
		35	27	48
9	65FZB-45L	15	47	30	4	65*40	3	180	11	300
		*25	45	42
		35	38	44
10	65FZB-70L	15	72	30	4	65*40	3	180	30	530
		*25	70	41
		35	65	42
11	80FZB-30L	35	32	54	4.5	80*65	3	150	11	284
		*50	30	58
		60	25	48
12	80FZB-45L	35	47	45	4.5	80*65	3	180	15	330
		*50	45	53
		60	42	46
13	80FZB-70L	35	72	45	5	80*50	3	200	30	550
		*50	70	50
		60	65	43
14	100FZB-30L	65	32	54	6	100*80	3	150	18.5	390
		*100	30	60
		110	26	54
15	100FZB-45L	65	46	48	6	100*80	3	150	30	500
		*100	45	55
		110	40	48

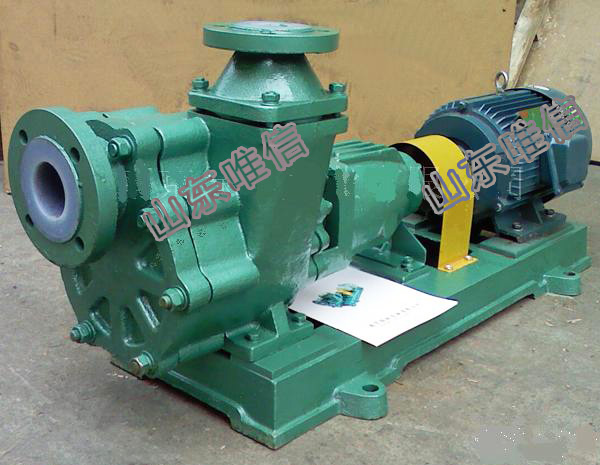

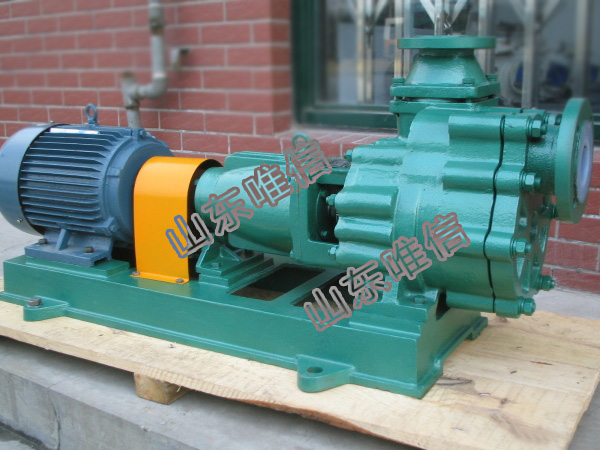

Photos of FZB Series Fluorine Lined Self-Priming Centrifugal Pump
