D single-suction multistage multi-section centrifugal pumps can transport clean water and fluids similar to water in physical and chemical properties. This pump is widely used for water supply and dra
Contact Us Product Center

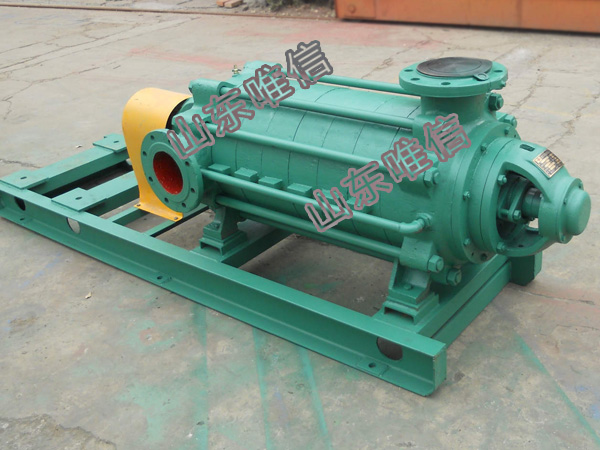

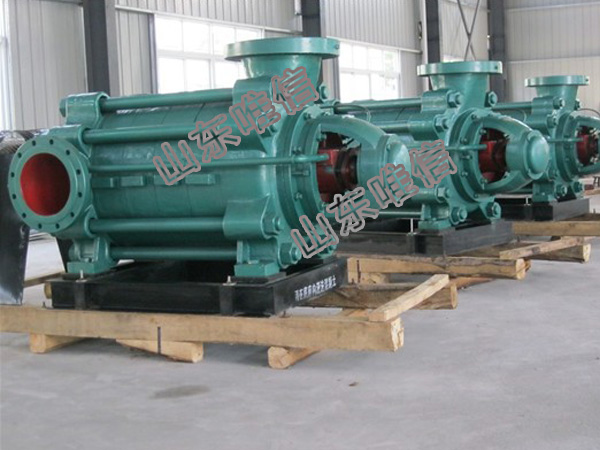

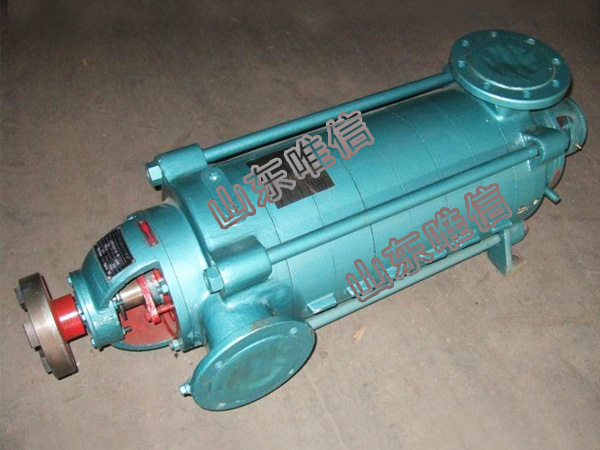

D single-suction multistage multi-section centrifugal pumps can transport clean water and fluids similar to water in physical and chemical properties. This pump is widely used for water supply and drainage in mine industries, factories and cities. According to medium, temperature, there are DG, MD, DF, D/S, D/G, D/P series, etc.
Flow range: 6.3~1450m3/h
Head range: 17~1990m
Medium temperature: <150°C
| No | Name | Meaning |
| 1 | 80 | Inlet diameter(mm) |
| 2 | D | Single suction multistage pumps |
| 3 | 12 | Single stage head |
| 4 | 5 | Pump stage |
D type is for transferring clean water or liquids similar to water in both physical or chemical properties. Medium temperature shall not exceed 80 degrees. This kind of pump can be applied to mine drainage, city building water supply, long distance transferring water.
DG type is for transferring clean water or liquids similar to water in both physical or chemical properties. Medium temperature shall not exceed 105 degrees. This kind of pump can be applied to small boiler feed water or transferring hot water or medium similar to hot water. If the medium temperature do not exceed 150 degrees, we also can customize.
MD type single suction multistage pump is perfected based on the model of D type. It has abrasion resistance feature. This kind of pump has such advantages, such as energy saving, high efficiency, long life time. It can be the same applicaton as D type.
DF type single suction multistage abrasion resistance pump can transfer liquids with temperature from -20 degrees to 105 degrees, no solids, non corrosity. This kind of pump can be applied to chemical industry, petroleum, metallurgy, light industry, etc.
