Oil Immersed Submersible Pump

Introduction of Oil Immersed Submersible Pump

QY oil-filled submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which triphase is at the upper part of pump and seal is used where pump and motor combine, which is a kind of double end mechanical seal. "O" rings are applied to all static joints. Axial flow impeller design can meet customer demand for big flow.

Application of Oil Immersed Submersible Pump

1. Agricultural/garden irrigation

2. Underground water supply

3. Tower water supply

4. Fountain

Features of Oil Immersed Submersible Pump

Motor:100% copper wire, full power

Mechanical seal: Alloy and silicon carbide

Shaft: stainless steel

Screw: stainless steel

Shape: smooth and nice

Using Condition of Oil Immersed Submersible Pump

1. Medium is not corrosive. Sand contents should be max. 0.1% by volume and granular size should be max 0.2mm

2. Medium temperature should not be over 40 and PH should be 6.5-8.5

3. The pumps should be operated within rated head.

4. The pumps should be fully submerged into water with depth of less than 3m and max. The pump should be min 0.5m over the water bottom and not be inserted into sludge.

5. Power frequency should be 50hz, three-phase voltage 380V, and voltage fluctuation should be 0.9-1.1 times than the rated.

Specification of Oil Immersed Submersible Pump

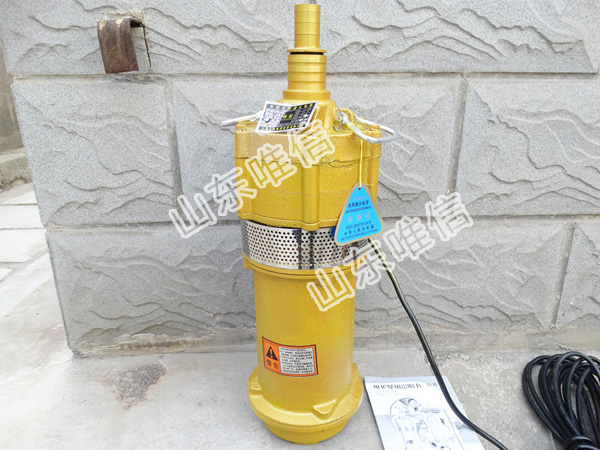

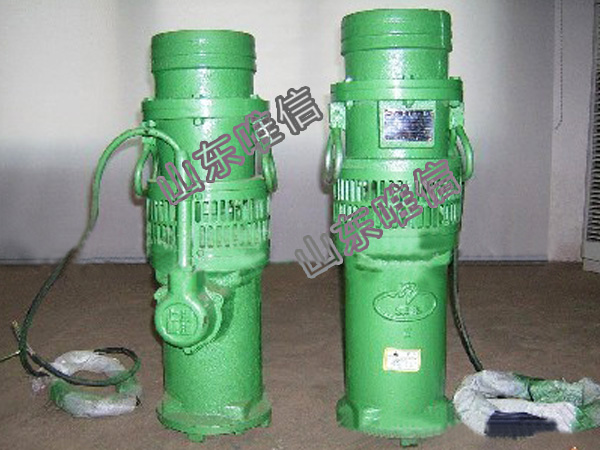

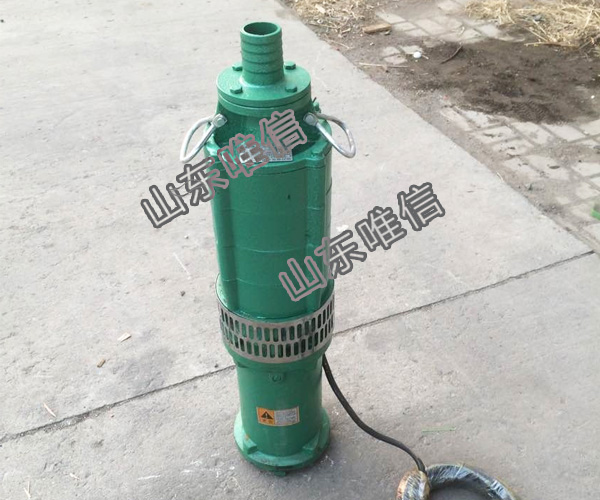

Photos of Oil Immersed Submersible Pump

•
