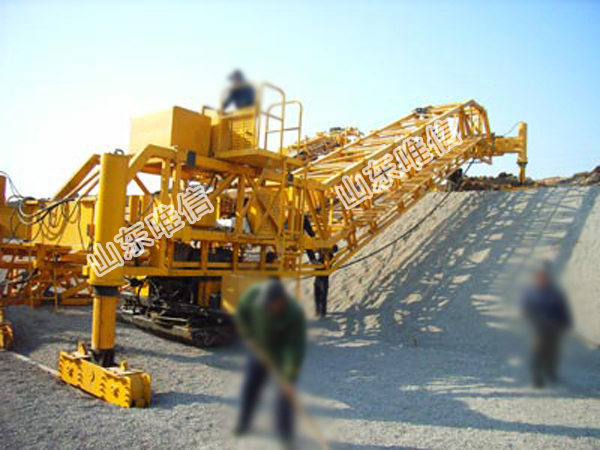

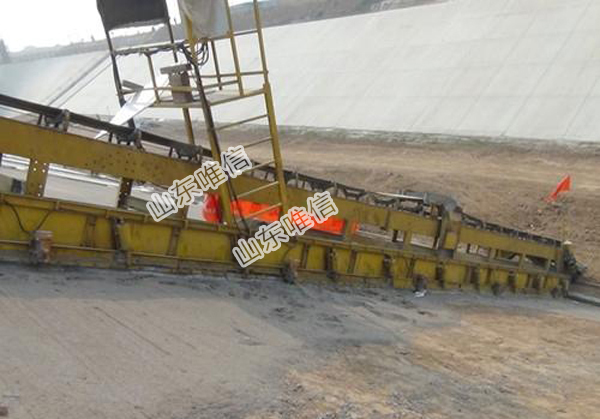

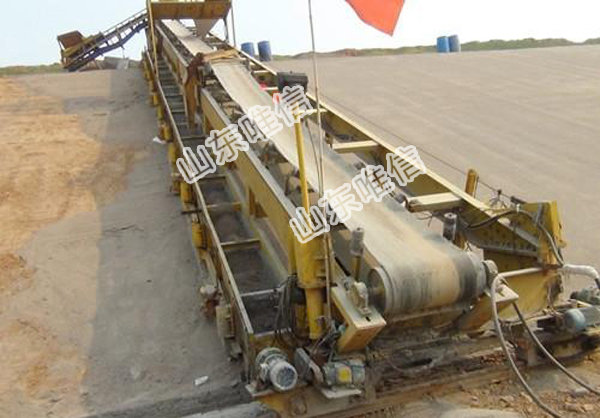

Canal Concrete Finisher is mainly used in the field of canal finishing on large area and big span. It is used in whole process of laying-off, material paving, slurry extracting, compression and smooth
Contact Us Product Center
Canal Concrete Finisher is mainly used in the field of canal finishing on large area and big span. It is used in whole process of laying-off, material paving, slurry extracting, compression and smoothing of concrete.
·Conveyer screw to lay-off materials, high efficiency, operates easily, non-material and slurry leaking;
·Manganese alloy material for Conveyer screw, abrasion resistance, and long service life;
·Plug-type vibrating part, high quality spring steel, excellent performance;
·Automatically level adjustable of elevating system, which controlled by electric wire rod, operate easily and steadily;
·Walking motor soft start, truss walking steadily;
·Leveling truss can be adjustable to make sure leveling degree;
·OMRON/SIEMENS/LS electrical parts, excellent performance;
·Truss connection, modular design, easy to adjust the length, the slope ratio to adapt the changes of channel;
·With potentiometer transducer system to make lever, with setting height field system to adjust height of walking truss to make sure slope ratio;
·The chosen length of conveyer screw is according to the length of truss and make up by standard section.
|
Working |
|
|
Conveyer screw diameter |
φ260 mm |
|
Conveyer screw rotation speed |
136 rpm |
|
Feed bin quantity |
According to slope length |
|
Feed bin specification |
630*500*530mm |
|
Grade I transport power |
3kw |
|
Grade II transport power |
According to slope length |
|
Smoothing forms length |
1000 |
|
Finished thickness |
100-200 |
|
Efficiency (max.) |
1.2m/min |
|
Vibration frequency |
200Hz |
|
Effective range |
φ300mm |
|
Vibration rod quantity |
According to slope length |
|
Running model |
Manual |
|
Controlling method |
Manual button |
|
Running device |
|
|
Running type |
Railway walking |
|
Roller diameter |
Φ230 mm |
|
Roller driving method |
Chain transmission |
|
Running speed |
0-1.2m/min |
|
Running motor |
According to slope length |
|
Truss |
|
|
Suitable slope length |
23m(Max. length of finishing surface) |
|
Suitable slope |
As per customer requirement |
|
Elevating device |
Hydraulic elevating/ by motor mechanically elevating |
|
Adjust mode of up and down |
Manual / Automatic |
|
Device |
|
|
Motor |
Chinese famous brand |
|
Main hydraulic elements |
EATON |
|
Main electrical elements |
OMRON / SIEMENS/LS |
|
Total power |
According to specification details |
