Channel Base Cement Soil Lining Machine

Parameters of Channel Base Cement Soil Lining Machine

Walking speed 0-5m / min

Compaction width 1400mm

Traveling motor 2x2.2 kw

Single roller excitation force 12-18kn

truss

Single drum drive power 5.5kw

Adapt to slope length (m) according to customer needs

Feeding speed 1.6m / sec

Adapt to slope according to customer needs

Traction speed 3m / min

Lifting device hydraulic lifting / electric machinery lifting

Run mode manually

Walking device:

Walking mode orbit

Main electrical components OMRON / SIEMENS / LS

Roller diameter φ230 mm

The total power is calculated according to the configuration

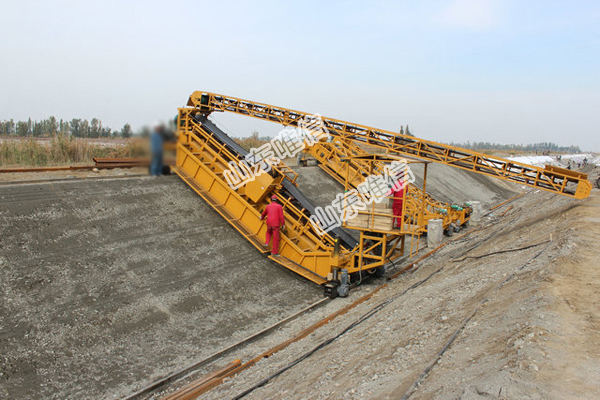

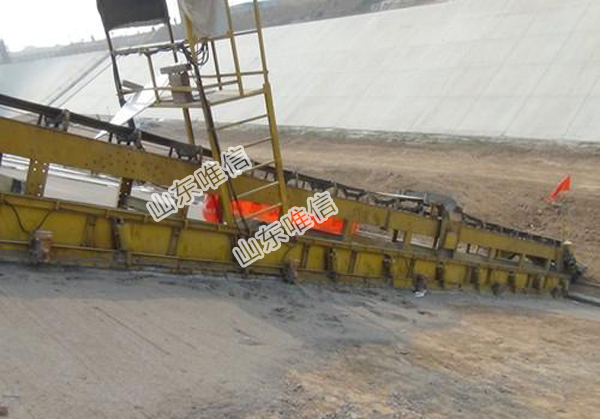

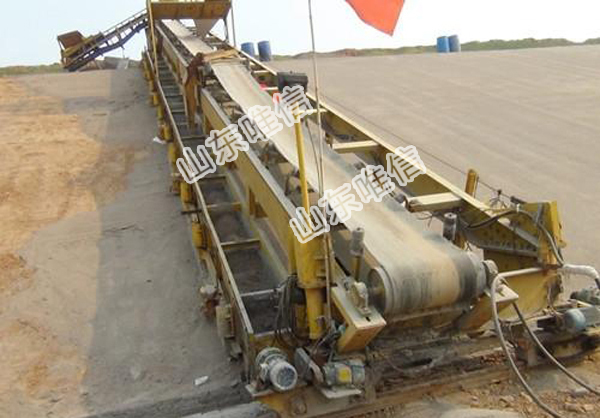

Photos of Channel Base Cement Soil Lining Machine

•
