1,The Channel Concrete Lining Machine is track-mounted, which is easy to operate and keep the accuracy. 2, Use advanced compaction and vibration techniques, which can finish the work of compaction and
Contact Us Product Center

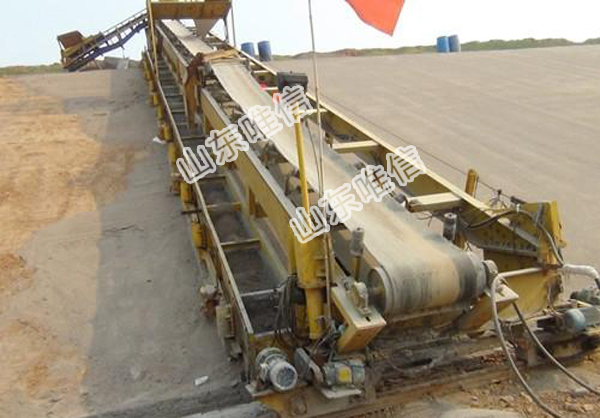

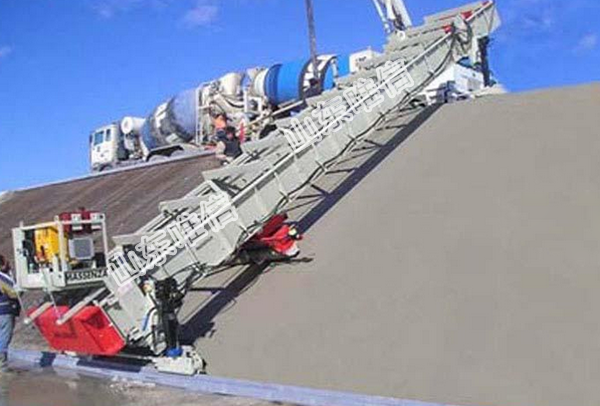

1,The Channel Concrete Lining Machine is track-mounted, which is easy to operate and keep the accuracy.
2, Use advanced compaction and vibration techniques, which can finish the work of compaction and vibration at the same time and with good effect.
3, Double compaction rollers can make high efficiency and excellent compaction effect.
4, OMRON/SIEMENS/LS electrical parts, excellent performance;
5: Truss connection, modular design, easy to adjust the length and the slope ratio to adapt the changes of canal.
| Working | |
| Conveyer screw diameter | ￠260 mm |
| Conveyer screw rotation speed | 136 rpm |
| Feed bin quantity | According to slope length |
| Feed bin specification | 630*500*530mm |
| Grade I transport power | 3kW |
| Grade II transport power | According to slope length |
| Smoothing forms length | 1000 |
| Finished thickness | 100-200 |
| Efficiency (max.) | 1.2m/min |
| Vibration frequency | 200Hz |
| Effective range | ￠300mm |
| Vibration rod quantity | According to slope length |
| Running model | Manual |
| Controlling method | Manual button |
| Wire rope specification | 12mm |
| Running model | Manual |
| Control method | Manual button |
| Running device | |
| Running type | Railway walking |
| Roller diameter | ?230 mm |
| Roller driving method | Chain transmission |
| Running speed | 0-1.2m/min |
| Running motor | According to slope length |
| Truss | |
| Suitable slope length | 23m(Max. length of finishing surface) |
| Suitable slope | As per customer requirement |
| Elevating device | Hydraulic elevating/ by motor |
| mechanically elevating | |
| Adjust mode of up and down | Manual/Automatic |
| Device | |
| Motor | Chinese famous brand |
| Main hydraulic elements | EATON |
| Main electrical elements | OMRON/SIEMENS/LS |
| Total power | According to specification details |
