Water Conservancy Construction Channel Concrete Lining Machine

Water Conservancy Construction Channel Concrete Lining Machine

[Water Conservancy Construction Channel Concrete Lining Machine Tags]

Channel Concrete Lining Machine Concrete Lining Machine

[Water Conservancy Construction Channel Concrete Lining Machine Quick Detail]

Water Conservancy Construction Channel Concrete Lining Machine is mainly used to convey, pave, screed and slurry the concrete and is much applicable to small-sized gravel (which is less than 5cm) and
Water Conservancy Construction Channel Concrete Lining Machine

[Water Conservancy Construction Channel Concrete Lining Machine Introduction]

Introduction of Water Conservancy Construction Channel Concrete Lining Machine

Water Conservancy Construction Channel Concrete Lining Machine is mainly used to convey, pave, screed and slurry the concrete and is much applicable to small-sized gravel (which is less than 5cm) and granulate material.
Compared with the traditionally manual or excavator digging method, which is labor and time-costing, low efficiency, unreliable, the gravel paving equipment can finish the work of feeding, screeding, and compaction at the same time.

Water Conservancy Construction Channel Concrete Lining Machine is high efficient.

Technology Parameters of Water Conservancy Construction Channel Concrete Lining Machine

Working
Conveyer screw diameter ¢260 mm
Conveyer screw rotation speed 136 rpm
Feed bin quantity According to slope length
Feed bin specification 630*500*530mm
Grade I transport power 3kW
Grade II transport power According to slope length
Smoothing forms length 1000
Finished thickness 100-200
Efficiency (max.) 1.2m/min
Vibration frequency 200Hz
Effective range ¢300mm
Vibration rod quantity According to slope length
Running model Manual
Controlling method Manual button
Wire rope specification 12mm
Running model Manual
Control method Manual button
Running device
Running type Railway walking
Roller diameter ?230 mm
Roller driving method Chain transmission
Running speed 0-1.2m/min
Running motor According to slope length
Truss
Suitable slope length 23m(Max. length of finishing surface)
Suitable slope As per customer requirement
Elevating device Hydraulic elevating/ by motor
mechanically elevating
Adjust mode of up and down Manual/Automatic
Device
Motor Chinese famous brand
Main hydraulic elements EATON
Main electrical elements OMRON/SIEMENS/LS
Total power According to specification details

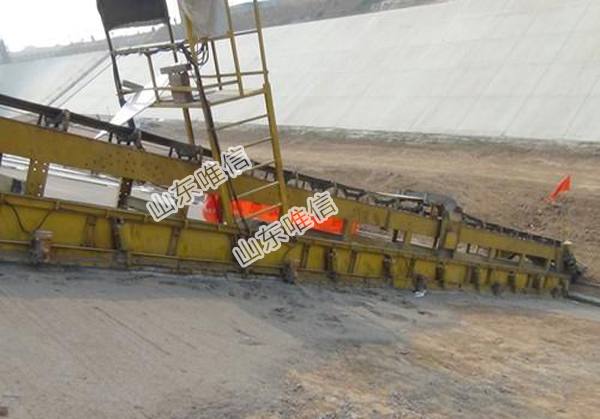

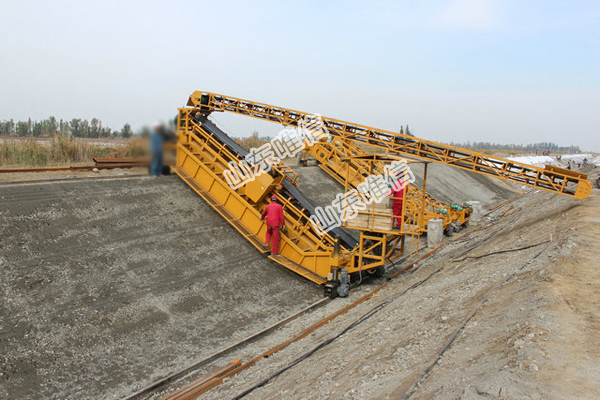

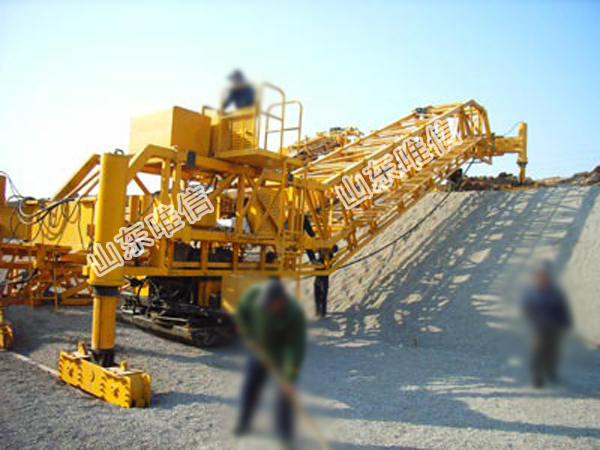

Photos of Water Conservancy Construction Channel Concrete Lining Machine

Water Conservancy Construction Channel Concrete Lining Machine


Water Conservancy Construction Channel Concrete Lining Machine


Water Conservancy Construction Channel Concrete Lining Machine
