Lateral Move Center Pivot Agricultural Sprinkler Irrigation System

Lateral Move Center Pivot Agricultural Sprinkler Irrigation System

[Lateral Move Center Pivot Agricultural Sprinkler Irrigation System Tags]

Agricultural Sprinkler Irrigation System

[Lateral Move Center Pivot Agricultural Sprinkler Irrigation System Quick Detail]

LATERAL MOVE IRRIGATION also called liner irrigation, this systems consisting of one or more spans which can be used autonomously. The water supply arrives via a pulled pipe or by drawing water from a
Lateral Move Center Pivot Agricultural Sprinkler Irrigation  System

[Lateral Move Center Pivot Agricultural Sprinkler Irrigation System Introduction]

Usage and specification of Lateral Move Center Pivot Agricultural Sprinkler Irrigation System

LATERAL MOVE IRRIGATION also called liner irrigation, this systems consisting of one or more spans which can be used autonomously. The water supply arrives via a pulled pipe or by drawing water from a lateral channel. The electricity supply comes from a pulled cable or from a generator loaded on the machine.

FOUR WHEEL LATERAL MOVE IRRIGATION
“Back and forth” irrigation via a linear of 10 spans maximum
Water supply via a flexible pipe or a PEHD connected to a articulated elbow.
Tower on a chassis with 4 motorized wheels
2 jointed axles for a better adaptation to the terrain
Can accommodate an electricity generator and a diesel tank
Possibility to add an overhang at each end of the spans
Furrow guidance systems or steel cable

Parameters of Lateral Move Center Pivot Agricultural Sprinkler Irrigation System

Main pipe diameter of irrigation equipment

:6-5/8″

Cantilever pipe diameter

5-9/16″

Pipe length

22 feet/one,(6.7m)

Standard span of irrigation equipment

54.5m(8 pipes)and 48m(7pipes )

Main pipe Flange thickness

10mm, Flange and pipe adopt double welded technology.

Working voltage

460--380V/50--60HZ

Power supply mode

diesel generator and the local power company provide

Tire type of irrigation equipment

14.9 X 24,vacuum irrigation tire

Motor power of irrigation equipment

0.75~1.5 horse power

Motor speed reducer

output speed of electric transmission gear box :28--86RPM

Tire speed reducer

the drive ratio is 50:1 (American UMC)

Irrigation intensity

5-50mm (within the range is adjustable)

Irrigation uniformity

≥90%

Climbing capacity

≤25%

Span body tower structure

“V”model tower

Sprayer of irrigation equipment

USA Nelson D3000;selective configuration: USA Nelson R3000

Irrigation intake pressure

0.20—0.35mpa

truss height of irrigation equipment

3.25m

Sprayer spacing

2.2-4m(the quantity:2-3 sprayer/water pipe

Main cable of irrigation equipment

4*4mm²+6*1.5mm²(resist ultra violet and aging)

The end

LED working status instruction light

Main pipe of water supply

Adopt ground buried, standard is more than 6 inches.

Irrigation intake

2 water inlet in the center of the machine head, quick pipe joint structure

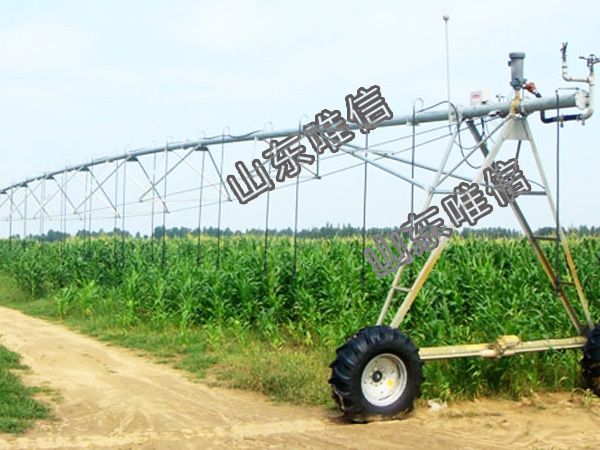

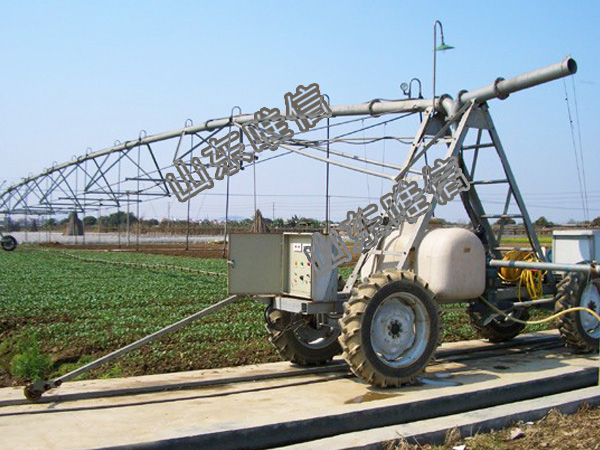

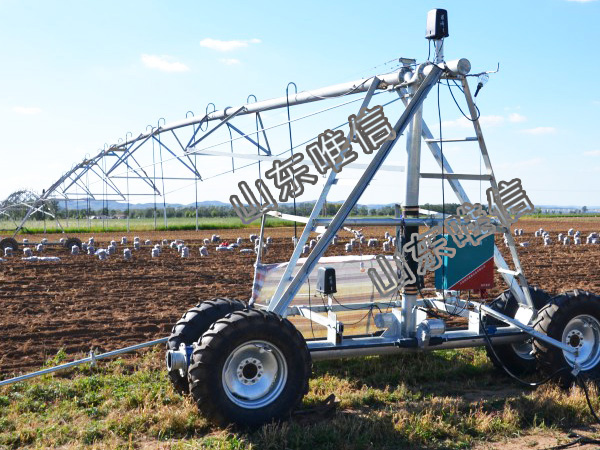

Photos of Lateral Move Center Pivot Agricultural Sprinkler Irrigation System

Lateral Move Center Pivot Agricultural Sprinkler Irrigation System


Lateral Move Center Pivot Agricultural Sprinkler Irrigation System


Lateral Move Center Pivot Agricultural Sprinkler Irrigation System
