Mini Autorain Reel Irrigation Machine

Mini Autorain Reel Irrigation Machine

Date:2015-03-21     Label:

Reel Irrigation Machine

* Accurate driving of turbine * Precise ratchet drive * Low connecting pressure * High retraction speed of sprinkler even at low flow. * Exact PE-Pipe Winding Mechanism

Contact Us Product Center

Description of Mini Autorain Reel Irrigation Machine

* Accurate driving of turbine
No drive water near the machine, reliable and maintenance free
* Precise ratchet drive
Drum drive via exact, laser cut wheel gear with high effeciency and long-lasting durability.
* Low connecting pressure
2. 8 bar pressure are already sufficient enough for troublefree operation. Therefore, very efficient and energy saving.
* High retraction speed of sprinkler even at low flow.

Easy adjustment of retraction speed up to 35 m / h for applying the precipitation rate you need for the plants.
* Exact PE-Pipe Winding Mechanism
Ensures precise reeling of the irrigation pipe in all layers, winding for winding
* Sprinkler cart
With high clearance and adjustable track width for avoiding damage to the crops.
* Automatic Shut off valve as standard extent of supply
Closes the water supply and shuts off the machine automatically at end of the irrigation strip, without any additional accessories.
* Twice as much safety for the irrigator.
Mechanical shut-off of drum drive by means of shut-off lever and additionally by shutting off the water flow.
* Comfortable operation
The sprinkler cart will be loaded automatically at the end of the irrigation strip. The irrigator can be pulled to the next working position
Immediately without any further manipulation.
* Laying down or pulling off PE pipe
Little handling time. You either pull the machine, thereby laying down the pipe, or you pull the PE-pipe off the reel.
* Large Tyres
For easy pull also on rough ground
* AUTO RAIN-Models available
40-120-with PE-Pipe 40 mm diam x 120 m long-for field

Length up to 135 m
50-74-with PE-Pipe 50 mm diam x 74 m long for field
Length Up to 100 m

Technical Data of Mini Autorain Reel Irrigation Machine

Length: 256 cm
Width: 156cm
Height: 160cmm
Weight filled
With water: 313kg

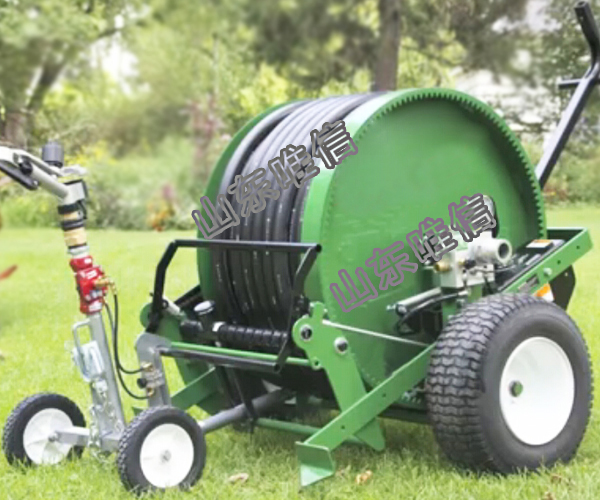

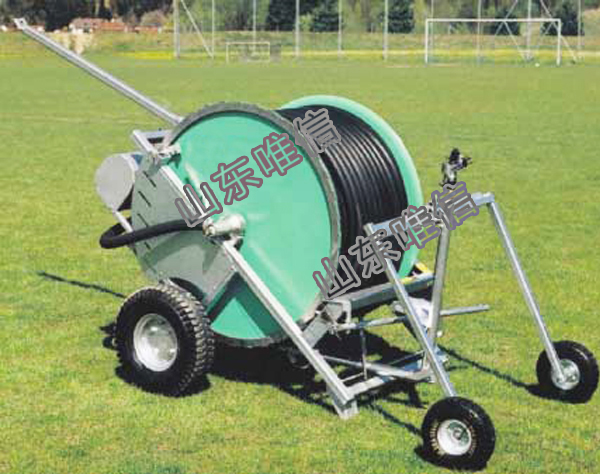

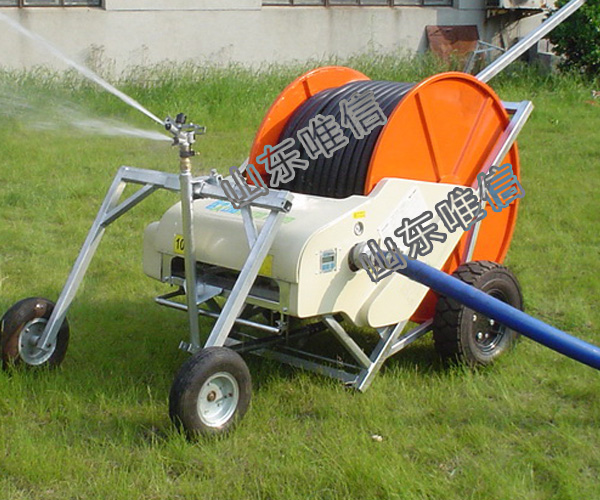

Photos of Mini Autorain Reel Irrigation Machine

Mini Autorain Reel Irrigation Machine


Mini Autorain Reel Irrigation Machine


Mini Autorain Reel Irrigation Machine

PHOTOS OF

Mini Autorain Reel Irrigation Machine
