Also known as: Center Pivot Sprinkler Linear Irrigation System

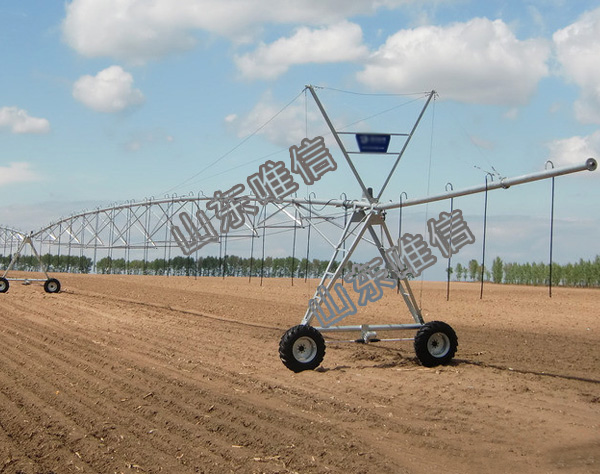

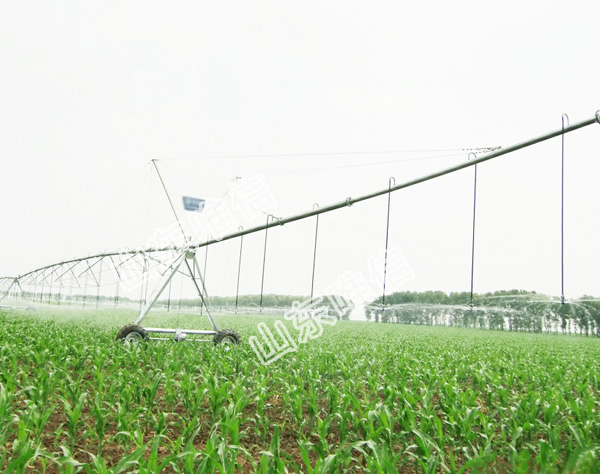

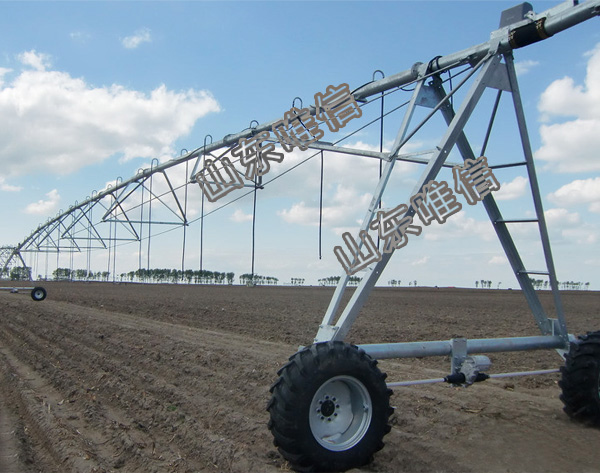

A center pivot sprinkler is an irrigation machine that uses motorized towers to move a sprinkler equipped pipe around a stationary central point to apply water to a field. While moving through the field, the center pivot can apply not only water, but also approved fungicides, herbicides and fertilizers, which are mixed with the irrigation water.
Suitable for wide range of field crops like Wheat, Gram, Pulses as well as Vegetables, Cotton, Soya bean, Tea, Coffee, and other fodder crops. Suitable for Residential, Industrial, Hotel, Resorts, Public & Government Enterprises, Golf Links, Race courses.
Pivot sprinkler Irrigation is a method of applying irrigation water reproducing in a controlled manner the rainfall. Water is sprayed into the air and irrigate entire soil surface through spray heads so that it breaks up into small water drops spreading over the ground.
The center pivot prinklers provide efficient coverage for small to large areas and are suitable for wide range of crops and are adaptable to nearly all type of soils as they are available in a wide range of discharge capacity.
Area | Pipe | Model | Span length | Height over ground | Tyres |
|
Up to 45 ha | 5" | URA5 | 36 to 59m | 3.1m | 14.9x24 |
|
Up to 85 ha | 6 5/8" | URA6 | 34 to 61m | 2.20-4.22m | 14.9x24 | 16.9x25 |
Up to 150 ha | 8" | URA8 | 30 to 54m | 2.87-4.52m | 14.9x24 | 16.9x25 |
