Linear irrigation System with Tower Box

Linear irrigation System with Tower Box

[Linear irrigation System with Tower Box Tags]

Linear irrigation System

[Linear irrigation System with Tower Box Quick Detail]

Driven by motor tires, linear irrigation system makes reciprocating translational motion in the field, and forms a rectangular irrigation area.
Linear irrigation System with Tower Box

[Linear irrigation System with Tower Box Introduction]

Introcuction of Linear irrigation System with Tower Box

1.Driven by motor tires, linear irrigation system makes reciprocating translational motion in the field, and forms a rectangular irrigation area.

2.There are two ways to supportting water:
1)Channel water supply, host own diesel engines, generators and pumps, the pump suction tube drain own self-cleaning filter. Guidence generally uses cable, channels can be in the middle, can also be placed on one side of the machine;
2)Pipeline water supply, water supply pressure comes from the pipeline. The host may bring their own diesel engines, generators, but also be provided power by special high-strength cable.

Main parts of Linear irrigation System with Tower Box

1. Poly-lined Pipe
Our poly-lined pipe is designed as an alternative to our standard hot-dipped galvanized pipe. POLY-LINE™ combines a tough galvanized exterior with durable polyethylene liner to eliminate problems caused by acidic, corrosive or saline water.
2. Tower Box
The tower box is constructed of white, heavy-wall UV stabilized thermoplastic with a galvanized steel base. Features include a stainless steel cam shaft and adjustable, moisture-resistant directional micros. The rigid base and oversize cam spring enhance the machine alignment characteristics to reduce structural stress.
3. High Floatation Ag Tires
Multiple tire options are available to match your span requirements and soil conditions. Available in 11.2x24,14.9x24, 16.9x24, 11.2x38.
4. Sprinkler Options
Application of water to best fit your crop needs is critical. That’s why we offer the latest in sprinkler packages and latest end-gun options. Products from Nelson®, Senninger® and Komet® are custom to your needs and specifications.

Technical Parameters of Linear irrigation System with Tower Box

Model DPP-135 DPP-190 DPP-245 DPP-300 DPP-360 DPP-421 DPP-505
Totallength of the machine (m) 135, 190, 245 ,300, 360, 421, 505
Pipe (mm) 127, 168 & 219
Length of the span(m) 49.1 , 54.9 & 60.7
Guidence Furrow, cable , buried wire (import)
Power supply method Generator system or drag cable
Water supply method Dragpipe (two-wheeled , four-wheeled); ditch suction (four-wheeled , universal ditch suction)
Watering uniformity ≥90%
Motor power(hp) 10.75 & 1.5
Gear motor RPM 50:1 & 52:1
Tyre 14.9-24

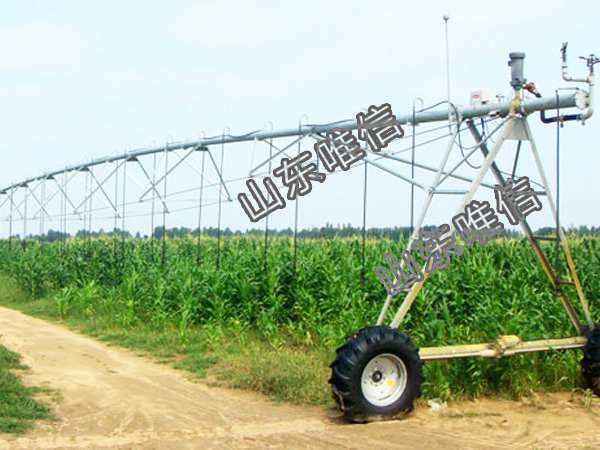

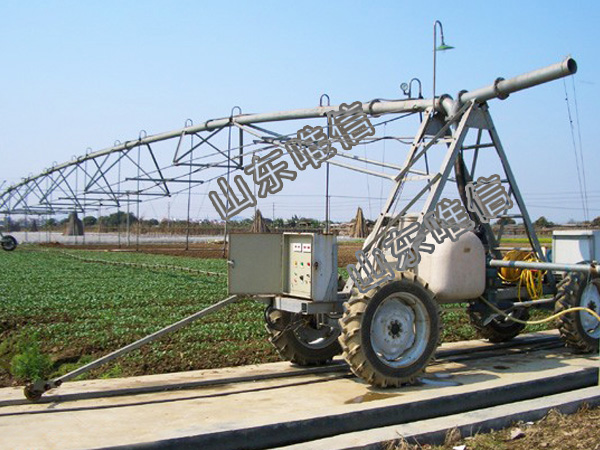

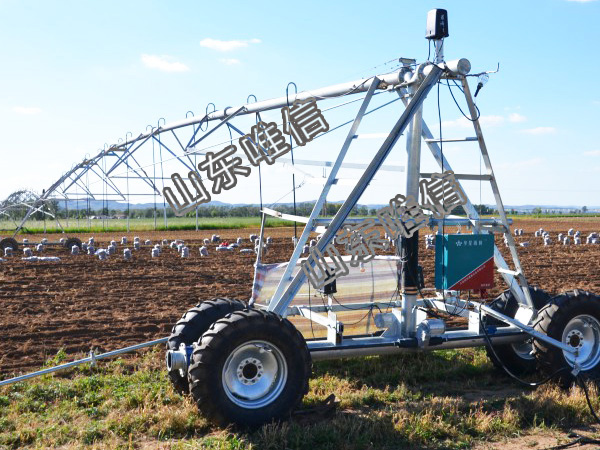

Photos of Linear irrigation System with Tower Box

Linear irrigation System with Tower Box


Linear irrigation System with Tower Box


Linear irrigation System with Tower Box
