Travelling Reel Irrigation System

Travelling Reel Irrigation System

[Travelling Reel Irrigation System Tags]

Reel Irrigation System

[Travelling Reel Irrigation System Quick Detail]

Hose reel irrigation system is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation device and water composition. The key components of water turbines,
Travelling Reel Irrigation System

[Travelling Reel Irrigation System Introduction]

Description of Travelling Reel Irrigation System

Hose reel irrigation system is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation device and water composition.

The key components of water turbines, gearboxes, PE pipe and structural piece are in good or bad quality of the processing technology directly affects the effectiveness and use of the whole operational life.

Features of Travelling Reel Irrigation System

1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.

2.With Characteristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.

3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.

4.Good irrigation quality and uniformity can be up to 85% above.

5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation, pasture and sugarcane spray, power plant and port dedusting.

Parameters of Travelling Reel Irrigation System

Basic Unit

Model

PE-Pipe dia.
mm

PE-pipeLength
m

Max. strip width

Water flow
m3/h

Connection pressure
bar

Nozzle

No. *Dia.
mm

65TX

JP65-220

65

220

36

11.41-38.3

3.0-7.0

13*4.4-7.5

JP65-250

65

250

36

11.41-38.3

3.0-7.0

75TX

65-340TX

65

340

36

11.41-38.3

3.0-7.0

75-300TX

75

300

36

11.41-38.3

3.0-7.0

85TX

75-350TX

75

350

36

11.41-38.3

3.0-7.0

75-400TX

75

400

36

11.41-38.3

3.0-8.0

90-250TX

90

250

36

11.41-38.3

3.0-8.0

90-300TX

90

300

36

11.41-38.3

3.0-8.0

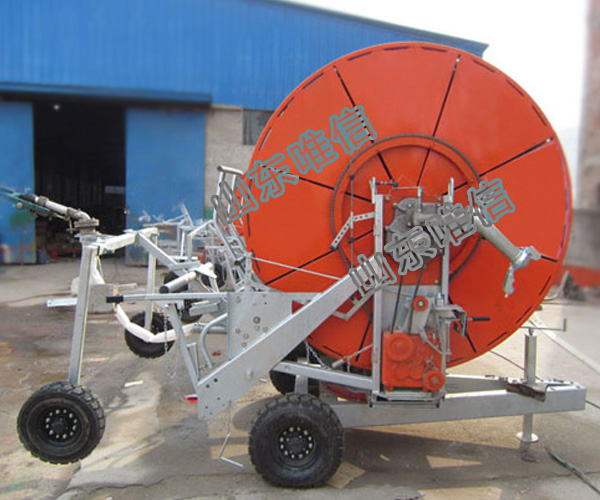

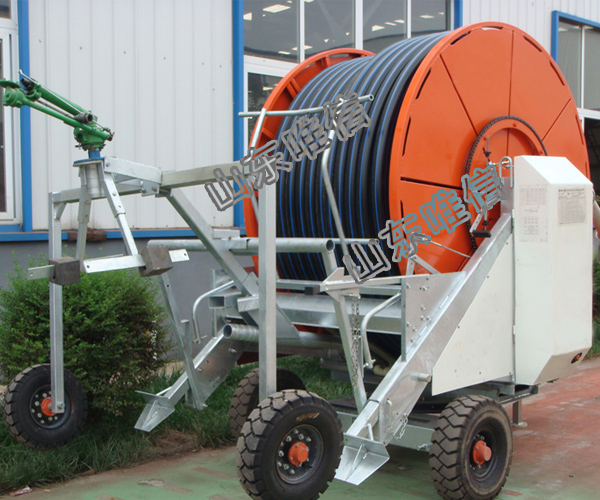

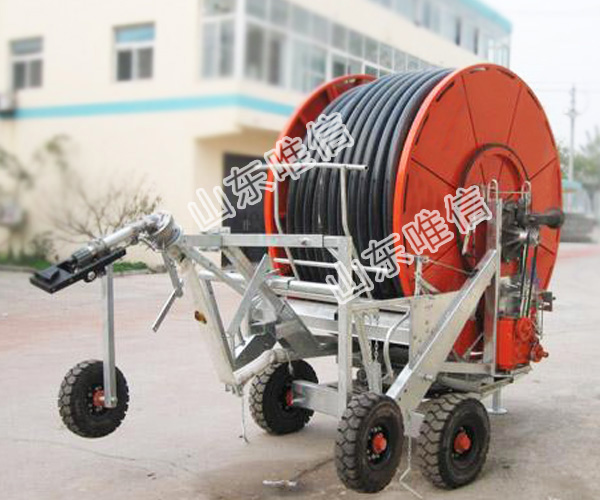

Photos of Travelling Reel Irrigation System

Travelling Reel Irrigation System


Travelling Reel Irrigation System


Travelling Reel Irrigation System
