Water Wheel Agricultural Reel Irrigation

[Water Wheel Agricultural Reel Irrigation Tags]

Agricultural Reel Irrigation

[Water Wheel Agricultural Reel Irrigation Quick Detail]

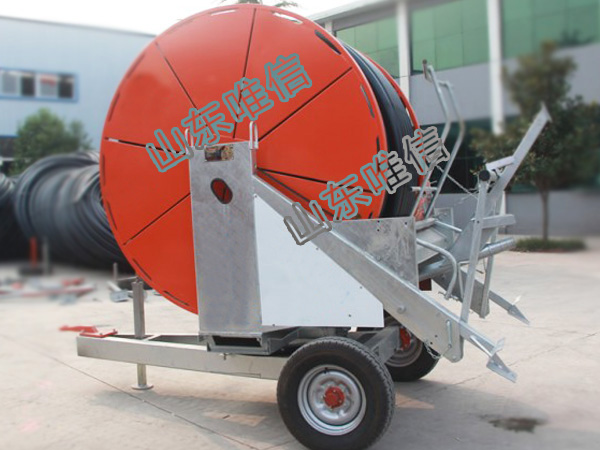

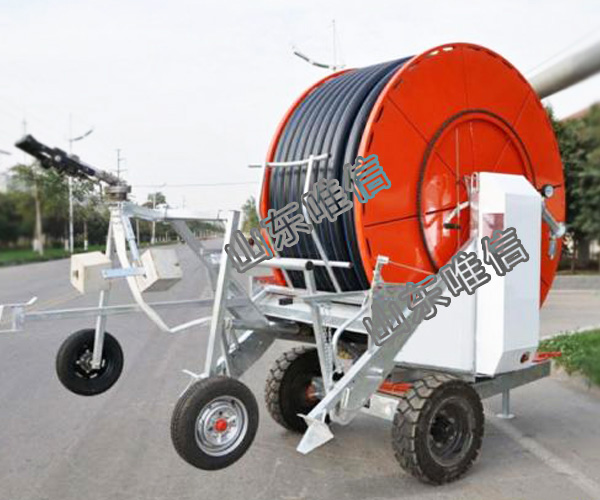

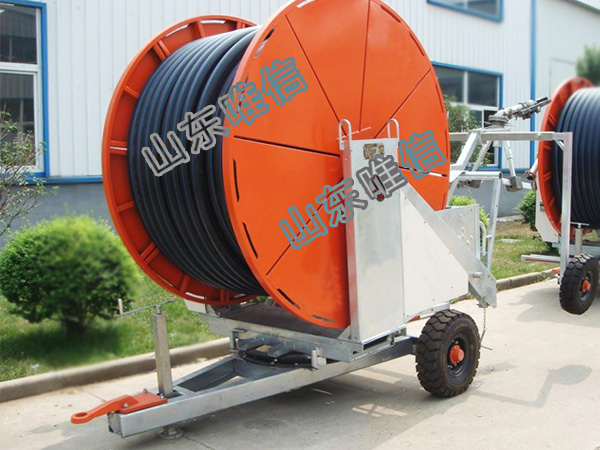

Reel sprinkling machine is able to walk by itself by taking advantage of the kinetic energy of pressure water It mainly consists of chassis, frame,rollPE pipes, automatic speed regulation device, hydr

+86 -537-2350961 sales@chinacoalintl.com Please Leave a Message What can I do for you

[Water Wheel Agricultural Reel Irrigation Introduction]

Specifications of Water Wheel Agricultural Reel Irrigation

1.Material :Metal
2.Size :50.60.75.90
3.Water saving up to 30%

Working principle of Water Wheel Agricultural Reel Irrigation

The pressure water will drive the rotation of the hydro-turbine and the reel plate through neither multi-step speed regulation mechanism to realize the even reversing of PE pipes and sprinkler wagon and at the same lime, enter to the sprinkler through PE pipes or carry out nor mal sprinkling. With simple structure,high automation and adaptability, this product is easy to be Ipirated and may realize multi-sated speed regulation. It is the ideal choice for water saving sprinkling.

Parameters of Water Wheel Agricultural Reel Irrigation

Mode of chassis	Outer diameter of PE pipe (mm)	Length of PF pipe (m)	Service(year)	Single sprin type
				Single sprin type
				Inseide pressure(Mpa)	Sprinkler diameter(m)	Flow quantiy (mVh)	Maximum Sprinkling width(m)


LYPG40	40	125	15	0.35-0.7	9-11	4.3-10.6	32-48
LYPG50	50	125-165	15	0.4-0.76	11-14	6.7-16.5	34-50
LYPG65	65-75	200-300	15	0.5-0.85	14-28	13-50	47-74
LYPG75	65-75	230-320	15	0.5-0.85	14-28	13-50	47-74
LYPG85	75.85.90	230-400	15	0.5-0.85	14-30	13-65	47-90
LYPG90	85.90.100	240-370	15	0.6-1.0	16-72	16-72	57-90
