Mobile Sprinkler Irrigation System In The Greenhouse is suitable for seed breeding, flowers and plants required special irrigation. Generally each greenhouse with a working orbit,one irrigation machin
Contact Us Product Center

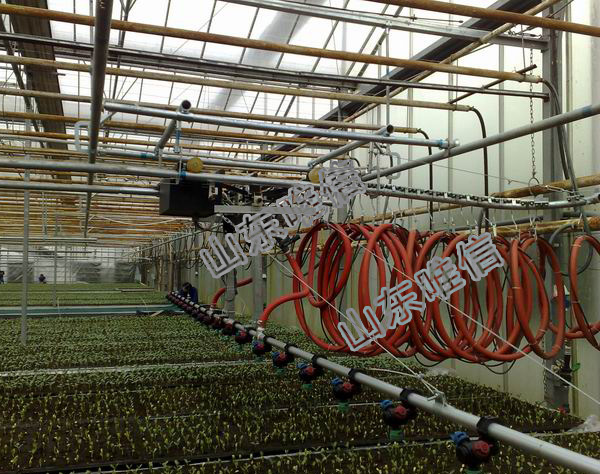

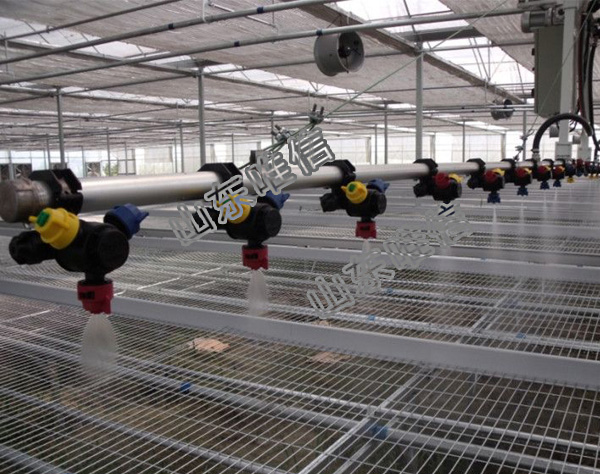

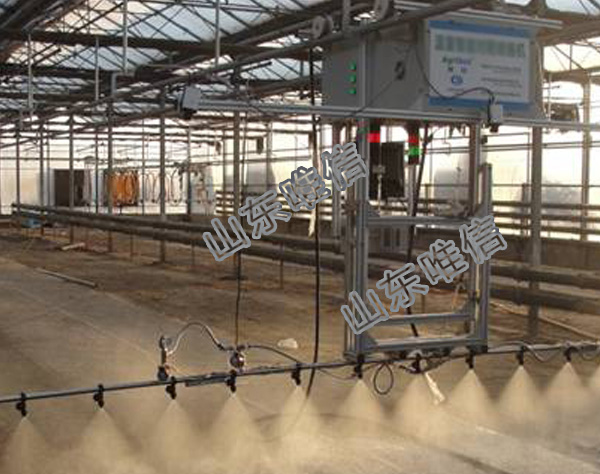

Mobile Sprinkler Irrigation System In The Greenhouse is suitable for seed breeding, flowers and plants required special irrigation. Generally each greenhouse with a working orbit,one irrigation machine irrigates one greenhouse ,if need one machine irrigates multispan greenhouse ,have to set up the transfer orbit,we suggest that one machine use the greenhouse not more than three multispan ,the sprinkler machine transfer from one greenhouse to another greenhouse need the people push it, in order to save the growing area, the transfer orbit usually set up in the greenhouse's road above,. in order to install the electricity and water more easily,where apply the sprinkler ,it has better to set up the road in the end of the greenhouse,when the transfer orbit also set up in the end of the greenhouse.
|
Product Name
|
mobile sprinkler irrigation system in the greenhouse
|
|
Material
|
stainless steel and hot dip galvanized steel
|
|
the running speed
|
4~16.5m/ min
|
|
spray rod length
|
MAX15m
|
|
work schedule
|
MAX60m
|
|
feed water pressure
|
2~5kgf/cm²
|
|
model
|
800067VP,8004VS,8006VS
|
|
flow
|
0.59/min,1.58/min,2.461/min（the pressure 3 kgf/cm²）
|
|
the nozzle height
|
from the crop >400mm
|
|
power of the engine
|
250w
|
|
input the power
|
~220v/PH3/50HZ
|
|
overall dimensions
|
length 900mmXwidth900mmXheight385mm
|
|
the total weight
|
70kg approx
|
