Model 9G series CE Approved Reciprocating Lawn Mower For Tractor takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and
Contact Us Product Center

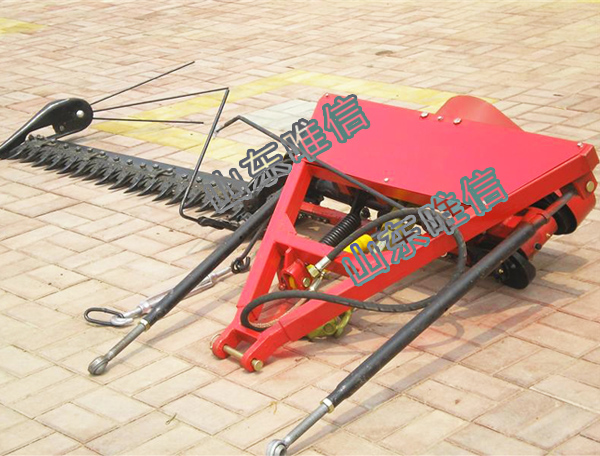

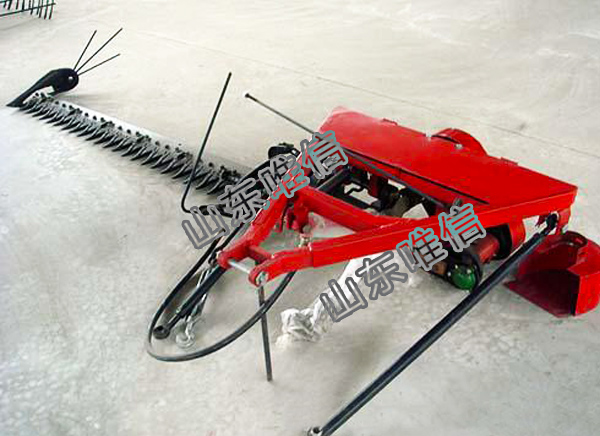

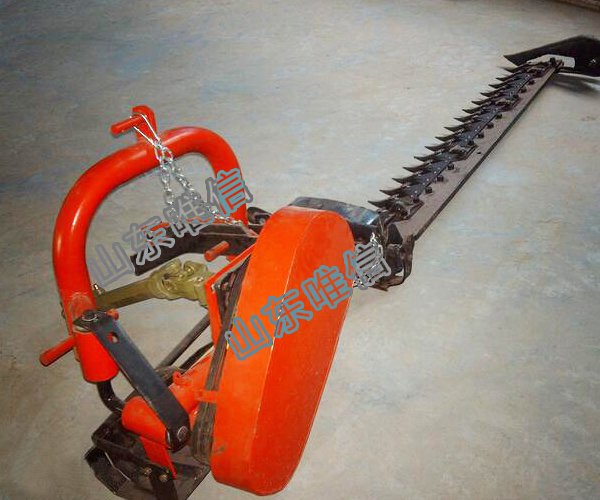

Model 9G series CE Approved Reciprocating Lawn Mower For Tractor takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues is lower after cutting.
♦ This tractor pto cutting mower is a tractor 3-point mounted cutting machine
♦ The moving and fixed cutting blades reciprocate in opposite directions thereby generating less vibration than single knife cutter bars
♦ Easy to operate, durable in use
|
Model |
Unit |
9G-1.4 |
9G-1.6 |
9G-1.8 |
9G-2.1 |
|
Working width |
mm |
1400 |
1600 |
1800 |
2100 |
|
Stubble height |
mm |
50-80 |
|||
|
PTO Rotation speed |
r/min |
540 |
|||
|
PTO shaft spline |
|
Matched with PTO transmission shaft in 6 spline or 8 spline |
|||
|
Total weight |
kg |
120 |
124 |
128 |
135 |
|
Matched power |
hp |
12-20 |
15-20 |
20-30 |
20-30 |
|
Linkage |
|
Three-point suspension |
|||
