Position：Home / Product / ZM900-224 Remote Control Intelligent Lawn Mower

ZM900-224 Remote Control Intelligent Lawn Mower

Date:2024-07-29 Label：

Remote Control Intelligent Lawn Mower

The remote control lawn mower can complete the work of mowing the lawn independently, without direct human control and operation,and has low power, low noise, exquisite and beautiful appearance, and

Introduction Of ZM 900-224 Remote Control Intelligent Lawn Mower

The remote control lawn mower can complete the work of mowing the lawn independently, without direct human control and operation,and has low power, low noise, exquisite and beautiful appearance, and greatly reduces manual operation.

1. Preparation before starting the remote control mower

(1)Be sure to confirm the tightness of screws of all parts before starting up.

(2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote

controller to turn on the remote controller.

b,Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);

c,Pull hard on the pull rope of the hand pull plate to start the engine;

d,Adjust the throttle to the proper speed in time after starting the engine;

e,Operate the remote control to cut grass.

Parameter Of ZM 900-224 Remote Control Intelligent Lawn Mower

	ZM750-196	ZM900-224	ZM1500-452
Overall performance specifications
Application	Weeds, river banks, orchards, slopes, nurseries, lawns, etc.
Packing Dimension	1060mm960mm810mm	1060mm960mm810mm	1170mm1270mm910mm
Machine Dimension	930mm900mm570mm	930mm900mm570mm	1070mm1170mm610mm
Machine weight	136kg	136kg	137kg
Mowing width	550mm	550mm	850mm
Adjustable height of header	10mm-180mm	10mm-180mm	10mm-181mm
Walking speed	0-4km/h	0-4km/h	0-5km/h
Maximum working slope	50	50	51
Minimum ground clearance	10mm	10mm	11mm
Operation mode	remote control
Walking mode	Electric crawler self-propelled
Farthest remote control distance	200m	200m	200m
Engine
Brand	LONCIN/YAMAHA （ZM750-190）	LONCIN	LONCIN
Power	7. 5/ps	9.0/ps	15.0/ps
Form	Vertical axis	Vertical axis	Vertical axis
Stroke	Four stroke	Four stroke	Four stroke
Start mode	Pull rope	Pull rope	Electric/ pull rope

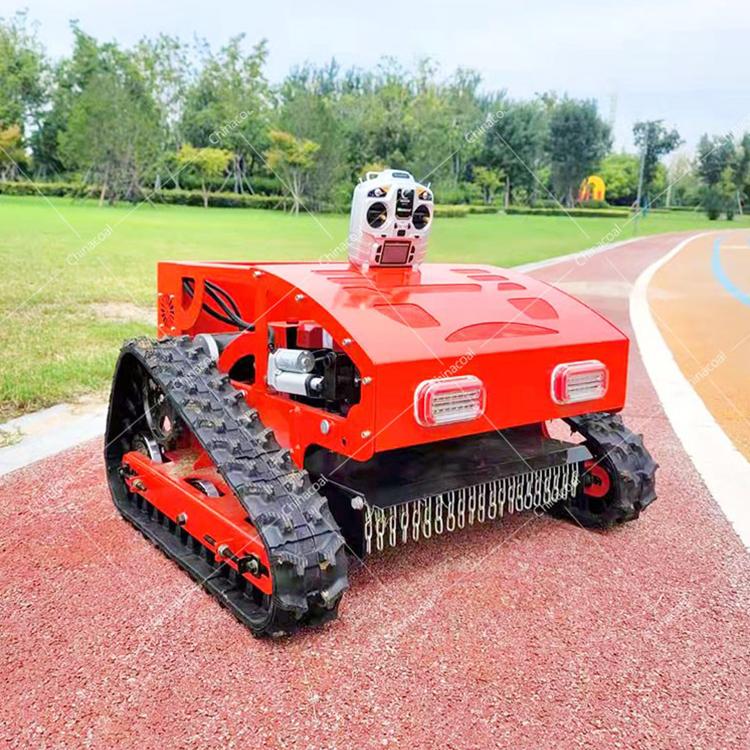

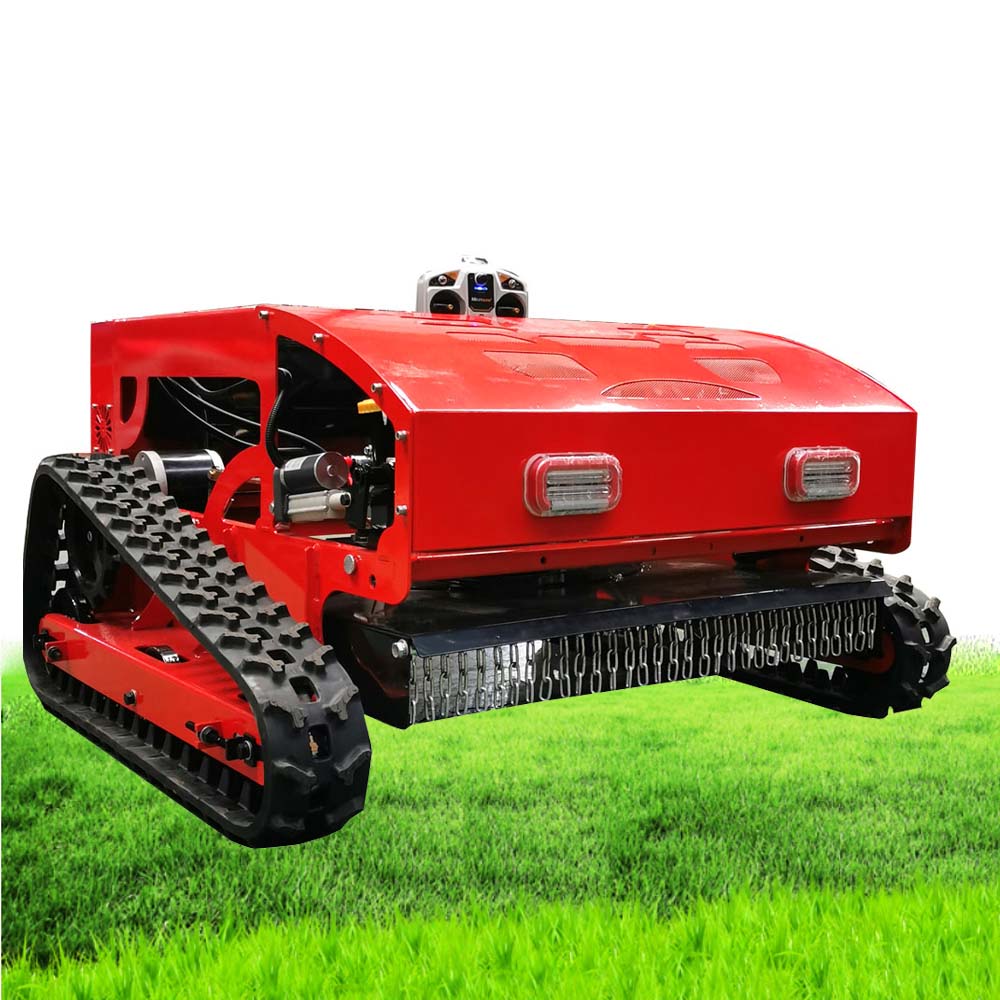

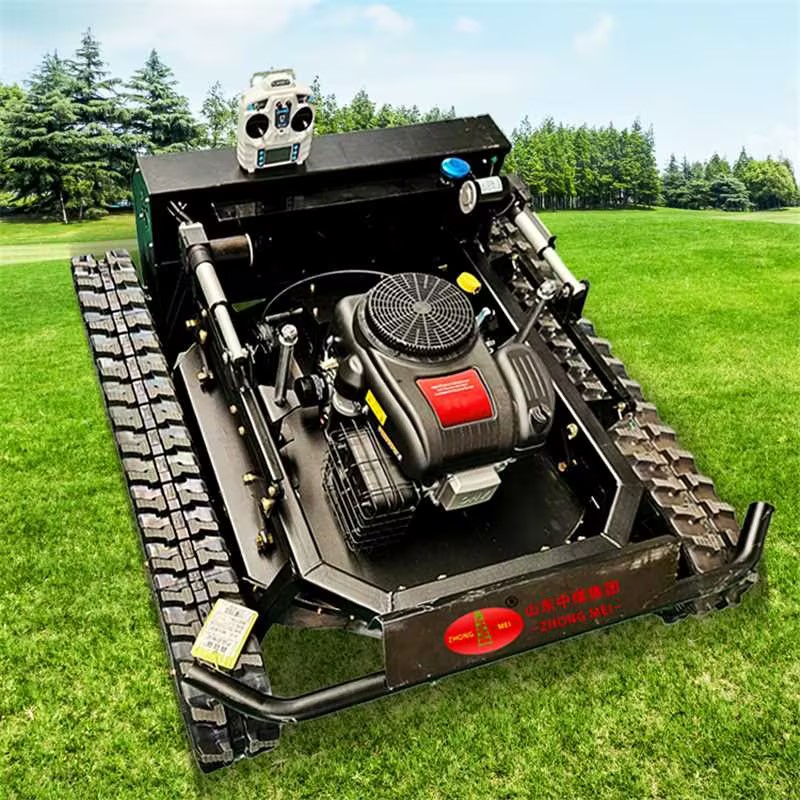

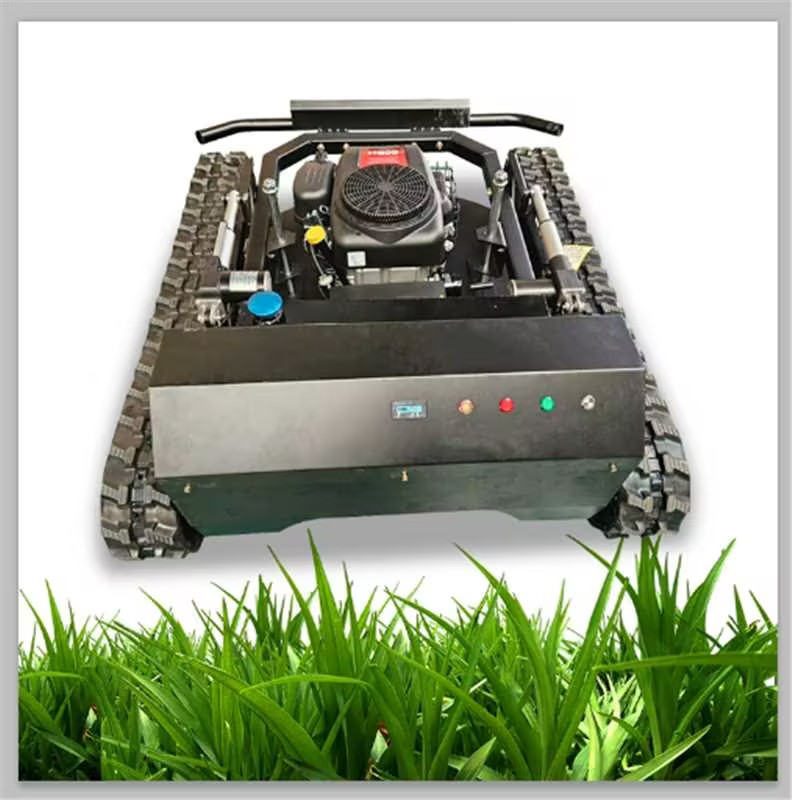

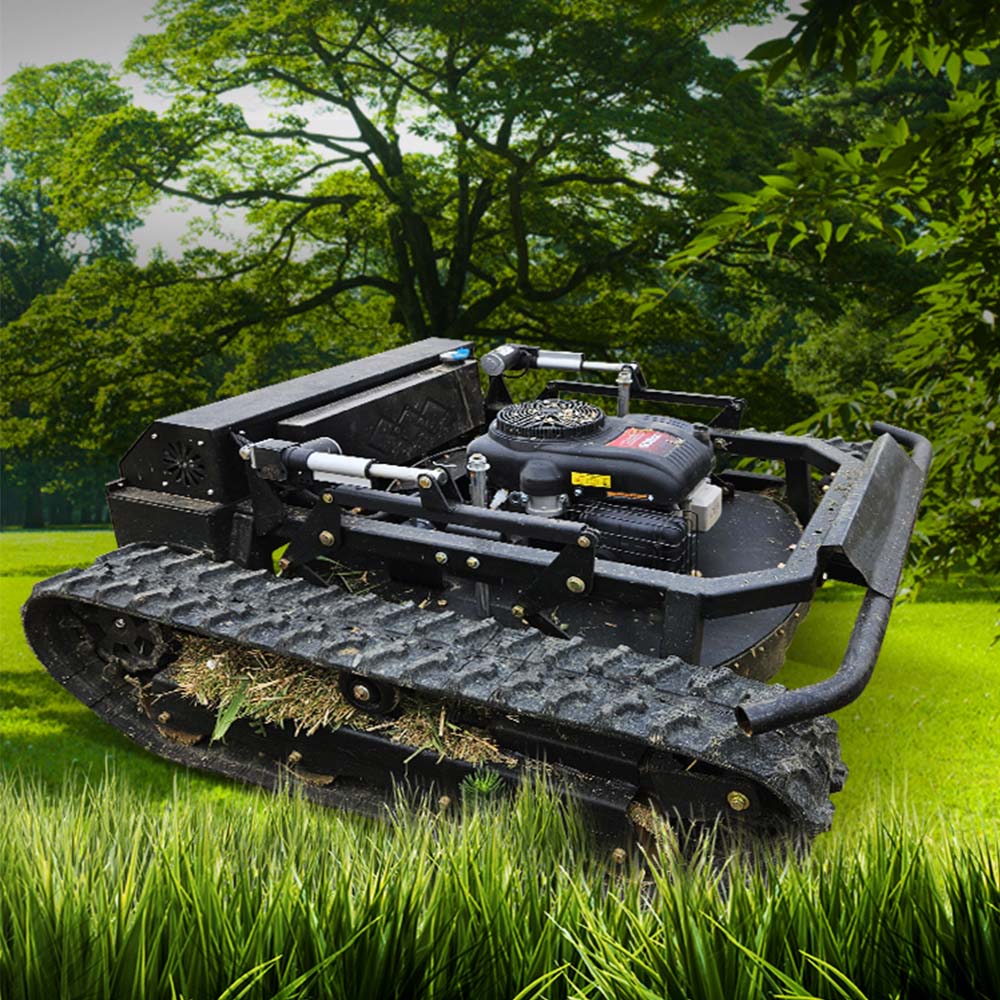

Photos Of ZM900-224 Remote Control Intelligent Lawn Mower

PHOTOS OF
