The Corn Straw Silage Harvester is mainly used for harvesting various stalk still standing on farm, like corn silage, cotton stalk, sorghum and oat straws etc.. For operation, the machine is with mu
Contact Us Product Center

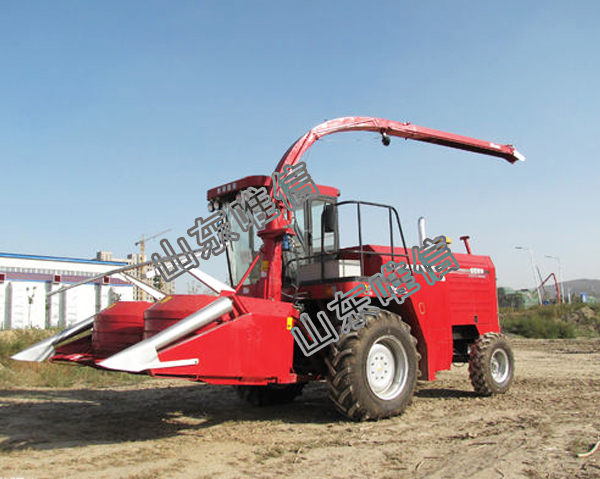

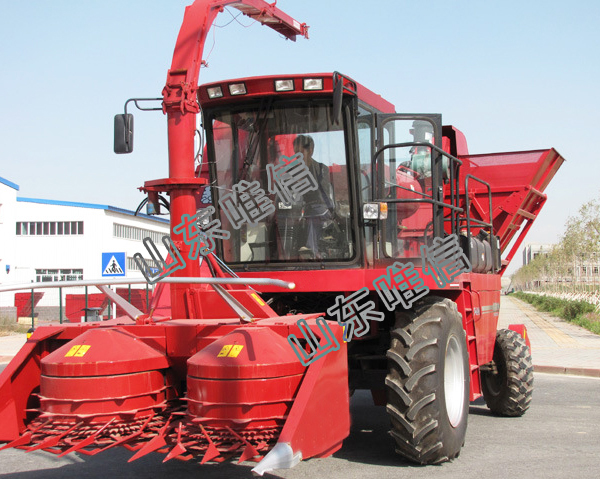

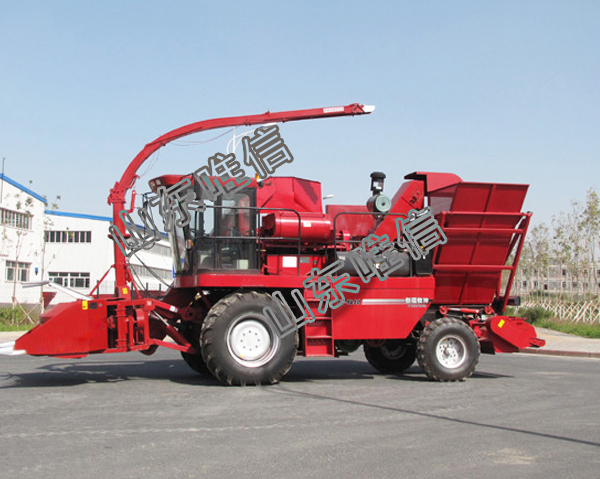

The Corn Straw Silage Harvester is mainly used for harvesting various stalk still standing on farm, like corn silage, cotton stalk, sorghum and oat straws etc.. For operation, the machine is with multi functions, it can finish collecting, choping, kenading, blowing and loading at the meantime.
Corn Straw Silage Harvester consists of main components such as terrain adaptation device, cylindrical
toothed linear feeding device, cutting and throwing device, adjustable rotary loading device, kneading device, etc.
1. Bilateral independent transmission, keep the structure symmetry ;
2. Fan (blower), blender and double speed double shaft, which can avoid blocking ;
3. Wind leaf, local use of carbon fiber material to improve strength
4. Wear-resisting blades, to extend service life
5. 360°adjustable outlet:
|
Model |
Power (HP) |
Working efficiency (hm2/h) |
Chopped stalk length (cm) |
Qty of Blades (pcs) |
Stubble Height (cm) |
Weight (kg) |
Size (m) |
|
RE-1300 |
30-40 |
0.27-0.34 |
3 - 15 |
30 |
8 - 13 |
450 |
1.3*1.65*1.1 |
|
RE-1500 |
50-60 |
0.3-0.4 |
3 - 15 |
40 |
8 - 13 |
550 |
1.3*1.75*1.1 |
|
RE-1800 |
90-100 |
0.4-0.47 |
3 - 15 |
48 |
8 - 13 |
720 |
2.05*1.3*1.1 |
|
RE-2000 |
100-120 |
0.53-0.67 |
3 - 15 |
52 |
8 - 13 |
820 |
2.25*1.3*1.1 |
