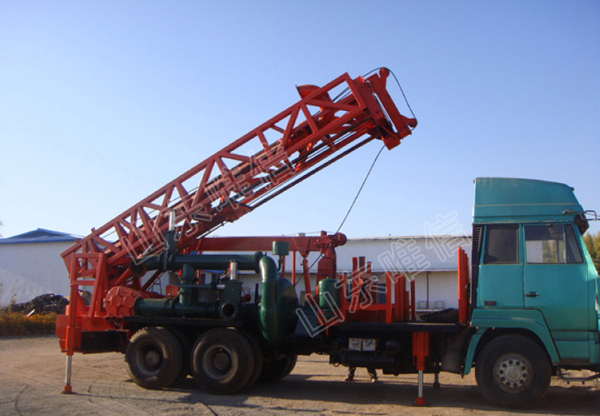

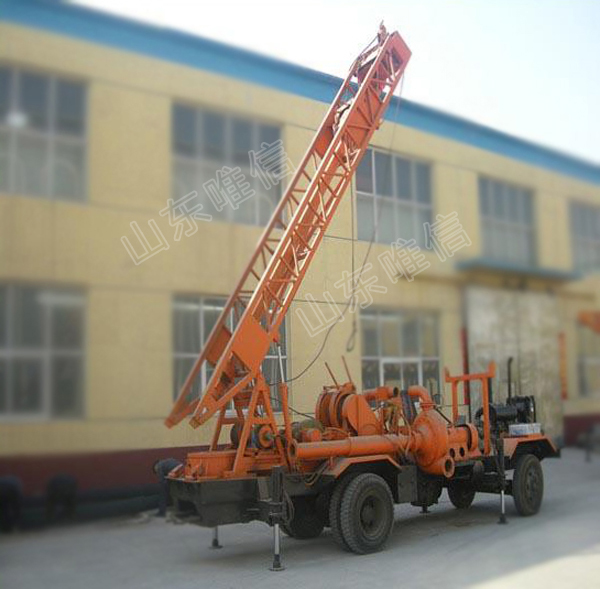

1.This drilling rig is one type of normal-circulation rotator. The chassis of full-trailers is applied in this drilling rig which is being equipped with all-steel meridian tires with good off-road performance.
2.Driven by independent diesel engine, this drilling rig is powerful and full of great force.
3.This drilling rig is equipped with two hoisters, so three-speed (fast-middle-slow) lifting and lowering can be achieved to improve working efficiency of well drilling by big lifting force.
4.Equipped with four hydraulic support legs and two mechanical support legs. Hydraulic mechanical double-locking can be realized by means of oil-cylinder piston rod of each hydraulic support leg.
5.The drill tower applies telescopic structure of internal and external towers whose positioning can be finished through hydraulic cylinder.
6.This drilling rig is fitted with a 50KW generator which is convenient for customers to perform drilling operations.
|
DFT-1500 1000m water well drilling rig
|
|
|
Drilling depth（M）
|
1500
|
|
Drilling diameter(mm)
|
200-1500
|
|
Speed of turntable（r/min）
|
153,89,55,39
|
|
Torque of turntable（KN.m）
|
25
|
|
Speed of single rope of main winch(m/s)
|
0.84,1.90,3.3
|
|
The capacity of mast(t)
|
60
|
|
Single rope lifting capacity of assist windlass(KN)
|
40
|
|
Kelly bar diameter(mm)
|
108*108*12500
|
|
The lifting capacity of hook（KN）
|
60
|
|
Speed of travel(km/h)
|
20
|
|
The height of mast (mm)
|
16500
|
|
Transport size（L*W*H）(mm)
|
15500*2800*4700
|
|
Working size（L*W*H）(mm)
|
11445*3800*19500
|
