1.Safe and stable travelling system 2.Powerful, reliable and durable engine 3.Multi-angle operation,small and easy operation 4.The mini water well drilling machine is suitable for industrial and agric
Contact Us Product Center

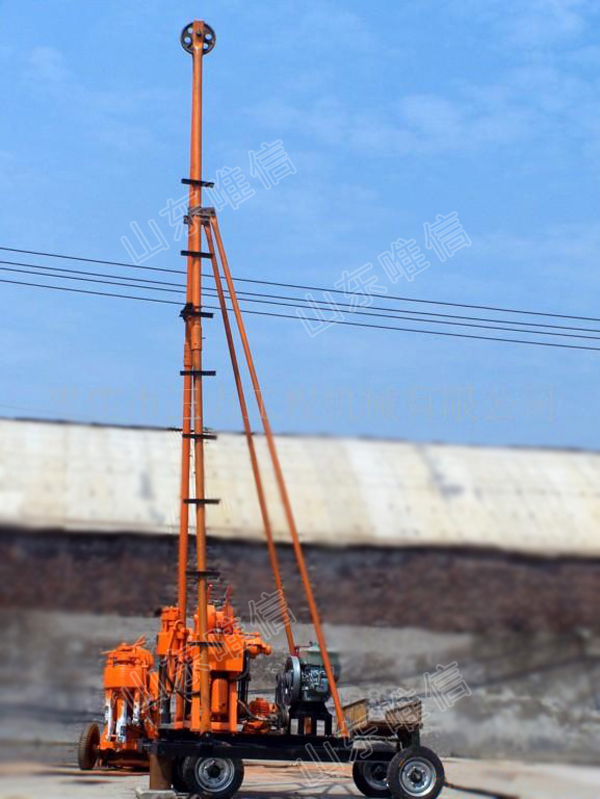

L180 Multi-function geothermal well drilling rig is a lightweight, high efficiency, multi-functional drilling hole equipment.
water well drill rig Features & benefits
2.Powerful, reliable and durable engine
3.Multi-angle operation,small and easy operation
4.The mini water well drilling machine is suitable for industrial and agriculture water well,the dill hole is big and deep,drilling speed is fast,easy to move.
5Greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality
Water Well Drill Rig is particularly applicable to mountain area and rock formation water.
| Parameter Technique: | |
| Model | L180 |
| DIA.hole | φ110-270(4"-10") |
| Drilling depth | 180m |
| Air consumption | 16-30m3/min |
| Working pressure | 10.5-24.6bar |
| Ground clearance | 245mm |
| Support cylinder stroke | 460mm |
| Feed cylinder stroke | 1750mm |
| Feed power | 30000N |
| Lift power | 5T |
| Speed of rotator | 50-100rpm |
| Rotation torque | 3200N.m |
| Climb capacity | 5 |
| Traveling speed | 0-2.5KM/h |
| Drilling components | |
| Hammer | 4",5",6" |
| DIA. Of rod | Φ76mm Φ89mm |
| Length of rod | 2m |
| DIA.hole | φ110-270 |
| Weight | 4500kgs |
| Dimension | 1550*2350*2700 |
| application geological condition | Loose bed and bedrock |
| Drilling type |
Top drive hydraulic rotation and propulsion, DTH percussive drilling or mud drilling |
| Supporting the DTH hammer | Medium to high air pressure |
| Recommended compressor | CY29/23 |
| Air consumption(m³/min) | 29(m³/min) |
| Rated pressure(bar) | 23(bar) |
| Conpressor type | Stationary,Diesel Type |
