Hydrocyclone system is sand & inorganic particle separator with centrifugal action. Hydrocyclone is connected together with angled disc filter to make a complate system for fine filtering of water. Ce
Contact Us Product Center

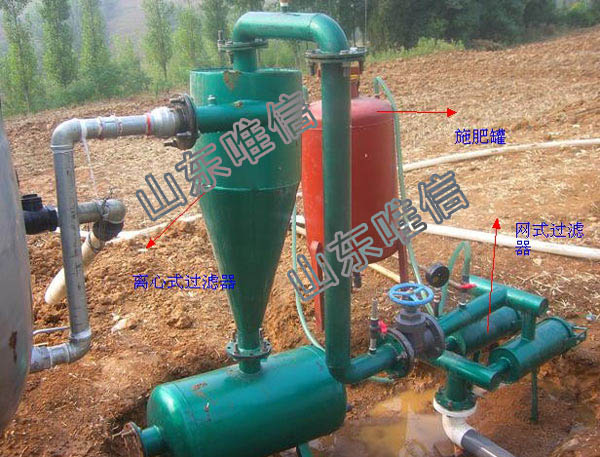

Hydrocyclone system is sand & inorganic particle separator with centrifugal action. Hydrocyclone is connected together with angled disc filter to make a complate system for fine filtering of water.

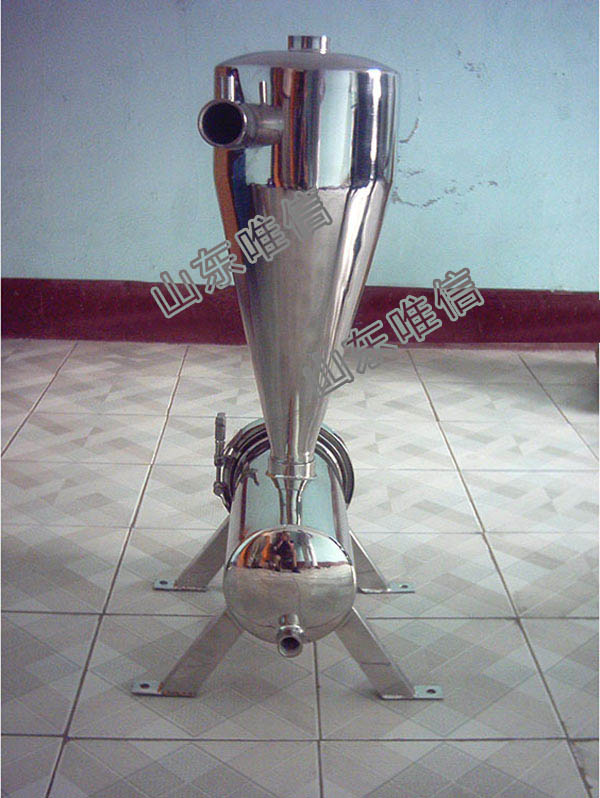

Centrifugal sand filter: 95~98% of sand and other particles can be separated from well water through high-speed water flow.
The centrifugal filter are designed to cover a filtration degree range of 45~150 micron, it can be used individually or combined with other filtration (or fertigation) systems.
| ITEM NO | SIZE | MAX WATER FLUX | MAX PRESSURE | SIZE(mm) | SAND VOLUME | Item weight | ||||||
| A | B | C | D | E | F | G | ||||||
| 8218A-3" | 3" | 50m3/h | 8bar | 1220 | 1070 | 490 | 430 | 205 | 3" bsp/NPT | 3" bsp/NPT | 16L | 17.5kg |
| 8218A-4" | 4" | 100m3/h | 10bar | 1440 | 1260 | 520 | 524 | 250 | 4" bsp/NPT | 4" bsp/NPT | 27L | 28kg |
