1, Bearing: 3/4" Male NPT, Brass 2, Trajectory Angle: 27° 3, Operating Range: 2.0-4.2 bars 4, Flow Rate: 3.9-7.8 GPM (0.89-1.77 m³/h) 5, Radius: 42-51 ft. (12.8-15.5 meters)
Contact Us Product Center

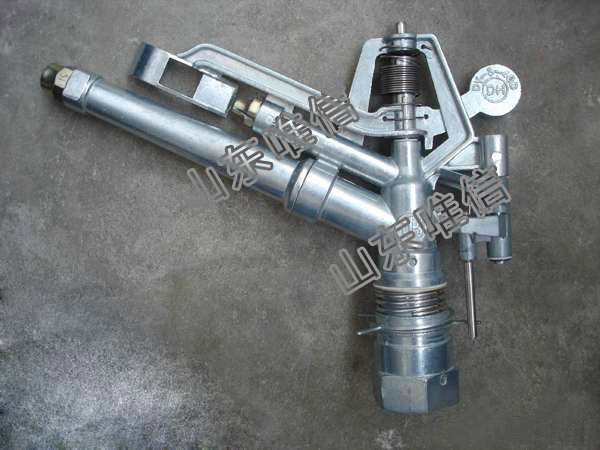

1, Bearing: 3/4" Male NPT, Brass
2, Trajectory Angle: 27°
3, Operating Range: 2.0-4.2 bars
4, Flow Rate: 3.9-7.8 GPM (0.89-1.77 m³/h)
5, Radius: 42-51 ft. (12.8-15.5 meters)
6, Measure (CM/PSC) 40*34*19, weight (KG/PSC) 0.67
7, Used in a wide range of applications. Adjustable trip slip pin converts the sprinkler from part circle to full circle operation. Models are available with keyhole, straight bore, adjustable pin and distance control style nozzles.

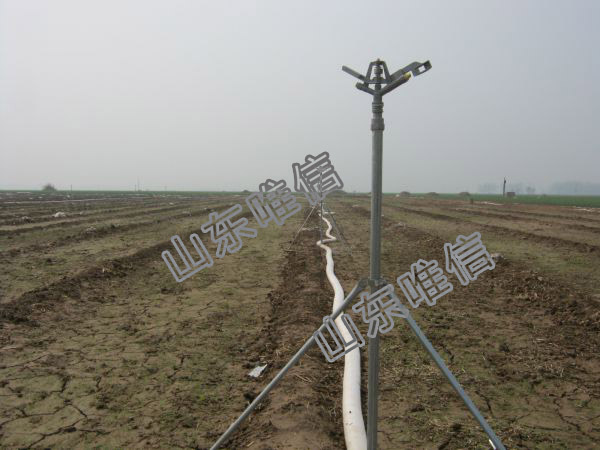

8, Used primarily on Row Crops, Field Crops, Wheel Line Systems, Permanent Systems, Solid Systems, and end-of-line/edge-of-field positions.
1, "Precision jet" arm.
2, Standard spoon style arm also available.
3, Stainless steel springs and fulcrum pin.
4, Chemically resistant washers.
5, have break-up pins
