Hot Sale Hammer Feed Mill 1. 9FQ System small feed hammer mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap,
Contact Us Product Center

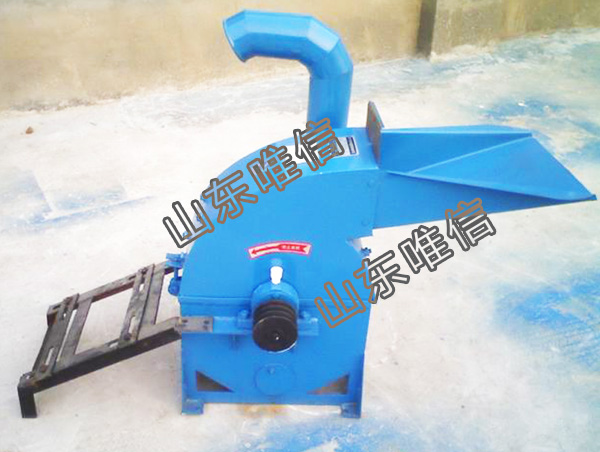

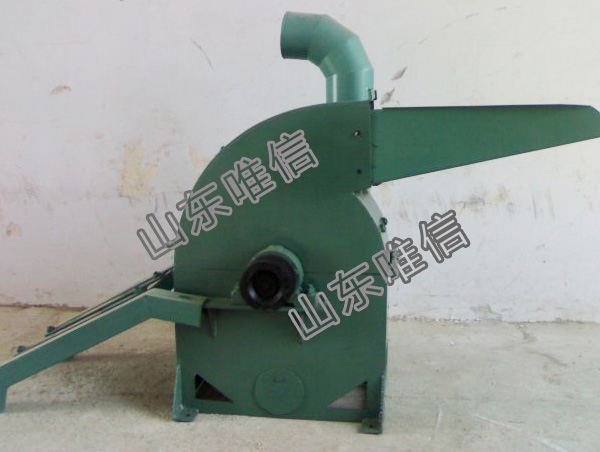

Hot Sale Hammer Feed Mill
1. 9FQ System small feed hammer mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on.
2. This kind of small feed hammer mill is widely used in swine farm, wood factory, etc. Hammer mill is equipped with high carbon steel blade. The raw materials can be crushed into straw particles, whose diameter is 35mm. The durable hammer mill works with high efficiency and gains more good reputation from European users.

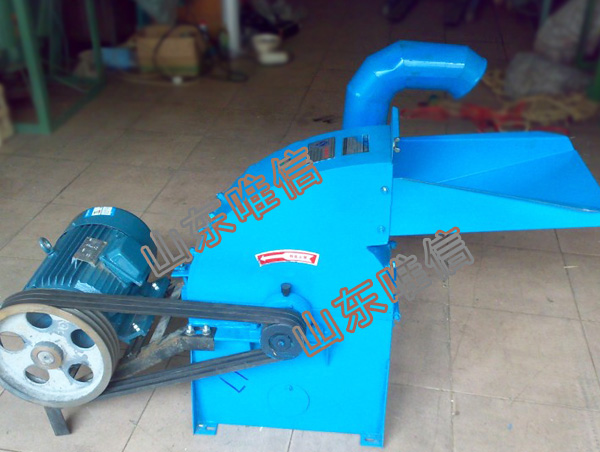

3. The machine could be driven by the diesel engine, motor, tractor, etc.
4. The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector.
| Model | Power(kw) | Output(kg/h) | Size(mm) | Weight(kg) |
| 320 | Single phase 3 | 100-200 | 350*500*850 | 50 |
| 360 | Single phase 4hp | 200-300 | 400*550*850 | 60 |
| 360 | Three phase 5.5 | 300-400 | 650*600*1050 | 110 |
| 400 | Three phase 5.5/7.5 | 400-600 | 700*650*1050 | 160 |
| 420 | Three phase7.5/11 | 800-1000 | 780*700*1100 | 180 |
| 500 | Three phase11/15 | 1000-1500 | 900*850*1250 | 200 |
| 600 | Three phase22 | 1500-2000 | 1350*950*1550 | 505 |
| 700 | Three phase27 | 2000-3000 | 1450*1050*1650 | 735 |
| 800 | Three phase30 | 3000-5000 | 1750*1350*1800 | 1220 |
| 900 | Three phase37 | 4000-8000 | 1950*1550*1950 | 1735 |
| 1000 | Three phase55 | 5000-12000 | 2250*1750*2050 | 2485 |
