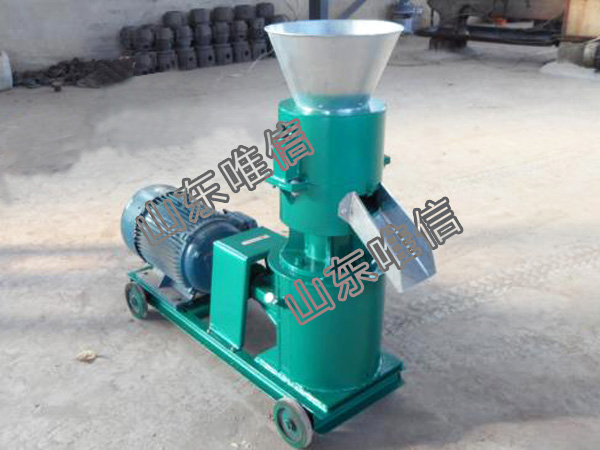

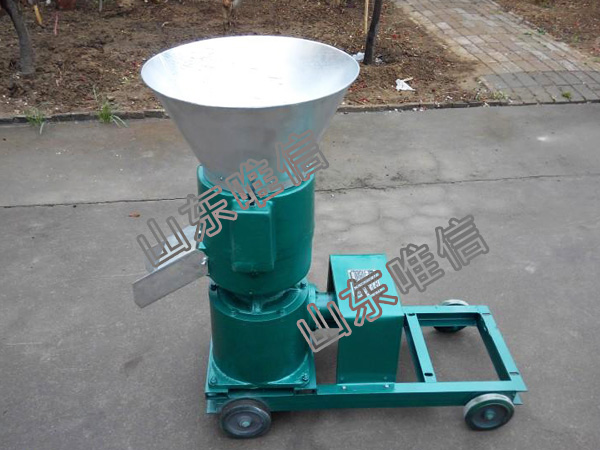

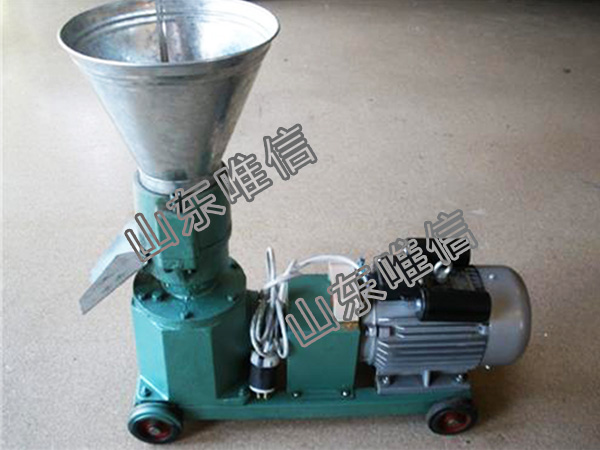

150 Animal Feed Pellet Machine
1. Feed pellet machine is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2.The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;
4. Feed pellet machineis with magnet and over load protection system, which protects the machine during production;
5. Feeder has a variable speed controller to meet different outputs requirements;
6. Feed pellet machine makes gear directlyconnecting as the driver, and is with quickelease die fixed by clamps, which will increasethe output by 15% when compared to a machine with a belt conveyrer;
7. Feed pellet machine bearing and oil seal in the main drive are imported from Japan to ensure highly efficient, stability and high quality;
8. Feed pellet machie's alloy steel die is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality. Parameter of 150 Animal Feed Pellet Machine
| Product Name | Model |
Power (KW) |
Capacity (T/H) |
Dimension L×W×H (MM) |
Weight (T) |
Pellet Diameter (MM) |
||||
|
Feed pellet machine |
105 | 2.2 | 0.06-0.1 | 600×400×500 | 0.042 | 4-6 | ||||
| 120 | 3 | 0.07-0.1/0.01-0.03 | 1150×300×550 | 0.105 | 4-6 | |||||
| 150 | 7.5 | 0.1-0.3/0.02-0.05 | 1280×480×820 | 0.2 | 4-6 | |||||
| 200 | 11 | 0.3-0.5/0.05-0.1 | 1300×500×850 | 0.26 | 4-6 | |||||
| 250 | 15 | 0.4-0.7/0.1-0.3 | 1400×600×1000 | 0.56 | 4-6 | |||||
| 280 | 22 | 0.5-0.8/0.2-0.4 | 1720×600×1200 | 0.7 | 4-8 | |||||
| 300 A/B | 30/22 | 0.6-1/0.3-0.5 | 1800×670×1600 | 0.76 | 4-8 | |||||
| 2-350 | 37 | 0.5-1 | 1800×850×1300 | 1.5 | 4-10 | |||||
| 2-450 | 45 | 1-1.5 | 1800×850×1400 | 1.8 | 4-10 | |||||
