Heavy-Duty Disc Harrows are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields,they can also be us
Contact Us Product Center

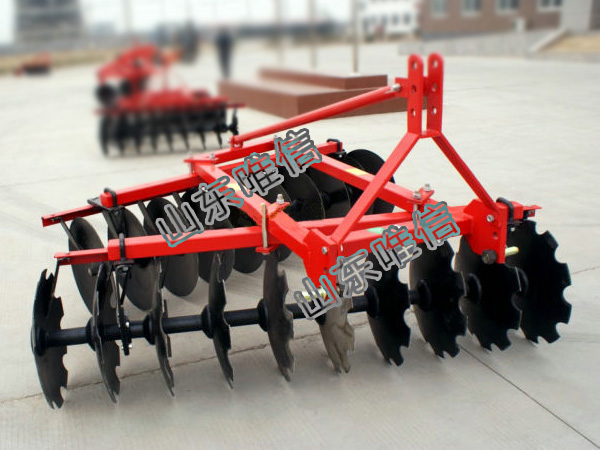

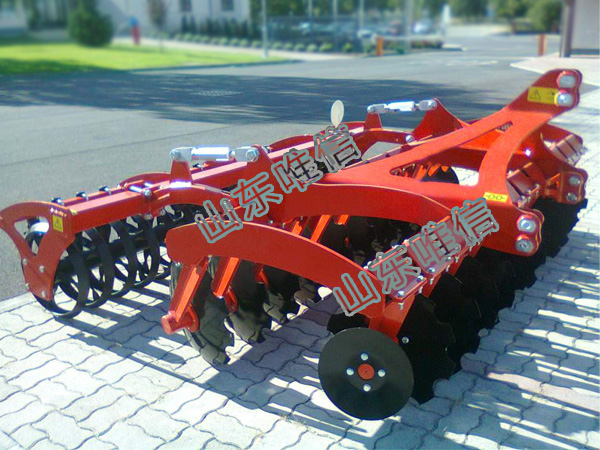

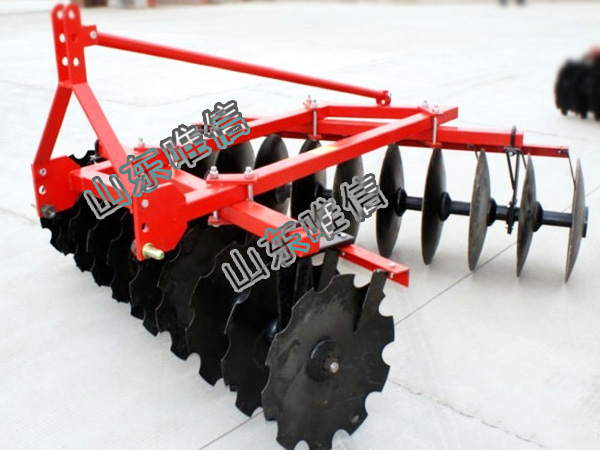

Heavy-Duty Disc Harrows are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields.The series products are all fitted with hydraulic rubber wheel for transportation. It is easy to be transported and chang directiong on the edge of fields.
| Model | Unit | 1-1.8 | 1-2.2 | 1-2.5 | 1-3.0 | 1-3.4 |
| Overall dimension | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2 | 2.5 | 3 | 3.4 |
| Working depth | cm | 20 | 20 | 20 | 20 | 20 |
| Blade spacing | mm | 230 | 230 | 230 | 230 | 230 |
| No of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia.of disc | mm | 660 | 660 | 660 | 660 | 660 |
| Transport clearance | mm | >160 | >160 | >160 | >160 | >160 |
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | kw | 44-55 | 52.9-66.2 | 55-73.5 | 58.8-88 | 66.2-100 |
