3WP800-16 Tractor Mounted Boom Sprayer

3WP800-16 Tractor Mounted Boom Sprayer

Date:2015-06-12     Label:

spray machine

tractor mounted boom sprayer

orchard boom sprayer

3WP1000-18 Tractor Mounted Boom Sprayer is developed independently by our company. It is a multipurpose, self-propelled, high ground clearance medium agricultural plant protection machinery. This mac

Contact Us Product Center

Introduction of 3WP800-16 Tractor Mounted Boom Sprayer

3WP1000-18 Tractor Mounted Boom Sprayer is developed independently by our company. It is a multipurpose, self-propelled, high ground clearance medium agricultural plant protection machinery. This machine adopts the patent technology of drive axle and hydraulic torque converter technology, and has characters of good drive performance, compact structure, convenient operation, flexible steering, high ground clearance and convenient maintenance. It can be widely applicable to soil preparation of paddy field and dry field a variety of crop spraying, fertilizer and other assignments.

Parameters of 3WP800-16 Tractor Mounted Boom Sprayer

 Model

Unit

3WP800-14

3WP800-16

3WP1000-18

Type


4×4

Dimension

 Length

mm

5030

5500

5500



Width

mm

2030

Height

mm

3440

Tread

mm

1880

Wheelbase

mm

2695

Tyre

mm



Deep mud lug tyre for dry and paddy field

Ground clearance

mm

1070

Depth in muddy field

m

≤0.4,

instantaneous single tyre≤0.5

Structure weight

kg

2990

2995

3010

Max. operate weight

kg

3950

3955

4170

Theoretical running speed

Forward

km/h

7.57,19.08

 Reverse

km/h

7.57,19.08

Min. Steering radius

m

7.2±0.3

Spray width

m

14( add side-blown to reach 18)

16

18

 Liquid tank capacity

L

800

1000

 Pump displacement

L/min

130

 Water suction pump


Independent 1 inch patrol engine

 Cabin or canopy


 Option

A/C (for cabin)


 Option



Type




Steering System

Independent oil, full hydraulic steering


Steering pump


HLCB-D08/06


Constant current flood pump





BZZ-160


Steering machine



 Full hydraulic steering

Hydraulic lifting pump


CBN-E304 Turning left





MPa

0.3~0.5

Spray system

Rated working pressure



Safety valve open pressure

MPa

0.6


 Spray nozzle


ST/SC110-04

Electric

system

 Voltage system

V

 Single line

 Minus earth

 Battery


6-QA-120

Maintenance-free lead-add battery

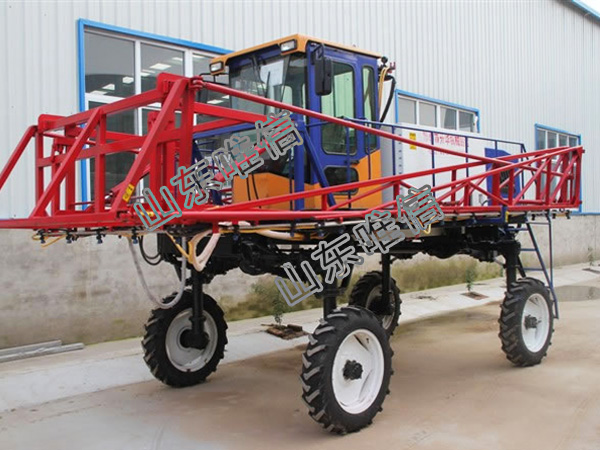

Pictures of 3WP800-16 Tractor Mounted Boom Sprayer

3WP800-16 Tractor Mounted Boom Sprayer


3WP800-16 Tractor Mounted Boom Sprayer


3WP800-16 Tractor Mounted Boom Sprayer

PHOTOS OF

3WP800-16 Tractor Mounted Boom Sprayer
