Automatic Straw Mini Round Hay Baler is widely used in collecting and bundling dry and green grass, straw, wheat stalk, corn stalk. It is convenient for transportation, reserve and deep processing, an
Contact Us Product Center

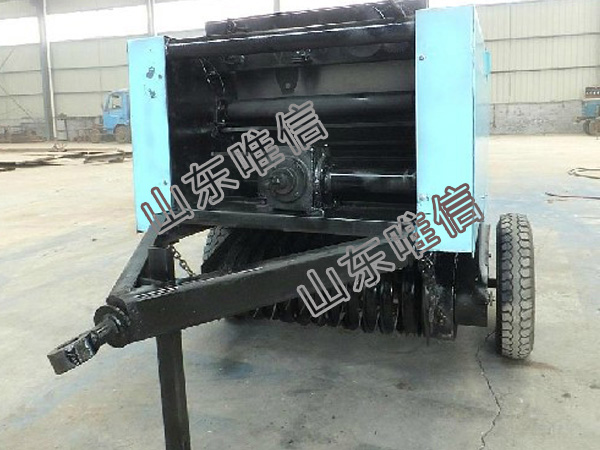

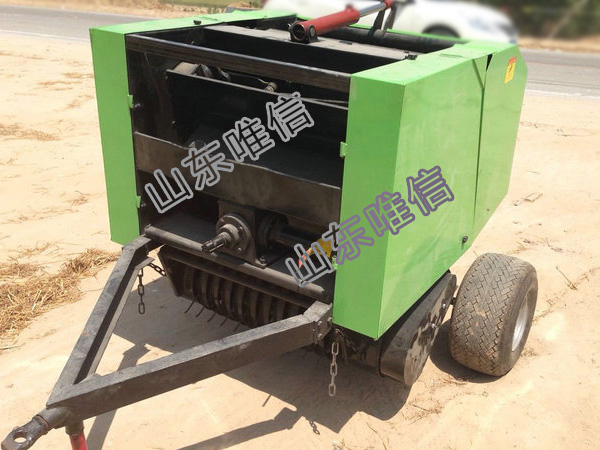

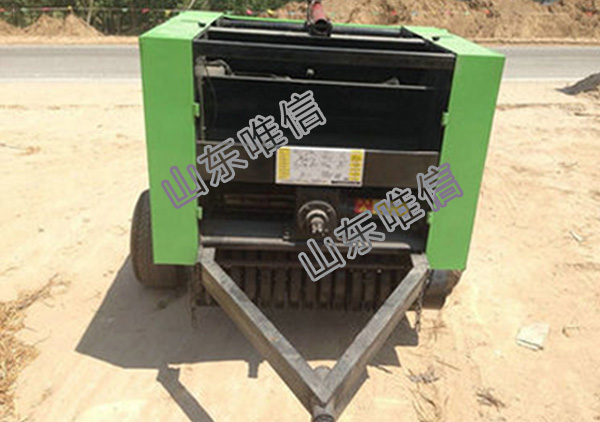

Automatic Straw Mini Round Hay Baler is widely used in collecting and bundling dry and green grass, straw, wheat stalk, corn stalk. It is convenient for transportation, reserve and deep processing, and it is match with envelop machine to achieve the enveloping of ensile.
advantage
1)The size of the bale is even, steady and firm
2)High capacity and low loss rate
3)Multifunction for the pasture , the rice, the wheat straw
4)Easy for operating and maintaining , stable performance
Working theory:
1.This machine is suitable for the tractor with more than 18-45 horse
power. 2.This machine is composed of the picking system, rolling pressing system, threading system and bale locating system which bales the soft culm and grasses (rice straw, wheat straw, grass etc) fully automatic. The finished density of the bale is about 90kg/m³.
|
Model |
ZFDK-800 |
ZFDK-1000 |
|
Power |
18-30 HP |
25-50 HP |
|
Capacity |
5-6 acre/h |
8-10 acre/h |
|
Working width |
800 mm |
1000mm |
|
Weight of bundle |
15-20kg |
35-40kg |
|
Straw bundle size |
Diameter 500 Length 800 mm |
Diameter 700 Length1000mm |
|
Dimension |
1200*1070*1160 mm |
1250*1400*950mm |
|
Weight |
413 kg |
800kg |
