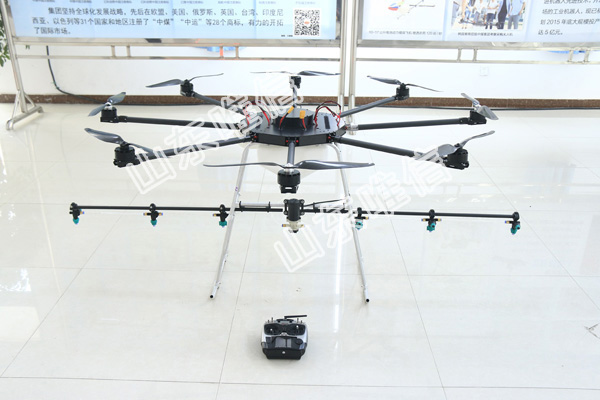

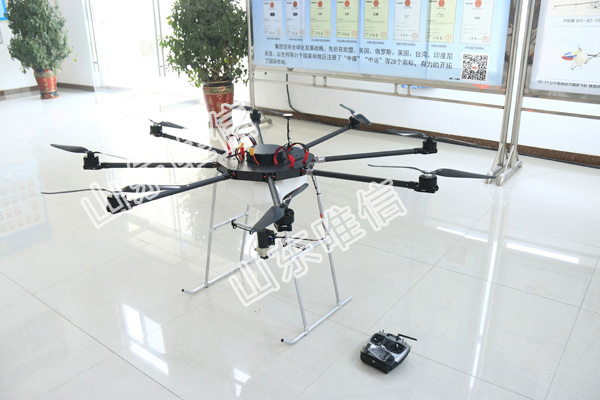

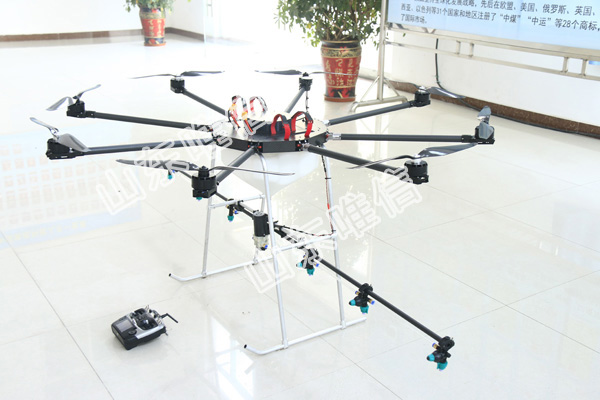

10 Kg Agriculture Drone Uav Crop Dusters Sprayer

Specification

FH-8Z-10

Size(L*W*H)

1350*1350*600mm

Aircraft folding size

800*800*600mm

Aircraft weight

15kg

Maximum takeoff weight

29kg

Aircraft pesticide load

10kg

Propeller

23inch carbon fiber plant protection special propeller

Spraying task system

1 sets of kit, dispersion spray system, booster pump

Remote control

2.4G nine channel

Power battery

High performance lithium polymer lithium battery (22.2V/16000mA)

charger

High power lithium battery balance charging equipment (can charge 2 pcs at the same time, half an hour full)

UAV self stabilization system

yes

Spraying system

Diffuse atomization nozzle (a group of *6)

Motor speed

1200rpm/min

Aircraft endurance time

10～15 min

Spraying height

Field operation0.5-4meter

Spraying area

6meter

Control efficiency

1～3acre/minute

Spray flow

0.25-0.75L/min(multi nozzle) adjustable

Flying speed

0 -8m/sec(can be adjusted according to needed speed)

Flying height

0～200meter

Hover

Arbitrary position direction air hover

Flight attitude

Flying in any direction, can be reversed to fly, emergency brake

Takeoff / landing time

≤1 minute

Body material

Carbon fiber

Temperature range

-15℃～40℃

Battery power performance

Charge-discharge 300-500times

Rack life

≥5year

Maximum efficiency

200-500acre/day
