Boom sprayer is used together with the tractor of which the power is over 20hp to spray chemical herbicides, pesticides, or fertilizer, etc. It is mainly used for soil treatment, seedling herbicides a
Contact Us Product Center

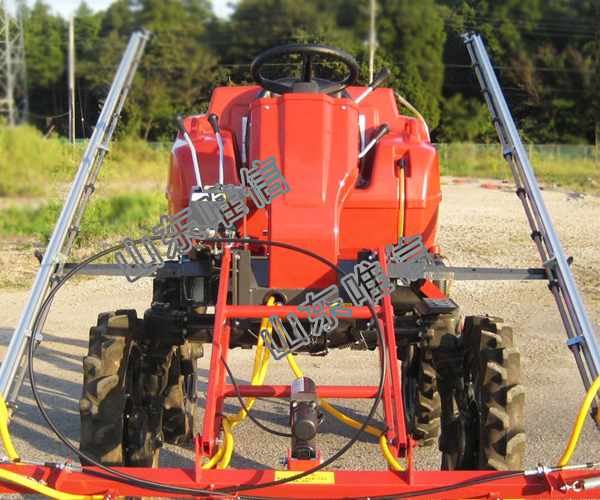

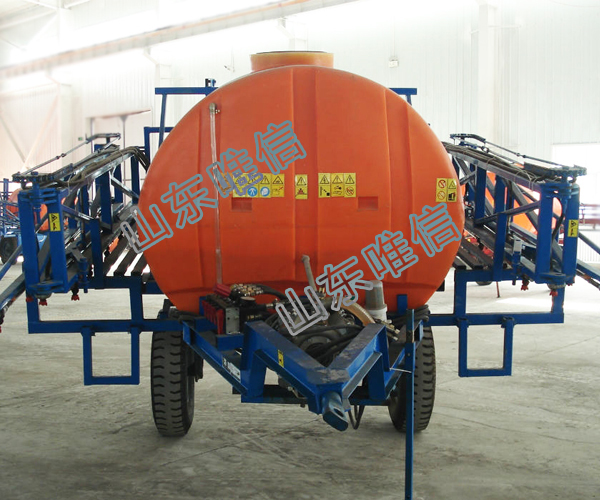

Boom sprayer is used together with the tractor of which the power is over 20hp to spray chemical herbicides, pesticides, or fertilizer, etc. It is mainly used for soil treatment, seedling herbicides and pest control of wheat, soybeans, corn, rice, cotton, potato and other crops as well as herbs, grass, garden flowers and other plants. Also, ORIOLE boom sprayer is applicable for using in golf courses, soccer fields and other grasslands that require efficient insecticide spraying in a wide area.
Since oriole ULV sprayer has reliable performance, simple operation, light weight. And it is deal electric spraying equipment for sterilization and disinfection. It has been exported to many countries such as USA, Brazil, Germany, Turkey, Austria, Greece, Netherlands, Thailand, India, Malaysia, New Zealand, Australia, Indonesia, Myanmar, and Morocco, to name a few.
|
1. Parameters of boom sprayer |
|||
|
Matched power |
Over 12.3KW(18hp) of the tractor |
||
|
Spray pressure |
0.2~1(Mpa) |
||
|
Spray rate |
6.5M/8.5M |
||
|
Productivity |
When the unit speed is 6Km/h, the operating area is 0.6 hectares |
||
|
Recommended height of nozzle to the ground |
500 (mm) |
||
|
2. Parameters of boom sprayer components |
|||
|
Volume of liquid tank |
Refer to model configuration table |
||
|
Stirring style |
Reflux |
||
|
Style of liquid pump |
Triplex plunger pump LS-30C |
||
|
Diaphragm pumpMB240-2.5 |
|||
|
Power of liquid pump |
1.5~3HP |
||
|
Rotation speed of liquid pump |
Triplex plunger pump |
900 rev/ minute |
|
|
Diaphragm pump |
600 rev/ minute |
||
|
Flowing volume of liquid pump |
Triplex plunger pump |
30 L/ minute |
|
|
Diaphragm pump |
40 L/ minute |
||
|
Sprinkler head |
|||
|
Style |
Plastic anti-dripping nozzle |
||
|
No. |
12 (6 meters) |
||
|
16 (8 meters) |
|||
|
Distance |
500(mm) |
||
|
The installation angle of nozzle in relative to main spray boom |
5° |
||
|
Fog phase angle |
110° |
||
|
Spray boom |
Truss |
2pcs types: three sections (6 meters), five sections (8 meters) |
|
|
Folding style is manual folding style. |
|||
