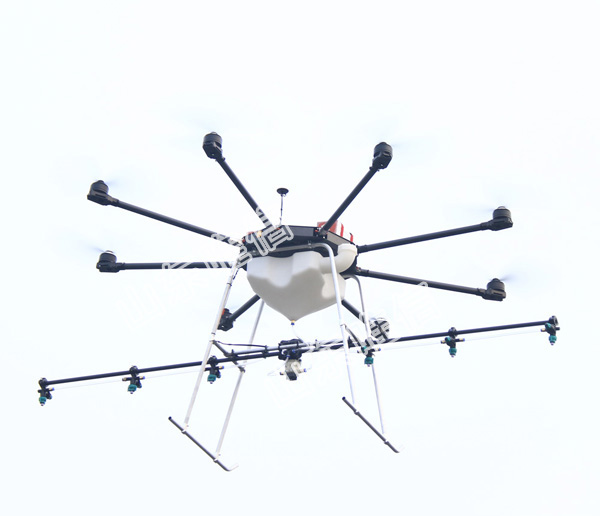

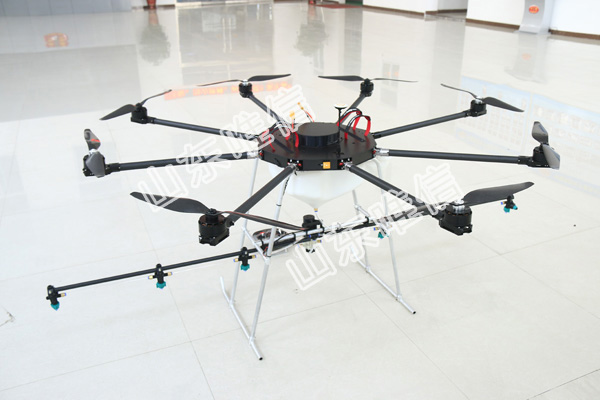

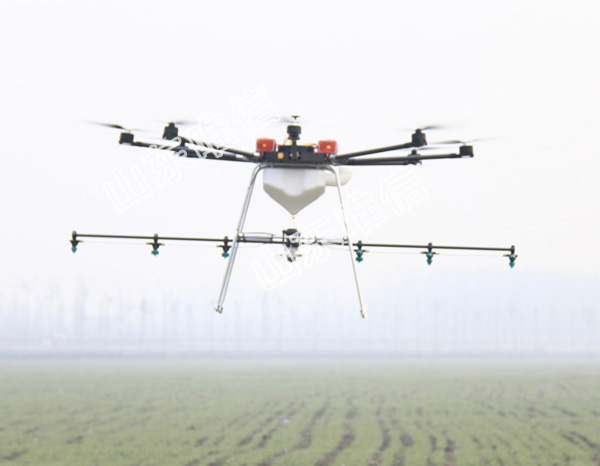

Agricultural Crop Sprayer Drone has the advantages of Payload increased, Low cost, Easy Operation, Environment-friendly, Excellent Crop Spraying
Contact Us Product Center
1.Payload increased.
2.Low cost.
We are manufacturer of Agricultural Crop Sprayer Drone, so its price is competitive.
3.Easy Operation.
Agricultural unmanned helicopter can take off vertically which effectively lowers the operation difficulty and the risks. Flying at low altitude of several meters, the spraying effect can be controlled in the active area. It is suitable for all kinds of complex terrain farmlands and the crops and woods of different heights. The spraying operation skills of agriculture unmanned helicopter can be mastered via simple training.
4. Environment-friendly
The dosage of pesticide is reduced, so it can minimize the pollution of pesticide to the environment and crops. It is not harmful to the operator in the distances when dusting, and the labor intensity is reduced dramatically.
5. Excellent Crop Spraying
While Agricultural Crop Sprayer Drone utilizes the strong downward rotating airflow to flip and shake the crops when spraying, it comes into being a turbulent area above the crops underneath. The crop spraying is very uniform and partial pesticide is dusted on the back of stem and leaf, the quality of crop spraying of which the manpower and other spraying equipments can not achieve. As the cyclone under the helicopter is concentrated and powerful, it is easier to form a layer of membrane through the fluff surface of the plants to kill the pests uniformly and effectively by utilizing the ultra-fine pulverization dusting.
|
Specification |
Model:FH-8Z-5 |
|
Size(L*W*H) |
1150*1150*500mm |
|
Aircraft folding size |
435*435*500mm |
|
Aircraft weight |
7kg |
|
Maximum takeoff weight |
14kg |
|
Aircraft pesticide load |
5kg |
|
Propeller |
15 inch carbon fiber plant protection special propeller |
|
Spraying task system |
1 sets of kit, dispersion spray system, booster pump |
|
Remote control |
2.4G Nine channel |
|
Power battery |
High performance lithium polymer lithium battery (22.2V/16000mA) |
|
charger |
High power lithium battery balance charging equipment (can charge 2 pcs at the same time, half an hour full) |
|
UAV self stabilization system |
yes |
|
Spraying system |
Diffuse atomization nozzle (a group of *6) |
|
Motor speed |
1200rpm/min |
|
Aircraft endurance time |
10～15min |
|
Spraying height |
Field operation 0-200 M |
|
Spraying area |
4 meters |
|
Control efficiency |
1～3 acre/min |
|
Spray flow |
0.25-0.75L/min(multi nozzle) adjustable |
|
Flying speed |
0 -8meter/second(can be adjusted according to needed speed) |
|
Flying height |
0～200meter |
|
Hover |
Arbitrary position direction air hover |
|
Flight attitude |
Flying in any direction, can be reversed to fly, emergency brake |
|
Takeoff / landing time |
≤1minute |
|
Body material |
Carbon fiber |
|
Temperature range |
-15℃～40℃ |
|
Battery power performance |
charge-discharge 300-500 times |
|
Rack life |
≥5 years |
|
Maximum efficiency |
200-300acre/day |
