1. Irrigation Drip Hose Drip Pipe are manufactured from LDPE using advanced extrusion technology. 2. Excellent characteristics of LDPE provide durable tubing with close dimensional tolerances. 3. UV S
Contact Us Product Center

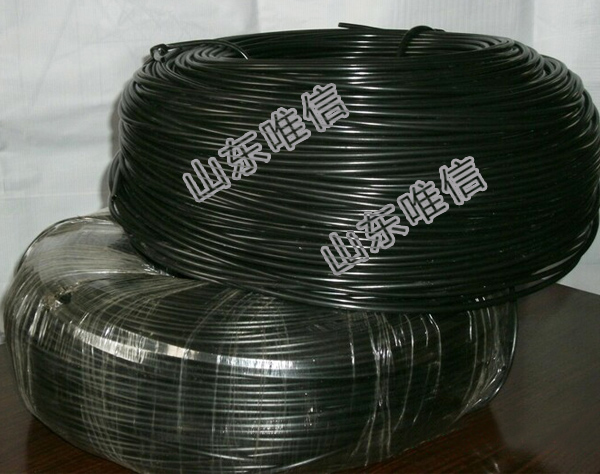

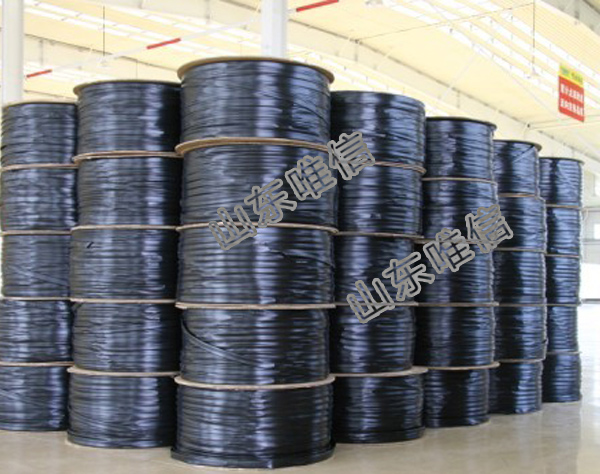

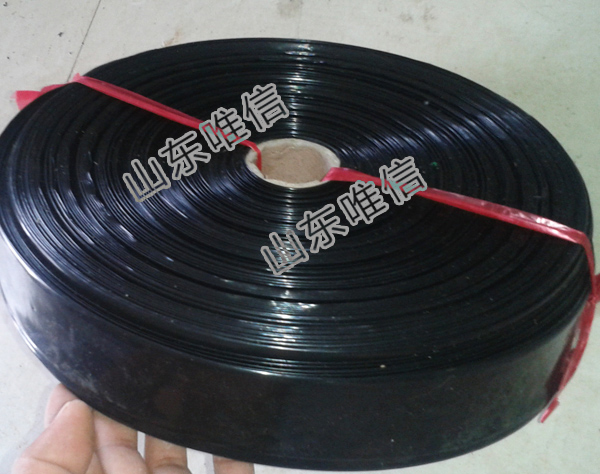

1. Irrigation Drip Hose Drip Pipe are manufactured from LDPE using advanced extrusion technology.
2. Excellent characteristics of LDPE provide durable tubing with close dimensional tolerances.
3. UV Stabilised .
4. No environment effects.
5. diameter:16, 20, 25, 32, 40 etc.
6. The wall thickness could be designed depending on your need .
| Diameter(mm) | Nominal Pressure(MPa) | Thickness(mm) | Length(m/roll) | Weight(Kg/roll) | Packing Size(cm*cm*cm) |
| 40 | 0.40 | 3.0 | 270 | 90 | 130*130*50 |
| 40 | 0.25 | 1.9 | 370 | 90 | 180*180*50 |
| 32 | 0.40 | 2.2 | 400 | 80 | 120*120*50 |
| 32 | 0.25 | 1.6 | 370 | 62 | 115*115*50 |
| 25 | 0.40 | 1.8 | 500 | 65 | 107*107*50 |
| 25 | 0.25 | 1.4 | 600 | 67 | 107*107*50 |
| 20 | 0.40 | 1.8 | 700 | 70 | 100*100*50 |
| 20 | 0.25 | 1.3 | 800 | 60 | 100*100*50 |
| 16 | 0.40 | 1.2 | 500 | 22 | 72*72*33 |
| 16 | 0.25 | 1.0 | 500 | 20 | 72*72*33 |
