diesel water pump, diesel water pumps for farm use, agricultural diesel water pump
Contact Us Product Center

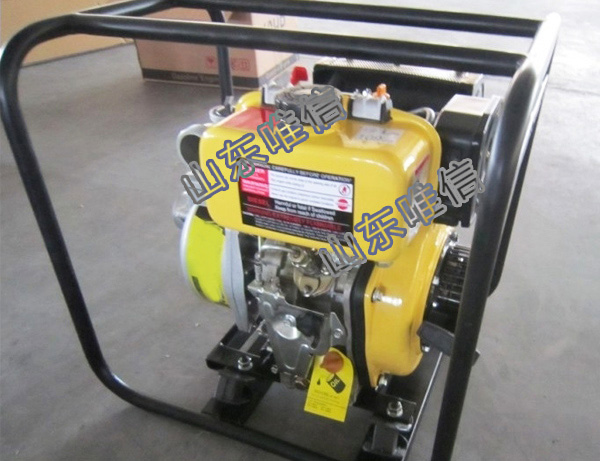

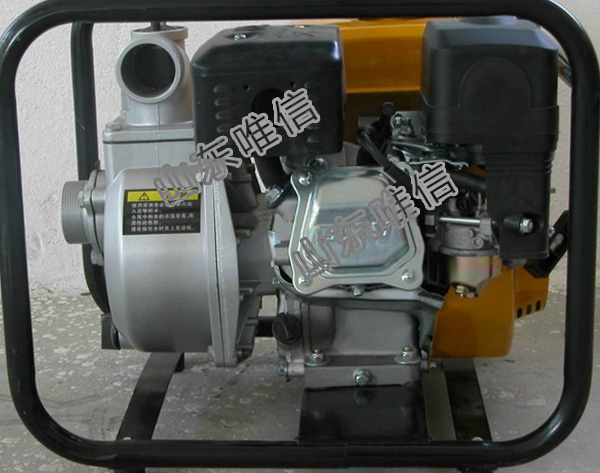

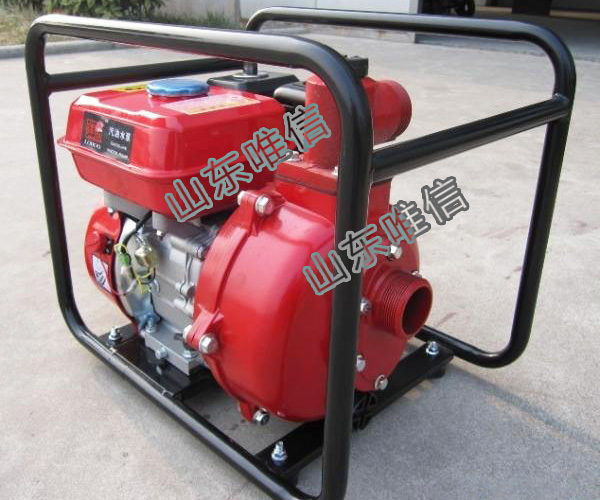

All Diesel Water Pumps For Farm Use are ideal for industrial application or agricultural applications.
All pumps have silicon carbide mechanical seals that resist corrosion, wear better and heat better than a standard seal.
The long lasting high end silicon carbide seal are suited for heavy duty applications such as pumping contaminated and abrasive fluids.
The cast iron impeller and volute will reduce vibration and wear on the mechanical seal and engine, allowing them to last longer for semi trash operations.
Excellent fuel consumption: average operating time for single tank of fuel: 12 hours Auto-return decompression for efficient starting at all temperature conditions Easy-cleanout, durable aluminum.
|
Type |
1-Cylinder,4-stroke,Air-cooled diesel engine |
1-Cylinder,4-stroke,Air-cooled diesel engine |
|
Work capacity |
211cm³ |
296cm³ |
|
Max.output |
4.2HP/3000rpm |
7.0HP/3000rpm |
|
Starting system |
Recoil |
Recoil |
|
Fuel tank capacity |
2.5L |
2.5L |
|
Engine oil system capacity |
0.75L |
1.1L |
|
Water Pump |
|
|
|
Diameter of outlet(inch) |
2inch |
3inch |
|
Max.delivery lift |
23m |
28m |
|
Suction height |
7m |
7m |
|
Max.water displacement |
22m³/hr |
36m³/hr |
|
Size and weight |
|
|
|
Overall dimension(L*W*H) |
53*41.5*50CM |
56*45*55CM |
|
Dry weight |
36KGS |
47KGS |
