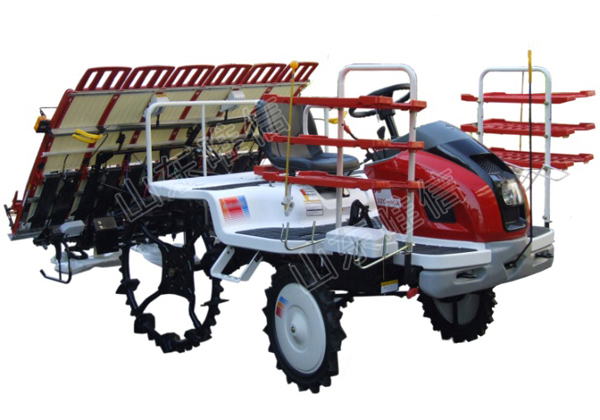

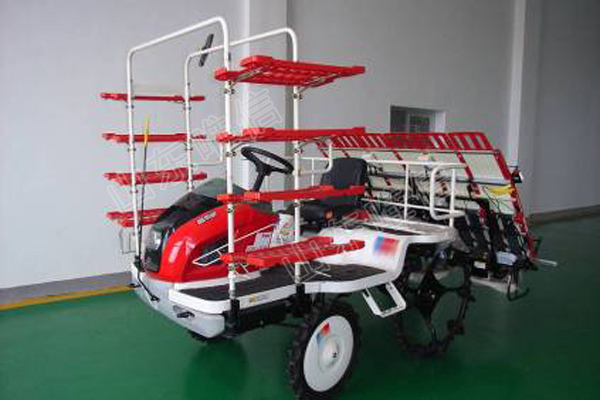

Paddy Rice Transplanter

Model

2ZG-6DK

Size       L x W x H   (mm)

3075×2200 ×1620

Minimum height   (mm)

350

Weight     (kg )

625

power

Model

GX610K1

Type

4-stroke OHV air-cooled gasoline engine

Rated   Power    (kw/ps)

10.3/14

Maximum  power   (kw/ps)

11.8/16

Maximum  speed  (rpm)

3600

Fuel

Unleaded petrol(93#/97#)

Capacity   (L)

20

Running

Driving Mode

Four-wheel drive

Wheel

Front  (mm)

Solid tire   650

Rear   (mm)

Convex rubber antihelix 900

Variable speed

HMT

Number

forewords two gears, backwards one gear

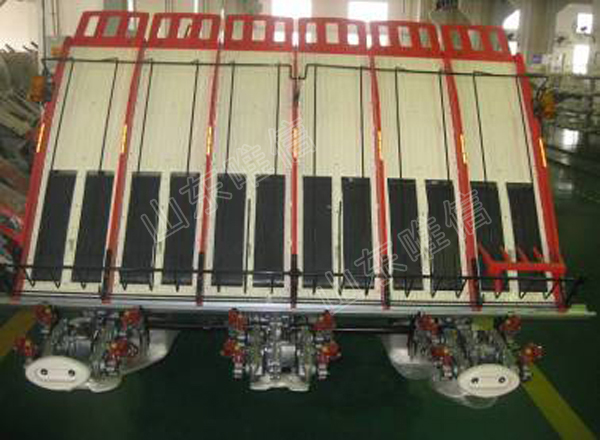

Transplanter

Type

Rotary

Rows

6

Row spacing   (cm)

30

Seedling spacing   (cm)

22,18,16,14,12

Plants (each 3.3m2)

50,60,70,80,90

Depth (mm)

14-44   (six gears)

Balance  device

TBS (Manually or automatically)

Adjust the volume

Horizontal(Times)

18,20,26

Vertical   (mm)

8-17

Transplanting  speed    (m/s)

0-1.45

productivity

(hm2/h)

0.27-0.6

(Mu / h)

4-9
