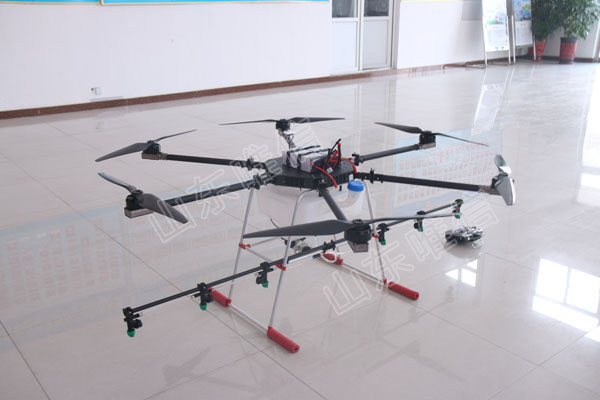

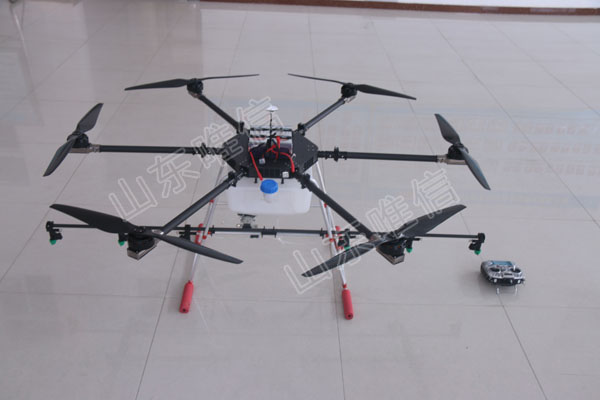

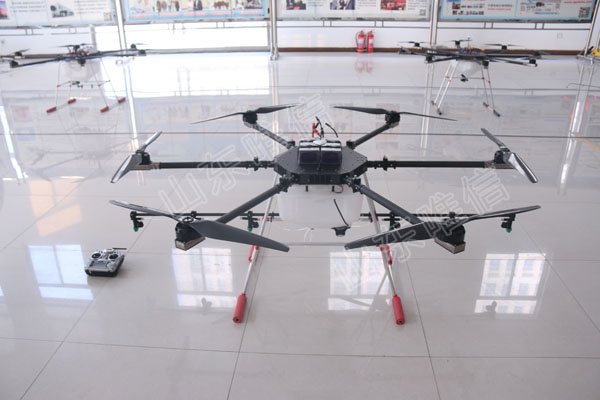

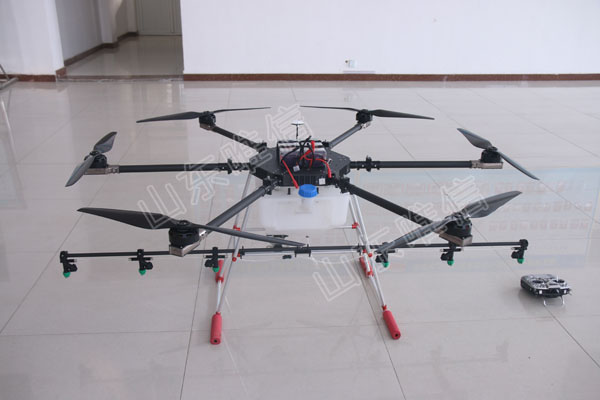

Remote Control Agriculture UAV Drone with 3 meters, operating area above 1000 acres/day,
A Remote Control Agriculture UAV Drone width 6 meters of UAV operating area above 2400 acres/day, team work can spray larger area.
Much higher efficiency than conventional spray at least 12 times, when pest outbreaks can meet the requirement of rapid culling, implement prevention and control management system.
|
Specification |
FH-8Z-10 |
|
Size(L*W*H) |
1350*1350*600mm |
|
Aircraft folding size |
800*800*600mm |
|
Aircraft weight |
15kg |
|
Maximum takeoff weight |
29kg |
|
Aircraft pesticide load |
10kg |
|

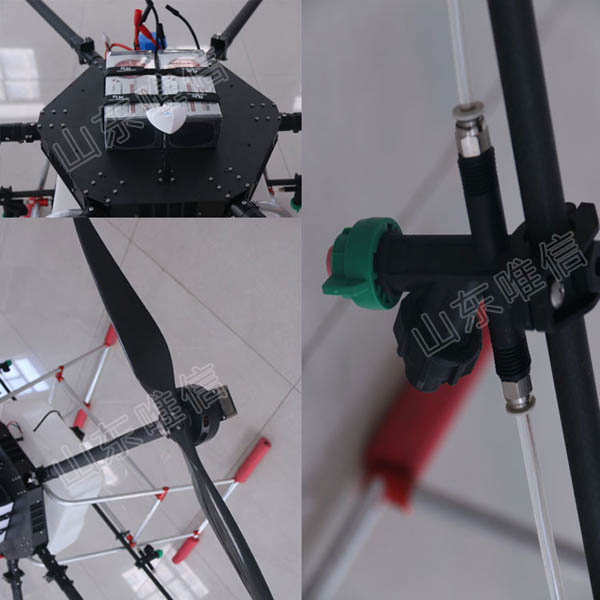

Propeller |
23inch carbon fiber plant protection special propeller |
|
Spraying task system |
1 sets of kit, dispersion spray system, booster pump |
|
Remote control |
2.4G nine channel |
|
Power battery |
High performance lithium polymer lithium battery (22.2V/16000mA) |
|
charger |
High power lithium battery balance charging equipment (can charge 2 pcs at the same time, half an hour full) |
|
UAV self stabilization system |
yes |
|

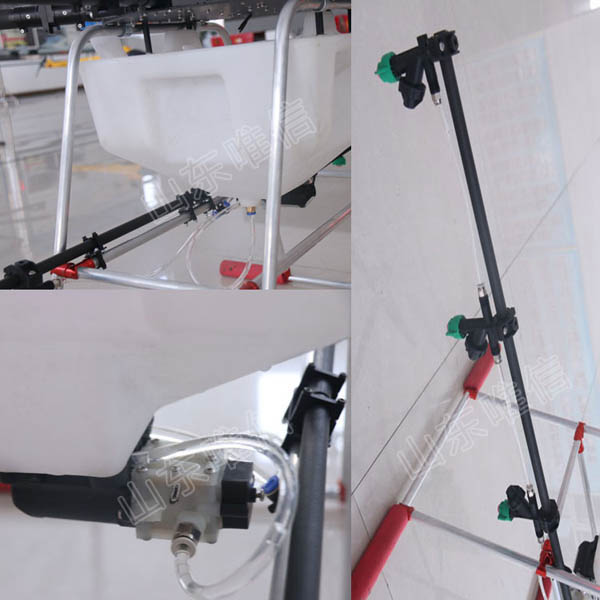

Spraying system |
Diffuse atomization nozzle (a group of *6) |
|
Motor speed |
1200rpm/min |
|
Aircraft endurance time |
10～15 min |
|
Spraying height |
Field operation0.5-4meter |
|
Spraying area |
6meter |
|
Control efficiency |
1～3acre/minute |
|
Spray flow |
0.25-0.75L/min(multi nozzle) adjustable |
|
Flying speed |
0 -8m/sec(can be adjusted according to needed speed) |
|
Flying height |
0～200meter |
|
Hover |
Arbitrary position direction air hover |
|
Flight attitude |
Flying in any direction, can be reversed to fly, emergency brake |
|
Takeoff / landing time |
≤1 minute |
|
Body material |
Carbon fiber |
|
Temperature range |
-15℃～40℃ |
|
Battery power performance |
Charge-discharge 300-500times |
|
Rack life |
≥5year |
|
Maximum efficiency |
200-500acre/day |
