Name: Tree Trimming Machine Engine type: 1E32F Engine displacement (CC): 22.5CC Engine power: 0.7kw/6000rpm Carburetor type: diaphragm Fuel ratio: 1:25 Tank volume (L): 0.6L Working style: sid
Contact Us Product Center

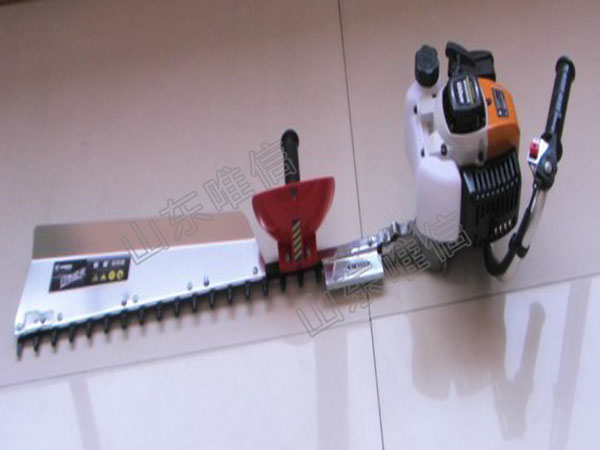

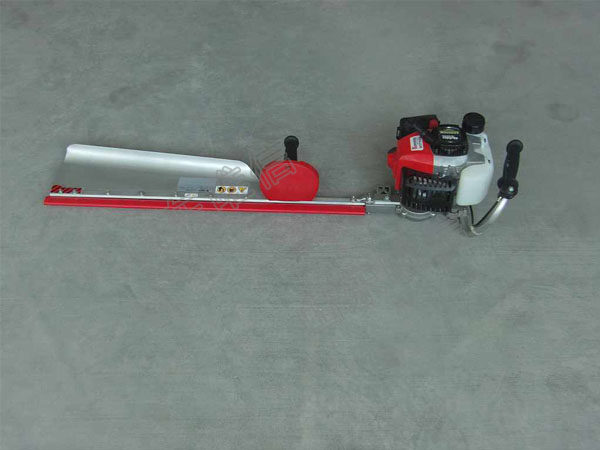

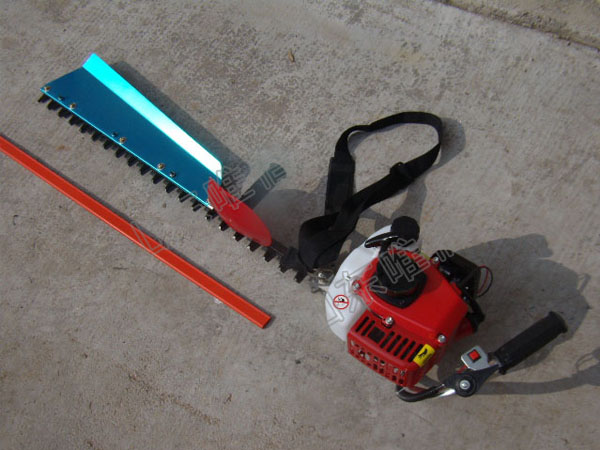

Name: Tree Trimming Machine
Engine type: 1E32F
Engine displacement (CC): 22.5CC
Engine power: 0.7kw/6000rpm
Carburetor type: diaphragm
Fuel ratio: 1:25
Tank volume (L): 0.6L
Working style: side hanging type
Machine weight (kg): 8kg
Blade length: 750mm
Engine type: air-cooled two stroke (gasoline engine)
Key points of Tree Trimming Machine operation :
1, before use, to carefully read the random instructions. And familiar with the mechanical structure and performance, master the switch machine program, blade gap adjustment, precautions and operating essentials.
2, the use of fuel for the machine, the use of 90 gasoline and two-stroke gasoline engine oil, and 25: 1 (the first 20 hours of the new machine 20: 1) volume ratio preparation, mixed even after use. Do not allow the use of alternative gasoline and oil, or change the ratio of gasoline and oil.
3, mechanical start: start a few times before the first hand pump, so that fuel into the carburetor, the air discharge, then the throttle open 1 / 2-1 / 3, the appropriate closure of the throttle, forced to hold the gasoline engine, pull the starting rope. After starting, open the choke, and gradually increase the throttle to its normal operation, began to work.
4, the shutdown, the first throttle placed in low-speed position, and then turn off the gasoline engine. Note that the gasoline engine can not be trimmed at low speed, nor can it stop at high speed to prevent damage to the parts.
5, the use of double trimmer operation, should be based on the height of the people and the high and width of the tree, the machine handle to adjust to the best position, and then machine cut.
6, the operation should pay attention to people, machine safety. Hand and auxiliary staff to work closely with. U-turn, for the non-effective operations such as small throttle, stop the blade operation to prevent wounding. Be sure to stop when you rest. Operation should pay high attention to the tea on the metal and hard objects, should be in the usual or before the removal, so as not to damage the tool.
