Our Single Blade Tea Pruning Machine own Efficient and durable alloy blades. Also flexible hand shank,can rotate 360 degrees. Single Blade Tea Pruning Machine maintenance: 1, the machine before use,
Contact Us Product Center

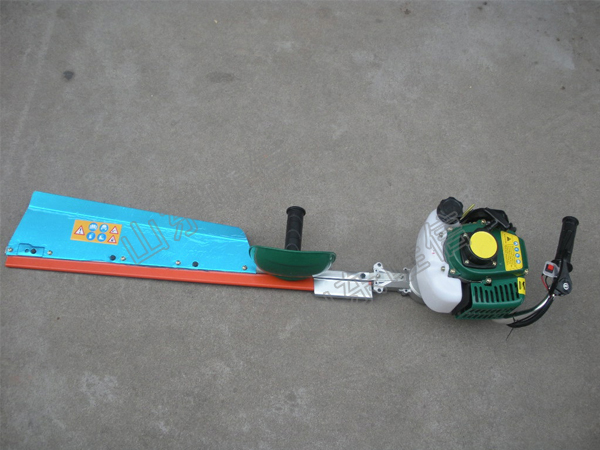

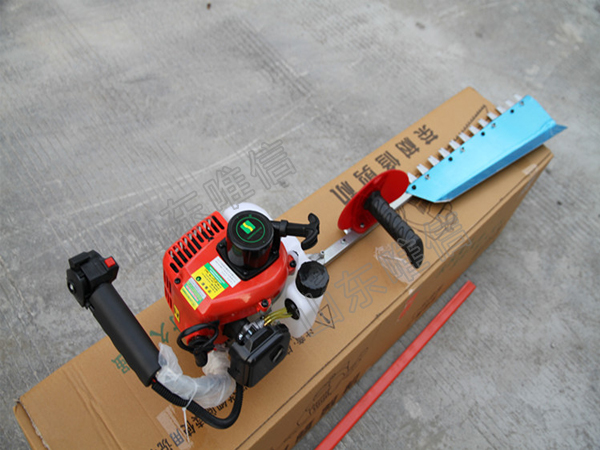

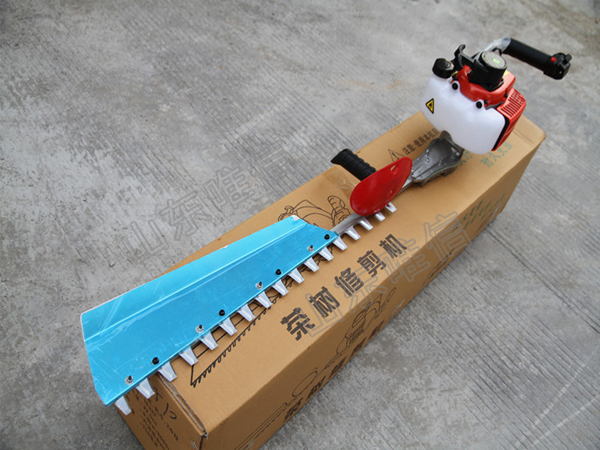

Our Single Blade Tea Pruning Machine own Efficient and durable alloy blades.
Also flexible hand shank,can rotate 360 degrees.
Engine: air-cooled two-stroke IE32F
Use fuel: 25: 1 mixed oil
Displacement: 22.5cc
Horsepower: 1.1HP
Cutting tools: 600MM blade
Fuel tank capacity: 2L
Operation: single blade
Maximum speed: 6,500r / min
Engine idling speed: 2600r / min
Carrying way: push type
Cut off: 75cm
Net weight: 6kg
Single Blade Tea Pruning Machine maintenance: 1, the machine before use, after use and after use of the parts should be carefully checked. Such as the discovery of mechanical damage and fasteners loose, fall off, should be replaced and adjusted. Do not allow the machine to be sick or missing.
2, the blade every 1-2 hours to use oil lubrication once. Each time you use 20-30 hours, add a ZFG-2 compound calcium-based grease to the gearbox once.
3, the maximum pruning pruning diameter should not exceed 10 mm. If the work to cut the thick branches or foreign body, feel the machine sound abnormalities, vibration, should be quickly shut down, discharge foreign body.
4, every 50 hours to use cleaning agent or detergent to clean the air filter sponge, dry, dried. 150 hours after each work to remove the spark plug coke; every 3 months after the replacement of fuel filter once;
5, after use every day, to clean the body, with water to clean the tea on the blade, dry in the oil hole after the injection of oil.
6, long-term parking equipment, should remove the body surface dust, debris. Release fuel tank. Remove the spark plug, remove the coke, the cylinder into a few drops of cleaning oil, light pull a few starter, so that oil lubrication to the cylinder wall. Install the spark plug, packed and placed in a dry place.
