2ZT Series Widely Used Rice Transplanter

2ZT Series Widely Used Rice Transplanter

Date:2015-06-11     Label:

Rice Transplanter

Rice Transplanter Machine

China Rice Transplanter

2ZT series transplanter machine Manual / hydraulic system control cross method Electric start is optional High applicability. The transplanter can be used in the field, where the mud depth is less tha

Contact Us Product Center

Introduction of 2ZT Series Widely Used Rice Transplanter

2ZT series transplanter machine
Manual / hydraulic system control cross method
Electric start is optional
High applicability. The transplanter can be used in the field, where the mud depth is less than 30cm. It is also suitable for flat floor.
Driving type rice transplanter reduced the labor intensity and increased the work efficiency.
Feeding seedlingevenly and reliable, effective sud.
6HP electric start diesel engine, improved the work efficiency increase 25% than manual diesel engine.
Choice of 12-14cm or 12, 14, 16, 19cm transmision box.
Choice od single wheel, double wheel and double wheel reverse gear box
According to agronomic requirements, choice of 300mm or 250mm row to row distance.

Parameter of 2ZT Series Widely Used Rice Transplanter


Model

2ZT-6300B (6rows)

2Z-10238B (10rows)

Dimention:L*W*H ( mm)

2410*2132*1300

2410*2645*1300

Net Weight(kg)

300

410

Diesel Engine Model

175F Manual start

175F Manual start

Diesel Engine Output(kw/HP)

3.72/5

3.6/5

Diesel Engine Rotating Speedr/min)

2600

2200

Number of Transplanting Row

6

10

Row to Row Distance(mm)

300

238

Hill to Hill Distance(mm)

120/140

120140

Transplanting Efficiency(Mu/H)

2--3

3.5-5

Units Per 20ft Container

9

6

Units Per 40ft Container

24

16

packaging size (L*W*H )(mm)

2250*1760*600

2810*1760*650

G.W.(KG)

360

460

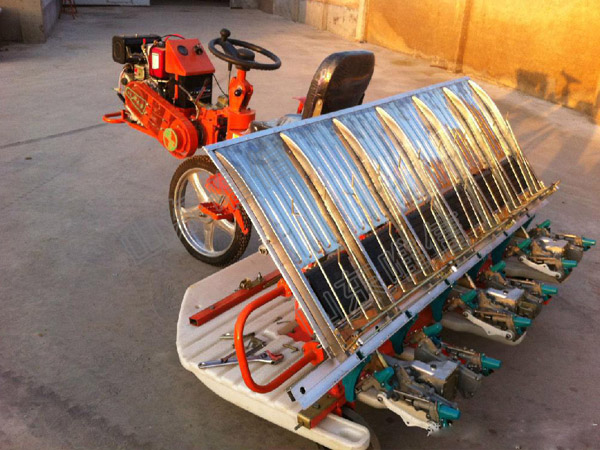

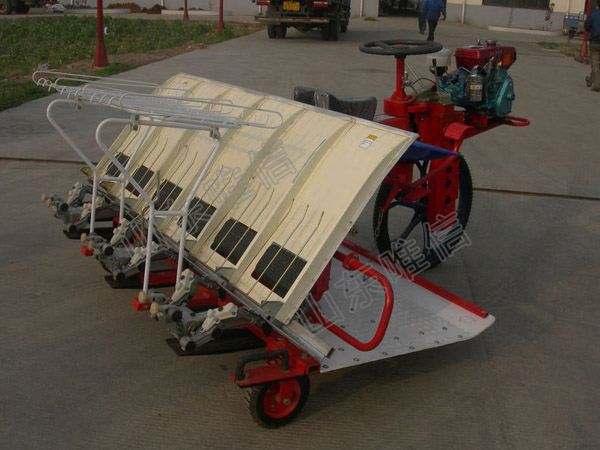

Pictures of 2ZT Series Widely Used Rice Transplanter


2ZT Series Widely Used Rice Transplanter


2ZT Series Widely Used Rice Transplanter

PHOTOS OF

2ZT Series Widely Used Rice Transplanter
