1) The body of Tea Leaf Picking Machine uses the high strength aluminum alloy, achieve the advantages of high strength, light weight. 2) The Tea Leaf Picker has the advantage of light weight and durab
Contact Us Product Center

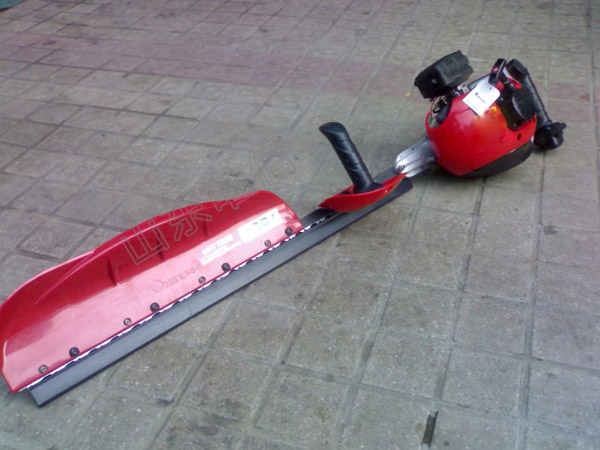

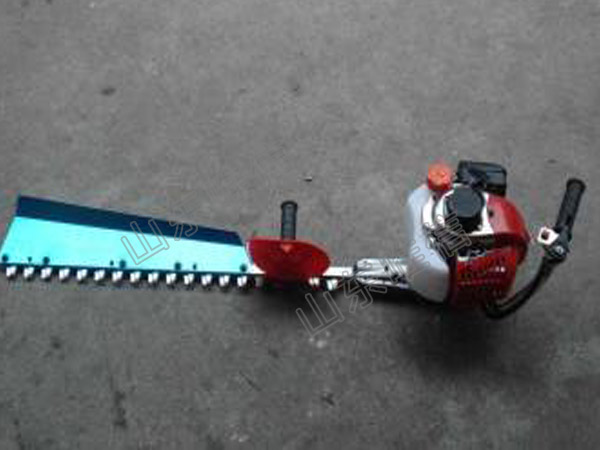

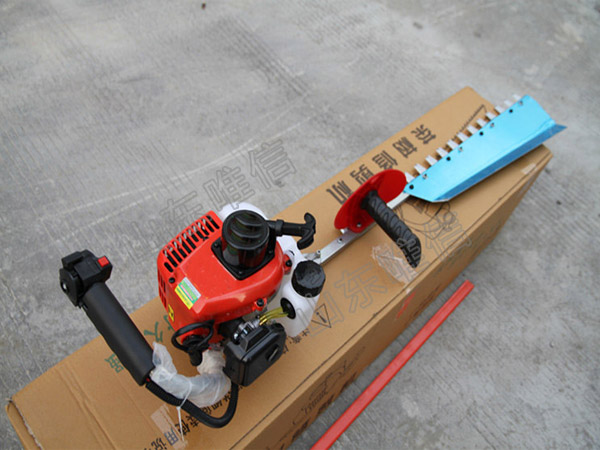

1) The body of tea leaf picking machine uses the high strength aluminum alloy, achieve the advantages of high strength, light weight.
2) The tea leaf picking machine has the advantage of light weight and durable, convenient
operation, low oil consumption, low noise, small vibration, low loss rate.
3) This tea leaf picking machine adopts the patent working head, large air volume, firm structure, high picking efficiency.
4) The air duct and fan adopts imported material, more thick and firm, longer service
Life.
|
Name |
Tea Leaf Picking Machine |
|
Gasoline engine |
1E34F |
|
Displacement |
25.4CC |
|
Rated speed |
7500rpm |
|
Cutting width |
600mm |
|
Dimension |
1000*320*300mm |
|
Net weight |
13.0kg |
|
Driving flexible shaft length |
960mm |
|
Reduction ratio |
4.14 |
|
Knife |
Single-tooth |
|
Transmission way |
The centrifugal friction combiner |
|
Rotate speed |
30m/s(6500rpm) |
|
Clutch combined with speed |
3600~3800rpm |
|
Efficiency |
6-10 times that of human |
|
Package size |
870*310*215mm |
