Factory Ridging Film Mulching Machine

Factory Ridging Film Mulching Machine

[Factory Ridging Film Mulching Machine Tags]

Self Mulching Machine Ridging Film Machine Auto Mulching Machine

[Factory Ridging Film Mulching Machine Quick Detail]

Ridging Film Mulching Machine Can be completed once fertilization, spraying, film Mulching.
Factory Ridging Film Mulching Machine

[Factory Ridging Film Mulching Machine Introduction]

Introduction of Ridging Film Mulching Machine

Ridging Film Mulching Machine Can be completed once fertilization, spraying, film Mulching.

Parameter of Ridging Film Mulching Machine

Model 2MF-110
Supporting power (kW) 17.6-29.4
Structural quality (kg) 175
Dimensions (length × width × height) (mm) 2050 × 1400 × 1300
Operating efficiency (hm2 / h) 0.26-0.4
Working width (mm) 800-1100
Number of web laying (width) 1
Adaptation film width (mm) 800-1100
Fertilization line number (row) 2
Extruder type outer sheave
Number of fat generators (unit) 2
The opener type hoe
Spraying device type diaphragm pump
Spraying device working pressure (kPa) 450
Container capacity (L)
Ground clearance (mm) ≥300
Ground wheel type wheel
Ground wheel diameter (mm) 830
Toe wheel rim width (mm) 100

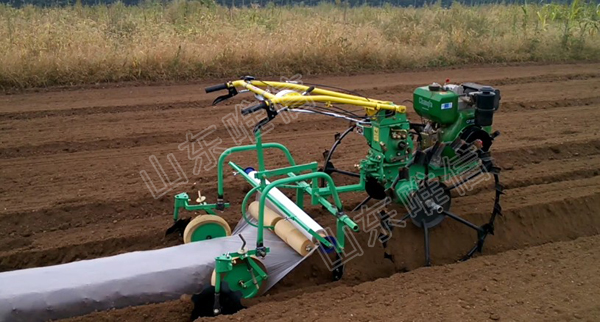

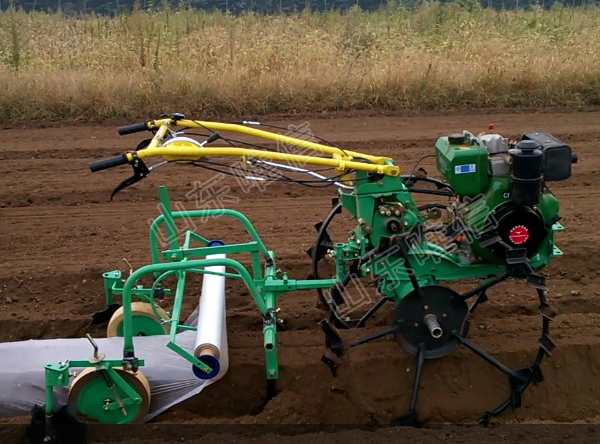

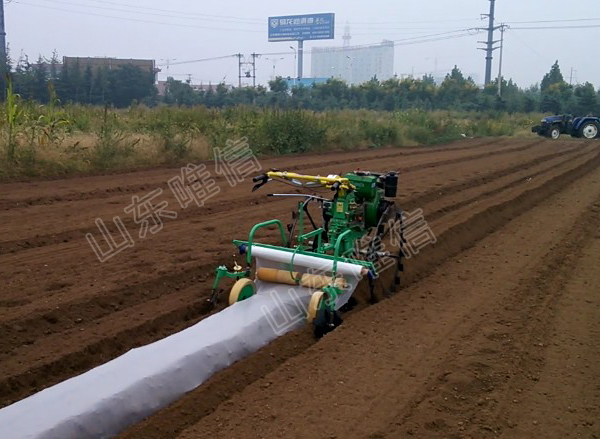

Pictures of Ridging Film Mulching Machine


Ridging Film Mulching Machine


Ridging Film Mulching Machine


Ridging Film Mulching Machine
