Farm Machinery Tractor Hitch Rotavator adopt three-point suspension, making the hook and delivery more convenient . Arbor using a through shaft and disc structure having better strength. The rotary bl
Contact Us Product Center

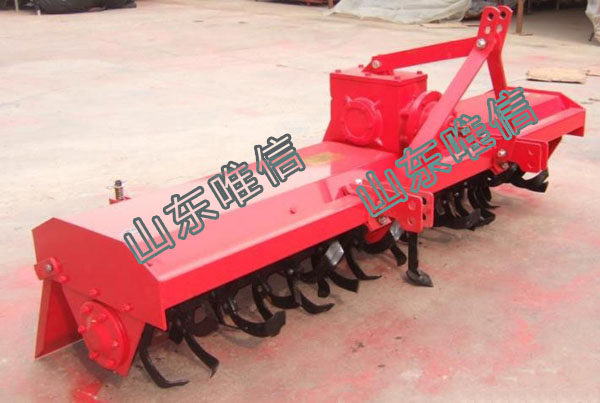

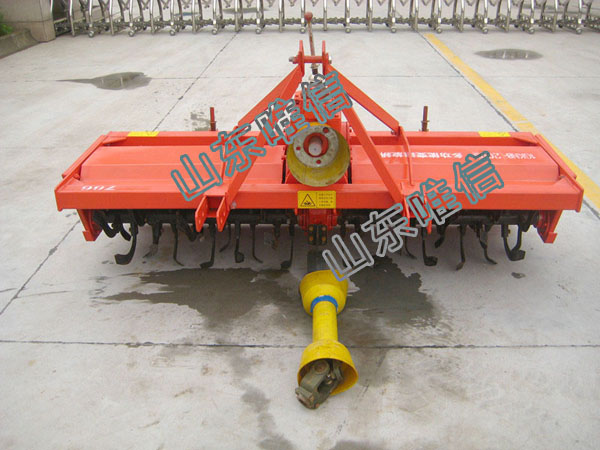

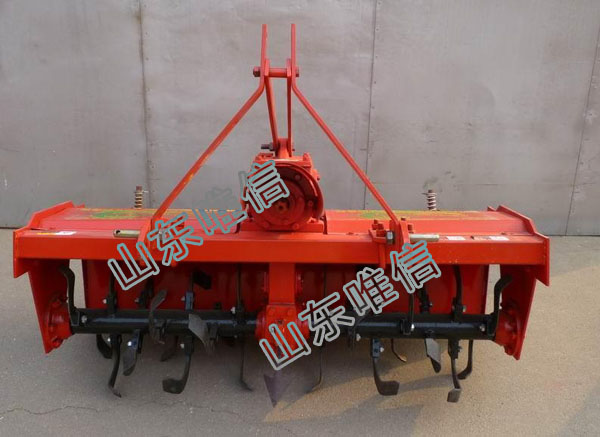

Farm Machinery Tractor Hitch Rotavator adopt three-point suspension, making the hook and delivery more convenient . Arbor using a through shaft and disc structure having better strength. The rotary blade is large and thick which is more wear-resistant. The side gear drive more reliable, do not lose turn and guarantee the even operation. Graders cover plate with spring adjustment pressure, coupled with holster porous and easy height adjustment. The depth plate adopt slider structure which is easy adjustment.
| Type |
ZM-200 |
ZM-230 |
ZM-250 | ZM-300 |
|
Overall dimensions (cm) |
120×232×130 |
120×257×130 | 120×282×130 | 120×332×130 |
|
Structure form |
Three-point suspension | Three-point suspension | Three-point suspension | Three-point suspension |
|
Matched power(kw) |
40-96/55-135 |
52-96/70-135 | 59-96/80-135 | 74-96/100-135 |
|
The work breadth(cm) |
205 |
230 | 250 | 300 |
|
Operating speed(km/h) |
3-5 | 3-5 | 3-5 | 3-5 |
|
Pure work hours production efficiency(hm2/h) |
>0.6 | >0.69 | >0.75 | >0.9 |
|
Rotary tillage blade number |
48 | 54 | 60 | 72 |
|
Spindle speed(n/min) |
130-300 | 130-300 | 130-300 | 130-300 |
|
Rotary knife shaft diameter(mm) |
540 | 540 | 540 | 540 |
|
Transport clearance(mm) |
>300 | >300 | >300 | >300 |
|
Weight (kg) |
755 | 805 | 850 | 950 |
