3WP800-14 Orchard Sprayer Tractor Fruit Tree is developed independently by our company. It is a multipurpose, self-propelled, high ground clearance medium agricultural plant protection machinery. Thi
Contact Us Product Center

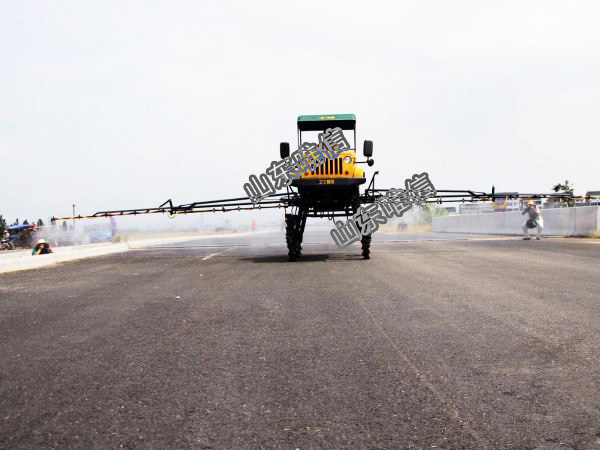

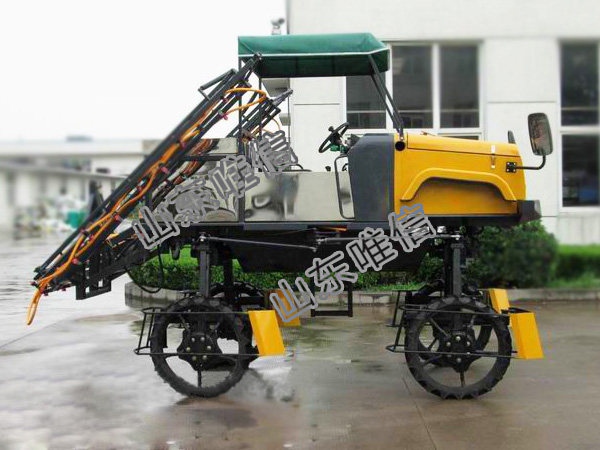

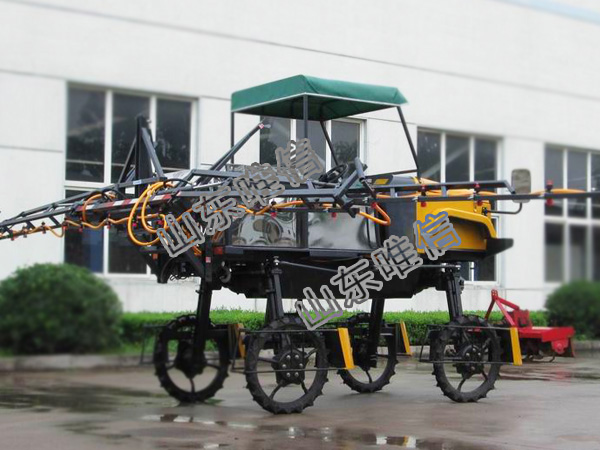

3WP800-14 Orchard Sprayer Tractor Fruit Tree is developed independently by our company. It is a multipurpose, self-propelled, high ground clearance medium agricultural plant protection machinery. This machine adopts the patent technology of drive axle and hydraulic torque converter technology, and has characters of good drive performance, compact structure, convenient operation, flexible steering, high ground clearance and convenient maintenance. It can be widely applicable to soil preparation of paddy field and dry field a variety of crop spraying, fertilizer and other assignments.
|
Model |
Unit |
3WP800-14 |
3WP800-16 |
3WP1000-18 |
||||
|
Type |
|
4×4 |
||||||
|
Dimension |
Length |
mm |
5030 |
5500 |
5500 |
|||
|
|
Width |
mm |
2030 |
|||||
|
Height |
mm |
3440 |
||||||
|
Tread |
mm |
1880 |
||||||
|
Wheelbase |
mm |
2695 |
||||||
|
Tyre |
mm |
|
||||||
|
Deep mud lug tyre for dry and paddy field |
||||||||
|
Ground clearance |
mm |
1070 |
||||||
|
Depth in muddy field |
m |
≤0.4， |
||||||
|
instantaneous single tyre≤0.5 |
||||||||
|
Structure weight |
kg |
2990 |
2995 |
3010 |
||||
|
Max. operate weight |
kg |
3950 |
3955 |
4170 |
||||
|
Theoretical running speed |
Forward |
km/h |
7.57，19.08 |
|||||
|
Reverse |
km/h |
7.57，19.08 |
||||||
|
Min. Steering radius |
m |
7.2±0.3 |
||||||
|
Spray width |
m |
14（ add side-blown to reach 18） |
16 |
18 |
||||
|
Liquid tank capacity |
L |
800 |
1000 |
|||||
|
Pump displacement |
L/min |
130 |
||||||
|
Water suction pump |
|
Independent 1 inch patrol engine |
||||||
|
Cabin or canopy |
|
Option |
||||||
|
A/C (for cabin) |
|
Option |
||||||
|
|
Type |
|
|
|||||
|
Steering System |
Independent oil, full hydraulic steering |
|||||||
|
|
Steering pump |
|
HLCB-D08/06 |
|||||
|
|
Constant current flood pump |
|||||||
|
|
|
|
BZZ-160 |
|||||
|
|
Steering machine |
|
Full hydraulic steering |
|||||
|
Hydraulic lifting pump |
|
CBN-E304 Turning left |
||||||
|
|
|
MPa |
0.3～0.5 |
|||||
|
Spray system |
Rated working pressure |
|||||||
|
|
Safety valve open pressure |
MPa |
0.6 |
|||||
|
|
Spray nozzle |
|
ST/SC110-04 |
|||||
|
Electric system |
Voltage system |
V |
Single line |
|||||
|
Minus earth |
||||||||
|
Battery |
|
6-QA-120 |
||||||
|
Maintenance-free lead-add battery |
||||||||
